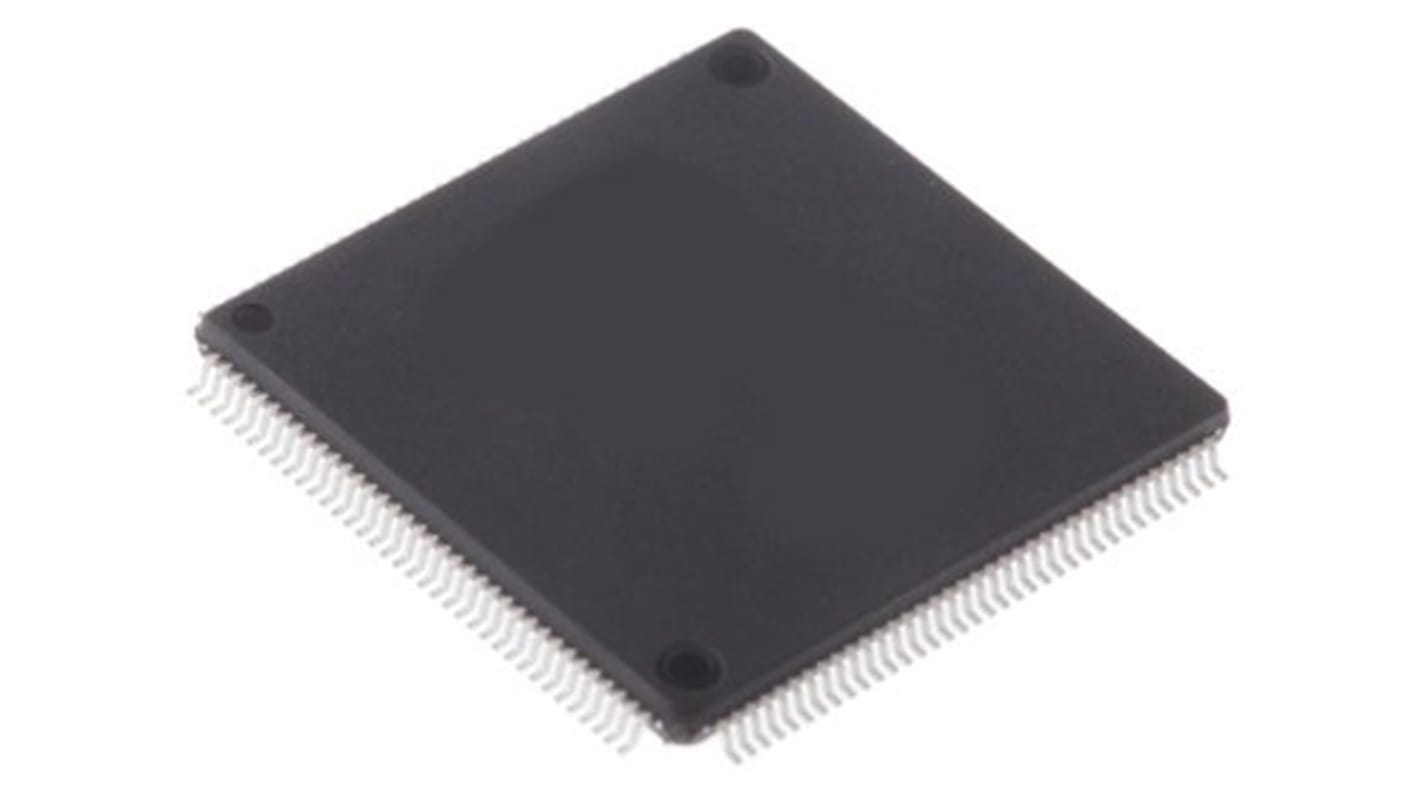

STMicroelectronics, 32bit ARM Cortex M4, STM32L4 Microcontroller, 120MHz, 2 MB Flash, 144-Pin LQFP

RS Stock No.:: 175-0731
Mfr. Part No.:: STM32L4S9ZIT6
Brand:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M4, STM32L4 Microcontroller, 120MHz, 2 MB Flash, 144-Pin LQFP

Bulk discount available

Subtotal (1 tray of 60 units)*

£613.20

(exc. VAT)

£735.60

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Tray*
60 - 60	£10.22	£613.20
120 - 180	£9.007	£540.42
240 - 420	£8.568	£514.08
480 - 960	£8.007	£480.42
1020 +	£7.446	£446.76

*price indicative

RS Stock No.:: 175-0731
Mfr. Part No.:: STM32L4S9ZIT6
Brand:: STMicroelectronics

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Family Name	STM32L4
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	144
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	2 MB
	Maximum Frequency	120MHz
	RAM Size	640 kB
	USB Channels	1
	Number of PWM Units	2 x 16 bit
	Number of SPI Channels	3
	Number of I2C Channels	4
	Typical Operating Supply Voltage	3.6 (Maximum) V
	Number of USART Channels	3
	Number of CAN Channels	1
	Number of UART Channels	6
	Height	1.45mm
	Width	20.2mm
	Dimensions	20.2 x 20.2 x 1.45mm
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+85 °C
	Instruction Set Architecture	DSP, RISC
	Pulse Width Modulation	2 (6 x 16 bit)
	Number of ADC Units	1
	Length	20.2mm
	ADCs	16 x 12 bit
	Program Memory Type	Flash

	Select all
	Brand STMicroelectronics
	Family Name STM32L4
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 144
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 2 MB
	Maximum Frequency 120MHz
	RAM Size 640 kB
	USB Channels 1
	Number of PWM Units 2 x 16 bit
	Number of SPI Channels 3
	Number of I2C Channels 4
	Typical Operating Supply Voltage 3.6 (Maximum) V
	Number of USART Channels 3
	Number of CAN Channels 1
	Number of UART Channels 6
	Height 1.45mm
	Width 20.2mm
	Dimensions 20.2 x 20.2 x 1.45mm
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +85 °C
	Instruction Set Architecture DSP, RISC
	Pulse Width Modulation 2 (6 x 16 bit)
	Number of ADC Units 1
	Length 20.2mm
	ADCs 16 x 12 bit
	Program Memory Type Flash

Datasheet

COO (Country of Origin):: PH

The STM32L4S5xx, STM32L4S7xx and STM32L4S9xx devices are an ultra-low-power microcontrollers family (STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz.
The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.
