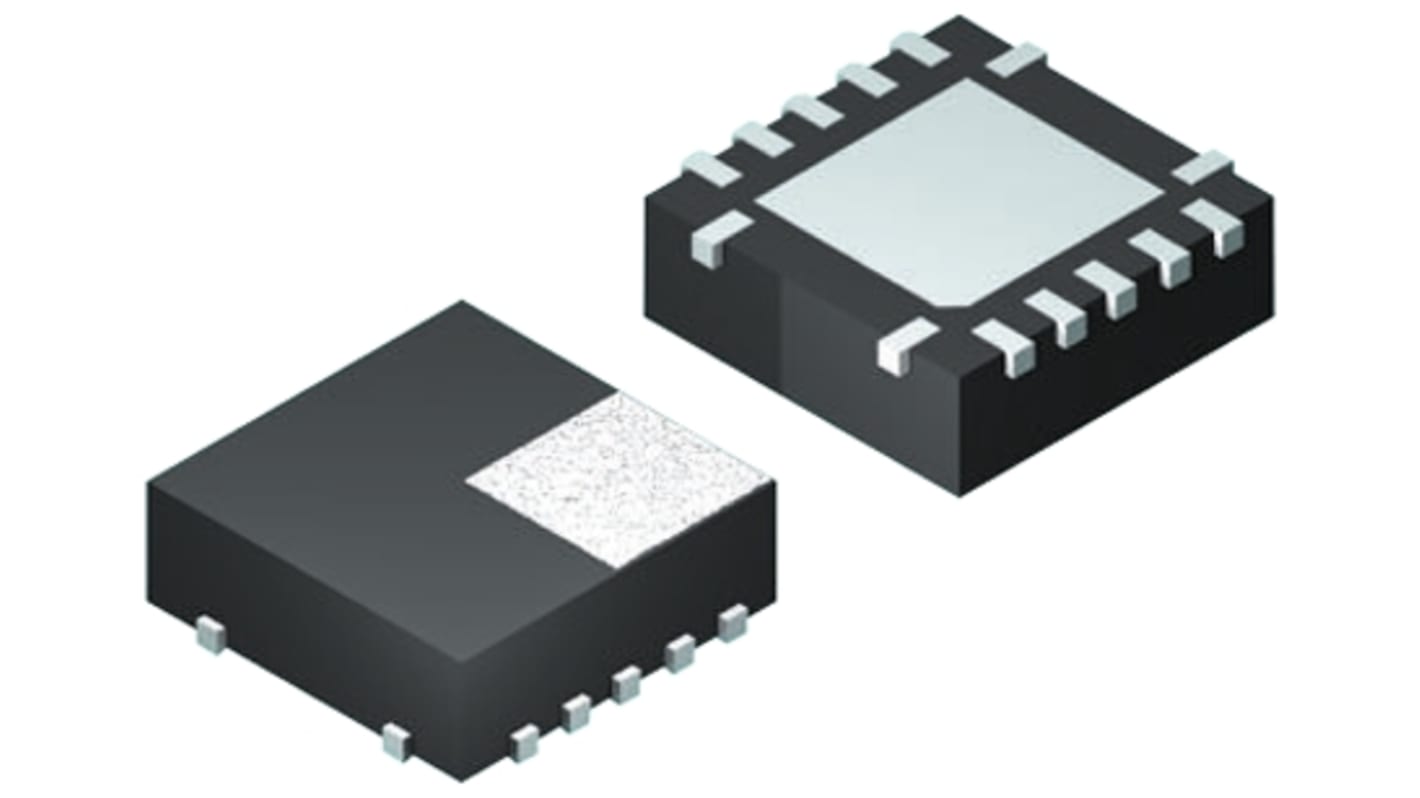

Silicon Labs, 8bit 8051, C8051T Microcontroller, 25MHz, 2 kB Flash, 11-Pin QFN
- RS Stock No.:
- 169-0142
- Mfr. Part No.:
- C8051T605-GM
- Brand:
- Silicon Labs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 169-0142
- Mfr. Part No.:
- C8051T605-GM
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | C8051T | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 11 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 2 kB | |
| Maximum Frequency | 25MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 0 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 3 V | |
| Number of USART Channels | 0 | |
| Number of LIN Channels | 0 | |
| Length | 3mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Number of PCI Channels | 0 | |
| Dimensions | 3 x 3 x 0.89mm | |
| Instruction Set Architecture | Pipelined | |
| Minimum Operating Temperature | -40 °C | |
| Height | 0.89mm | |
| Pulse Width Modulation | 1 (3 x 16 bit) | |
| Width | 3mm | |
| Program Memory Type | Flash | |
Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Family Name C8051T | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 11 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 2 kB | ||
Maximum Frequency 25MHz | ||
RAM Size 256 B | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 0 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 3 V | ||
Number of USART Channels 0 | ||
Number of LIN Channels 0 | ||
Length 3mm | ||
Maximum Number of Ethernet Channels 0 | ||
Number of Ethernet Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Number of PCI Channels 0 | ||
Dimensions 3 x 3 x 0.89mm | ||
Instruction Set Architecture Pipelined | ||
Minimum Operating Temperature -40 °C | ||
Height 0.89mm | ||
Pulse Width Modulation 1 (3 x 16 bit) | ||
Width 3mm | ||
Program Memory Type Flash | ||
- COO (Country of Origin):
- MY
C8051Txxx Microcontollers, Silicon Labs
C8051Txxx family of OTP EEPROM microcontrollers (MCUs).
