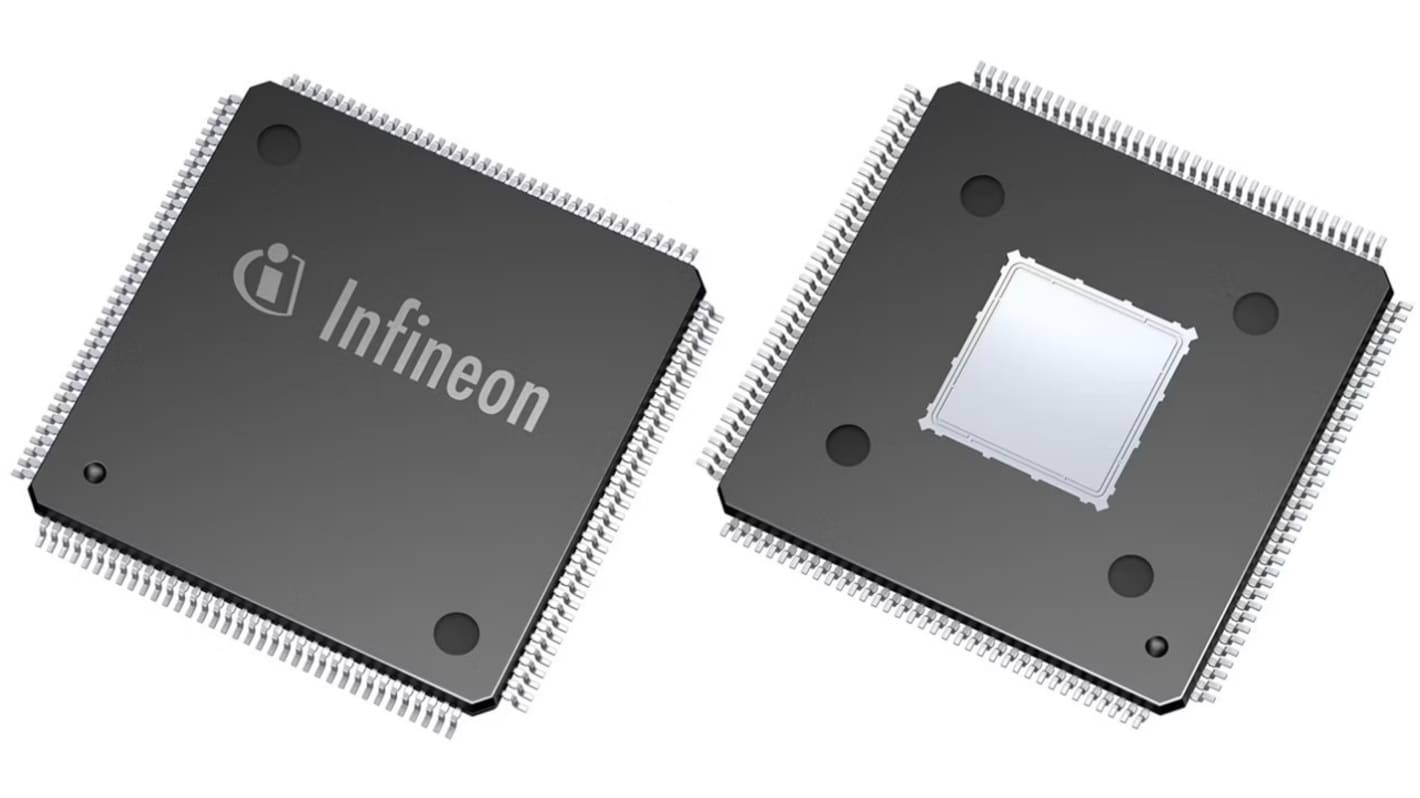

Infineon, 32 bit ARM Cortex M4, XMC4500 Microcontroller, 120 MHz, 1024kB FLASH, 144-Pin LQFP

View all Microcontrollers

Subtotal (1 tray of 360 units)*

£2,530.80

(exc. VAT)

£3,038.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 360 unit(s) shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
360 +£7.03£2,530.80

*price indicative

RS Stock No.:
166-0842
Mfr. Part No.:
XMC4500F144F1024ACXQMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Series

XMC4500

Product Type

Microcontroller

Package Type

LQFP

Mount Type

Surface

Pin Count

144

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

1024kB

Maximum Clock Frequency

120MHz

RAM Size

160kB

Maximum Supply Voltage

3.3V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

20mm

Width

20 mm

Height

1.4mm

Standards/Approvals

No

Number of Programmable I/Os

91

Maximum Power Dissipation Pd

1W

DACs

2 x 12 Bit

Minimum Supply Voltage

1.3V

Instruction Set Architecture

DSP, MAC

Automotive Standard

No

Number of Timers

26

Program Memory Type

FLASH

ADCs

8 x 12 Bit

COO (Country of Origin):
MY

Infineon Microcontroller, 1.024MB Program Memory, ARM Cortex M4 Core - XMC4500F144F1024ACXQMA1


This microcontroller is designed for demanding industrial applications. Featuring a robust ARM Cortex M4 core, it operates at frequencies of up to 120 MHz with 1.024 MB of programmable flash memory. The Compact surface mount design measures 20mm x 20mm x 1.4mm, making it suitable for applications requiring efficient space utilisation.

Features & Benefits


• ARM Cortex M4 core ensures high performance and energy efficiency

• 1.024 MB flash memory allows extensive programming capabilities

• Supports multiple CAN channels for flexible industrial communication

• Integrated USB functionality facilitates straightforward connectivity

• Operates effectively across an industrial temperature range of -40°C to +85°C

• Four ADCs enhance signal processing capabilities in a Compact design

Applications


• Used for complex motor control systems

• Ideal for industrial automation requiring robust connectivity

• Applicable in power conversion setups for efficient energy management

• Facilitates precise sensing and control solutions across various devices

What voltage levels are compatible with the microcontroller?


The typical operating supply voltage is 1.3 V for the core and 3.3 V for digital functionality, ensuring compatibility with standard logic levels.

How does this device handle communications in industrial environments?


It supports up to three CAN channels, making it efficient for real-time communication in automotive and industrial applications where data integrity is critical.

What are the specifications for the analog-to-digital conversion capabilities?


The microcontroller features four 12-bit ADCs with a 100 Mbps data rate, suitable for precise measurements in real-time applications.

Can this microcontroller operate in extreme temperatures?


Yes, it operates reliably within an industrial temperature range from -40°C to +85°C, suitable for harsh environments.
