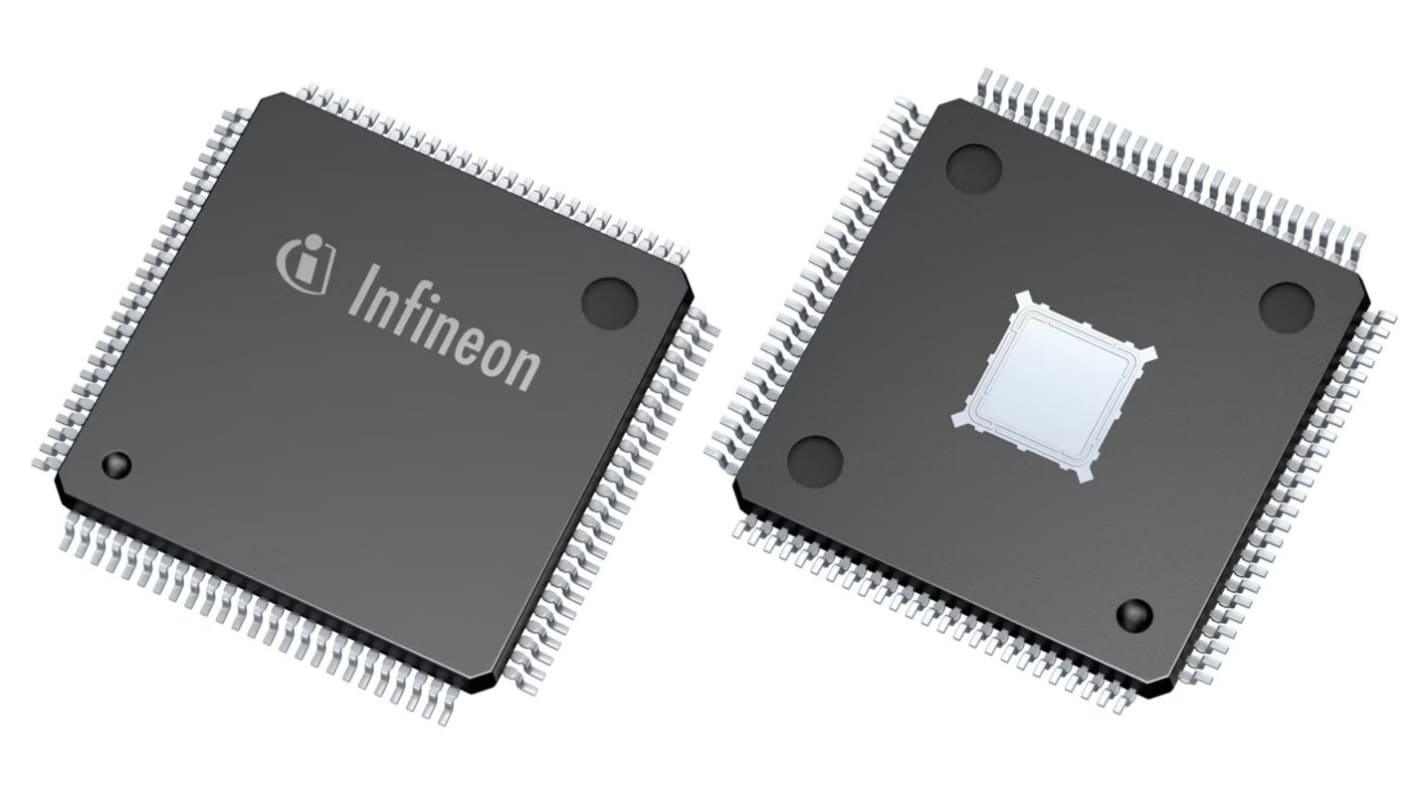

Infineon XMC4500F100K1024ACXQSA1, 32 bit ARM Cortex M4, XMC4500 Microcontroller, 120 MHz, 1024kB FLASH, 100-Pin LQFP

RS Stock No.:: 914-0069
Mfr. Part No.:: XMC4500F100K1024ACXQSA1
Brand:: Infineon

Infineon XMC4500F100K1024ACXQSA1, 32 bit ARM Cortex M4, XMC4500 Microcontroller, 120 MHz, 1024kB FLASH, 100-Pin LQFP

Bulk discount available

Subtotal (1 unit)*

£11.19

(exc. VAT)

£13.43

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

57 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£11.19
5 - 9	£10.05
10 - 24	£9.66
25 +	£9.30

*price indicative

RS Stock No.:: 914-0069
Mfr. Part No.:: XMC4500F100K1024ACXQSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Series	XMC4500
	Product Type	Microcontroller
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	100
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1024kB
	Maximum Clock Frequency	120MHz
	RAM Size	160kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	DACs	2 x 12 Bit
	Height	1.5mm
	Length	14mm
	Width	14 mm
	Maximum Power Dissipation Pd	1W
	Number of Programmable I/Os	55
	Minimum Supply Voltage	3.13V
	ADCs	24 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	DSP, MAC
	Program Memory Type	FLASH
	Number of Timers	4

	Select all
	Brand Infineon
	Series XMC4500
	Product Type Microcontroller
	Package Type LQFP
	Mount Type Surface
	Pin Count 100
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1024kB
	Maximum Clock Frequency 120MHz
	RAM Size 160kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	DACs 2 x 12 Bit
	Height 1.5mm
	Length 14mm
	Width 14 mm
	Maximum Power Dissipation Pd 1W
	Number of Programmable I/Os 55
	Minimum Supply Voltage 3.13V
	ADCs 24 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture DSP, MAC
	Program Memory Type FLASH
	Number of Timers 4

Infineon Microcontroller, 1.024MB Program Memory size, 120MHz Maximum Frequency - XMC4500F100K1024ACXQSA1

This microcontroller is powered by the ARM Cortex M4 core. The Compact design, measuring 14 x 14 x 1.5mm, offers robust performance in a surface mount package, making it Ideal for a variety of applications requiring a reliable and energy-efficient solution.

Features & Benefits

• 1.024 MB flash memory for ample programme storage

• Operates at a maximum frequency of 120 MHz for swift processing

• Incorporates 160 kB RAM for efficient data handling

• Supports up to 3 CAN channels for robust industrial communication

• One USB channel enables straightforward connectivity

• Wide operating temperature range from -40 °C to +125 °C ensures versatility

Applications

• Utilised in industrial automation for system control

• Suitable for power conversion requiring precision

• Effective for sensor control and data acquisition tasks

• Employed in necessitating reliable communication systems

• Ideal for embedded in harsh environments

What are the power supply requirements for optimal operation?

The typical operating supply voltage ranges from 1.3V to 3.3V, ensuring compatibility with various systems.

How does the temperature range influence the performance?

The microcontroller operates effectively in extreme conditions, from -40 °C to +125 °C, allowing usage in demanding environments without compromising functionality.

What advantages does this product offer for communication protocols?

The inclusion of multiple CAN channels ensures reliable messaging and higher data integrity for complex industrial networks.

Can this microcontroller support complex algorithms?

Yes, the 32-bit architecture and high frequency enable it to run intricate algorithms, making it suitable for embedded control applications.
