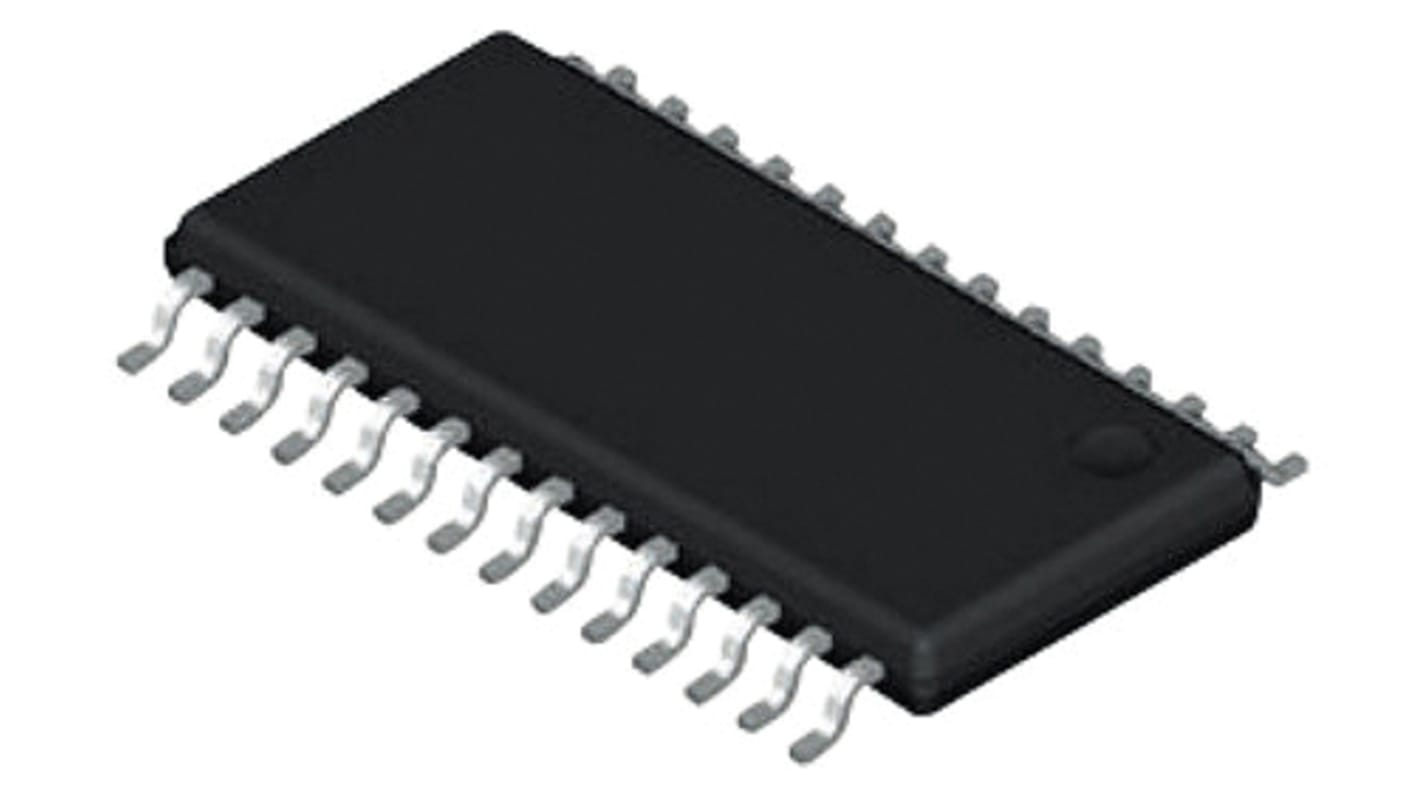

Texas Instruments MSP430G2533IPW28, 16bit MSP430 Microcontroller, MSP430, 16MHz, 16 kB Flash, 28-Pin TSSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

MSP430G2x Ultra-Low-Power Microcontrollers, Texas Instruments

The MSP430G2xx - Value Line Series have a 16MHz CPU delivering ultra-low power performance, but providing low cost options for your design.

Up to 16MHz CPU speed
1.8 to 3.6V operation
Up to 56KB Flash memory
Wide range of high-performance peripherals
Some lines feature the unique capacitive touch sense IO ports
0.1μA RAM retention
0.4μA Standby mode
220μA per MHz active
Ultra-Fast Wake-Up from Standby Mode in < 1μs

MSP430 Microcontrollers, Texas Instruments

The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.

Specifications
Attribute Value
Family Name MSP430
Package Type TSSOP
Mounting Type Surface Mount
Pin Count 28
Device Core MSP430
Data Bus Width 16bit
Program Memory Size 16 kB
Maximum Frequency 16MHz
RAM Size 512 B
ADC Channels 8
Number of SPI Channels 2
Typical Operating Supply Voltage 1.8 → 3.6 V
Number of LIN Channels 1
Number of Timers 2
Program Memory Type Flash
Maximum Operating Temperature +85 °C
Height 1.05mm
Number of I2C Channels 1
Minimum Operating Temperature -40 °C
ADC Resolution 10bit
Instruction Set Architecture RISC
Dimensions 9.8 x 4.5 x 1.05mm
Length 9.8mm
Number of UART Channels 1
Timer Resolution 16bit
Number of ADC Units 1
Timers 2 x 16 bit
Width 4.5mm
ADCs 1 (8 x 10 bit)
Price Each (In a Tube of 50)
£ 1.416
(exc. VAT)
£ 1.699
(inc. VAT)
Units
Per unit
Per Tube*
50 - 200
£1.416
£70.80
250 - 450
£1.275
£63.75
500 - 1200
£1.147
£57.35
1250 - 2450
£1.032
£51.60
2500 +
£0.984
£49.20
*price indicative
