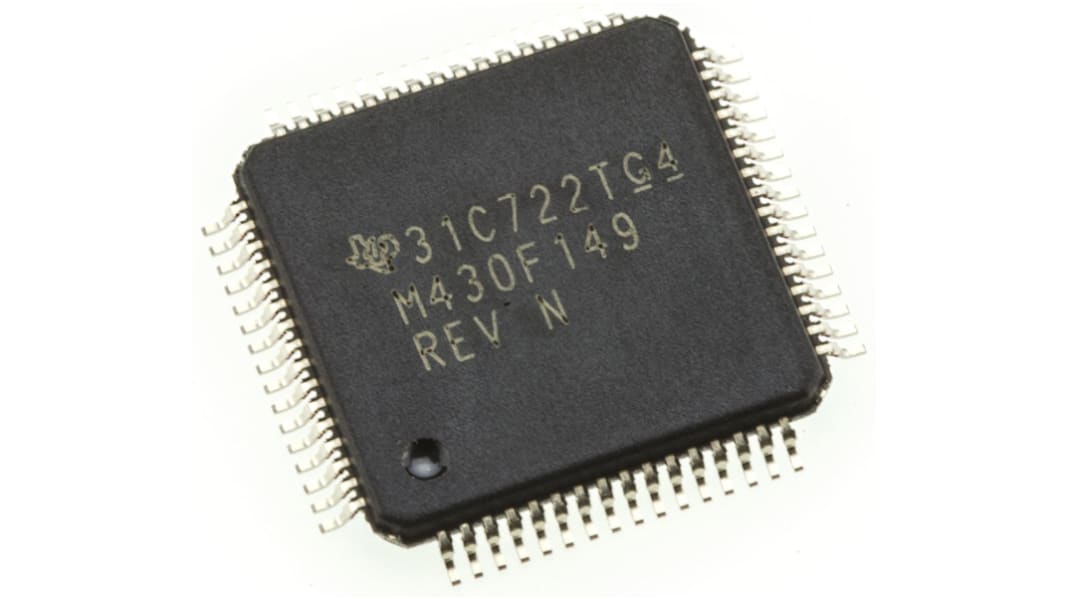

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 8MHz, 60 kB, 256 B Flash, 64-Pin TQFP
- RS Stock No.:
- 162-4240
- Mfr. Part No.:
- MSP430F149IPAG
- Brand:
- Texas Instruments
- RS Stock No.:
- 162-4240
- Mfr. Part No.:
- MSP430F149IPAG
- Brand:
- Texas Instruments
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Family Name | MSP430 | |
Package Type | TQFP | |
Mounting Type | Surface Mount | |
Pin Count | 64 | |
Device Core | MSP430 | |
Data Bus Width | 16bit | |
Program Memory Size | 60 kB, 256 B | |
Maximum Frequency | 8MHz | |
RAM Size | 2 kB | |
USB Channels | 0 | |
Number of PWM Units | 2 | |
Number of SPI Channels | 2 | |
Number of USART Channels | 2 | |
Number of CAN Channels | 0 | |
Number of I2C Channels | 0 | |
Typical Operating Supply Voltage | 1.8 → 3.6 V | |
Number of UART Channels | 2 | |
Pulse Width Modulation | 3 x 16 bit, 7 x 16 bit | |
Dimensions | 10.2 x 10.2 x 1.05mm | |
Number of LIN Channels | 0 | |
ADCs | 8 x 12 bit | |
Length | 10.2mm | |
Maximum Operating Temperature | +85 °C | |
Height | 1.05mm | |
Number of Ethernet Channels | 0 | |
Number of ADC Units | 1 | |
Number of PCI Channels | 0 | |
Width | 10.2mm | |
Maximum Number of Ethernet Channels | 0 | |
Minimum Operating Temperature | -40 °C | |
Instruction Set Architecture | RISC | |
Program Memory Type | Flash | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Family Name MSP430 | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core MSP430 | ||
Data Bus Width 16bit | ||
Program Memory Size 60 kB, 256 B | ||
Maximum Frequency 8MHz | ||
RAM Size 2 kB | ||
USB Channels 0 | ||
Number of PWM Units 2 | ||
Number of SPI Channels 2 | ||
Number of USART Channels 2 | ||
Number of CAN Channels 0 | ||
Number of I2C Channels 0 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Number of UART Channels 2 | ||
Pulse Width Modulation 3 x 16 bit, 7 x 16 bit | ||
Dimensions 10.2 x 10.2 x 1.05mm | ||
Number of LIN Channels 0 | ||
ADCs 8 x 12 bit | ||
Length 10.2mm | ||
Maximum Operating Temperature +85 °C | ||
Height 1.05mm | ||
Number of Ethernet Channels 0 | ||
Number of ADC Units 1 | ||
Number of PCI Channels 0 | ||
Width 10.2mm | ||
Maximum Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
MSP430F1x Ultra-Low-Power Microcontrollers, Texas Instruments
1.8 to 3.6V operation
Up to 60KB Flash
Up to 10KB RAM
Wide range of high-performance analogue and intelligent digital peripherals
5 ultra-low power modes of operation
0.1μA RAM retention
0.7μA real-time clock mode
200μA per MHz active
Fast Wake-Up From Standby Mode in < 6μs
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
