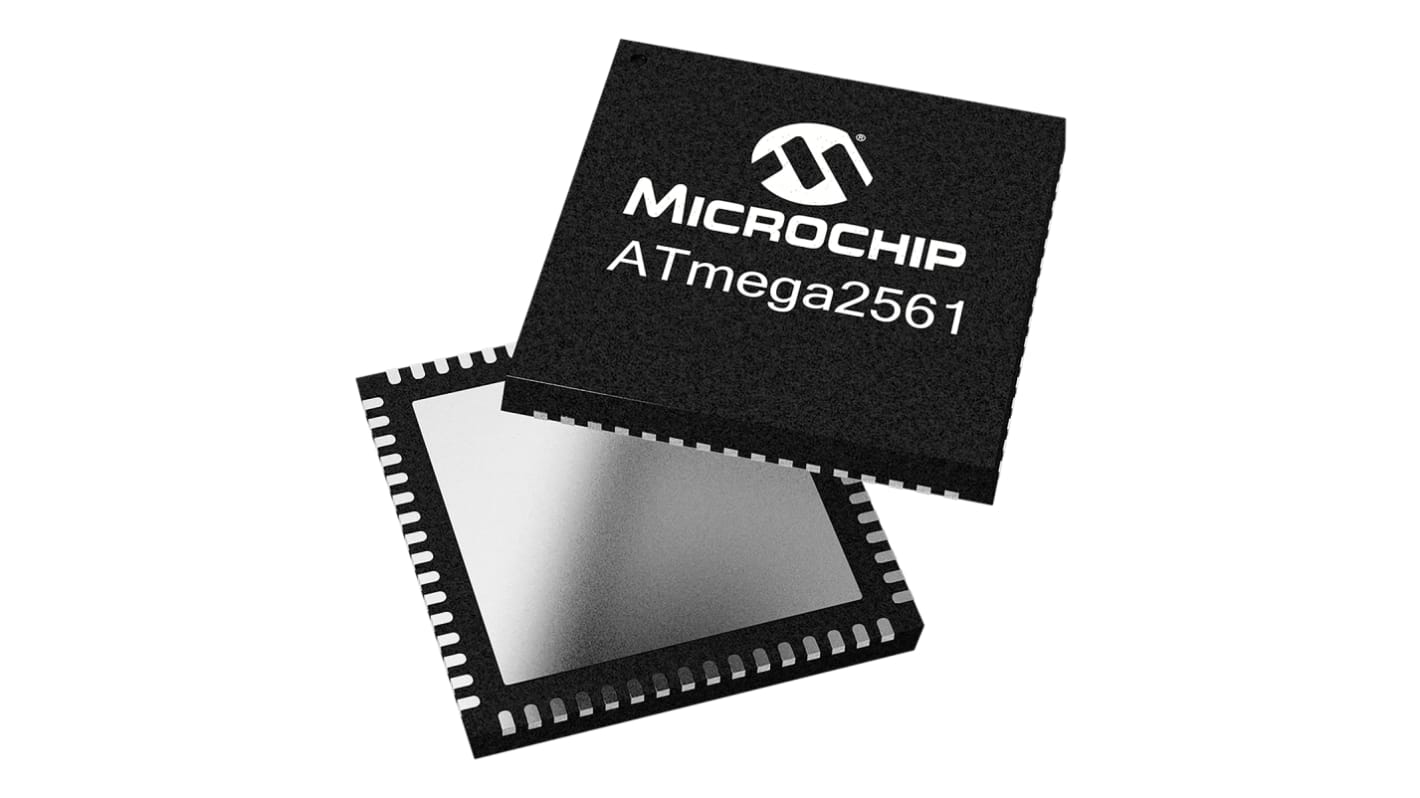

Microchip ATMEGA2561-16MU, 8bit AVR Microcontroller, ATmega, 16MHz, 256 kB Flash, 64-Pin VQFN

RS Stock No.:: 127-8287P
Mfr. Part No.:: ATMEGA2561-16MU
Brand:: Microchip

Microchip ATMEGA2561-16MU, 8bit AVR Microcontroller, ATmega, 16MHz, 256 kB Flash, 64-Pin VQFN

Bulk discount available

Subtotal (25 trays of 1 unit)**

£296.25

(exc. VAT)

£355.50

(inc. VAT)

Available to back order for despatch 19/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
25 - 99	£11.85
100 +	£11.42

**price indicative

RS Stock No.:: 127-8287P
Mfr. Part No.:: ATMEGA2561-16MU
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATmega
Package Type	VQFN
Mounting Type	Surface Mount
Pin Count	64
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	256 kB
Maximum Frequency	16MHz
RAM Size	8 kB
USB Channels	0
Number of PWM Units	2 x 8/16 bit
Number of SPI Channels	3
Number of USART Channels	2
Number of I2C Channels	1
Number of UART Channels	2
Number of CAN Channels	0
Typical Operating Supply Voltage	2.7 → 5.5 V
Minimum Operating Temperature	-40 °C
Number of PCI Channels	0
Number of Ethernet Channels	0
Height	0.95mm
Number of ADC Units	1
Dimensions	9.1 x 9.1 x 0.95mm
Maximum Operating Temperature	+85 °C
ADCs	8 x 10 bit
Maximum Number of Ethernet Channels	0
Pulse Width Modulation	1 (4 x 8 bit), 1 (6 x 16 bit)
Width	9.1mm
Program Memory Type	Flash
Length	9.1mm
Number of LIN Channels	0
Instruction Set Architecture	RISC

Microchip ATMEGA2561-16MU, 8bit AVR Microcontroller, ATmega, 16MHz, 256 kB Flash, 64-Pin VQFN

FREE delivery for orders over £50.00

8-Bit megaAVR Microcontrollers, 32KB to 256KB Flash
