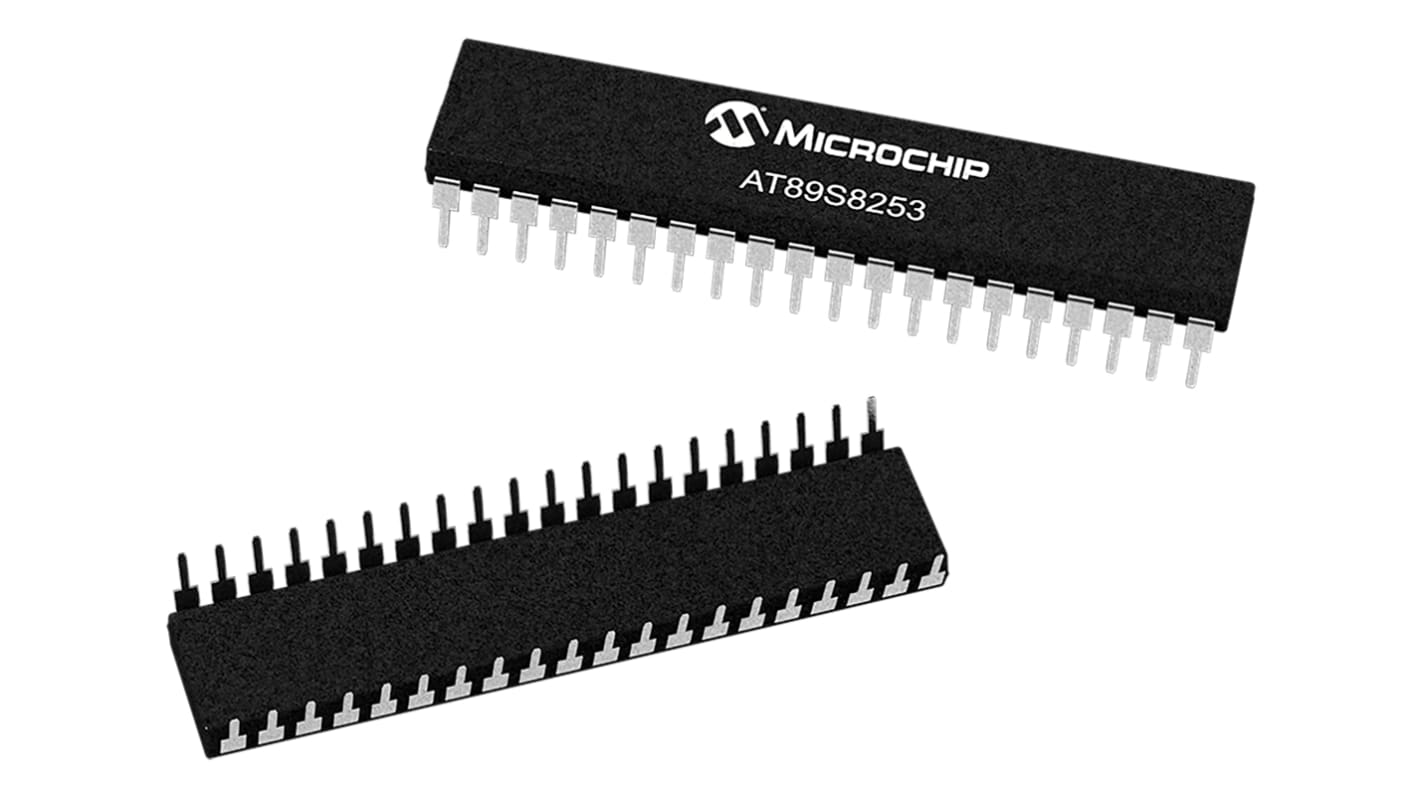

Microchip AT89S8253-24PU, 8bit 8051 Microcontroller, AT89, 24MHz, 12 kB Flash, 40-Pin PDIP
- RS Stock No.:
- 127-8157
- Mfr. Part No.:
- AT89S8253-24PU
- Brand:
- Microchip
224 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£3.56
(exc. VAT)
£4.27
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £3.56 | £17.80 |
25 - 95 | £3.454 | £17.27 |
100 + | £3.33 | £16.65 |
*price indicative
- RS Stock No.:
- 127-8157
- Mfr. Part No.:
- AT89S8253-24PU
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
8051 Architecture Flash ISP (In-System Programmable) Microcontrollers, Atmel
Atmel offers Flash 8051 microcontrollers featuring In-System Programming (ISP) that they can be programmed with the appropriate software, either in parallel or in serial mode.
8051 Architecture Microcontrollers
Atmel's 8-bit microcontrollers (MCUs) based on the 8051 instruction set, combine proven technology with the latest features and functionality, with all featuring advanced flash memory.
Device Family
Single Cycle Core
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Specifications
Attribute | Value |
---|---|
Family Name | AT89 |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 40 |
Device Core | 8051 |
Data Bus Width | 8bit |
Program Memory Size | 12 kB |
Maximum Frequency | 24MHz |
RAM Size | 256 B |
USB Channels | 0 |
Number of PWM Units | 0 |
Number of SPI Channels | 1 |
Number of UART Channels | 1 |
Number of I2C Channels | 0 |
Number of CAN Channels | 0 |
Typical Operating Supply Voltage | 2.7 → 5.5 V |
Dimensions | 52.57 x 13.97 x 4.44mm |
Width | 13.97mm |
Height | 4.44mm |
ADCs | 0 |
Instruction Set Architecture | MCS-51 |
Minimum Operating Temperature | -40 °C |
Length | 52.57mm |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Pulse Width Modulation | 0 |
Number of Ethernet Channels | 0 |
Number of ADC Units | 0 |
Maximum Number of Ethernet Channels | 0 |
