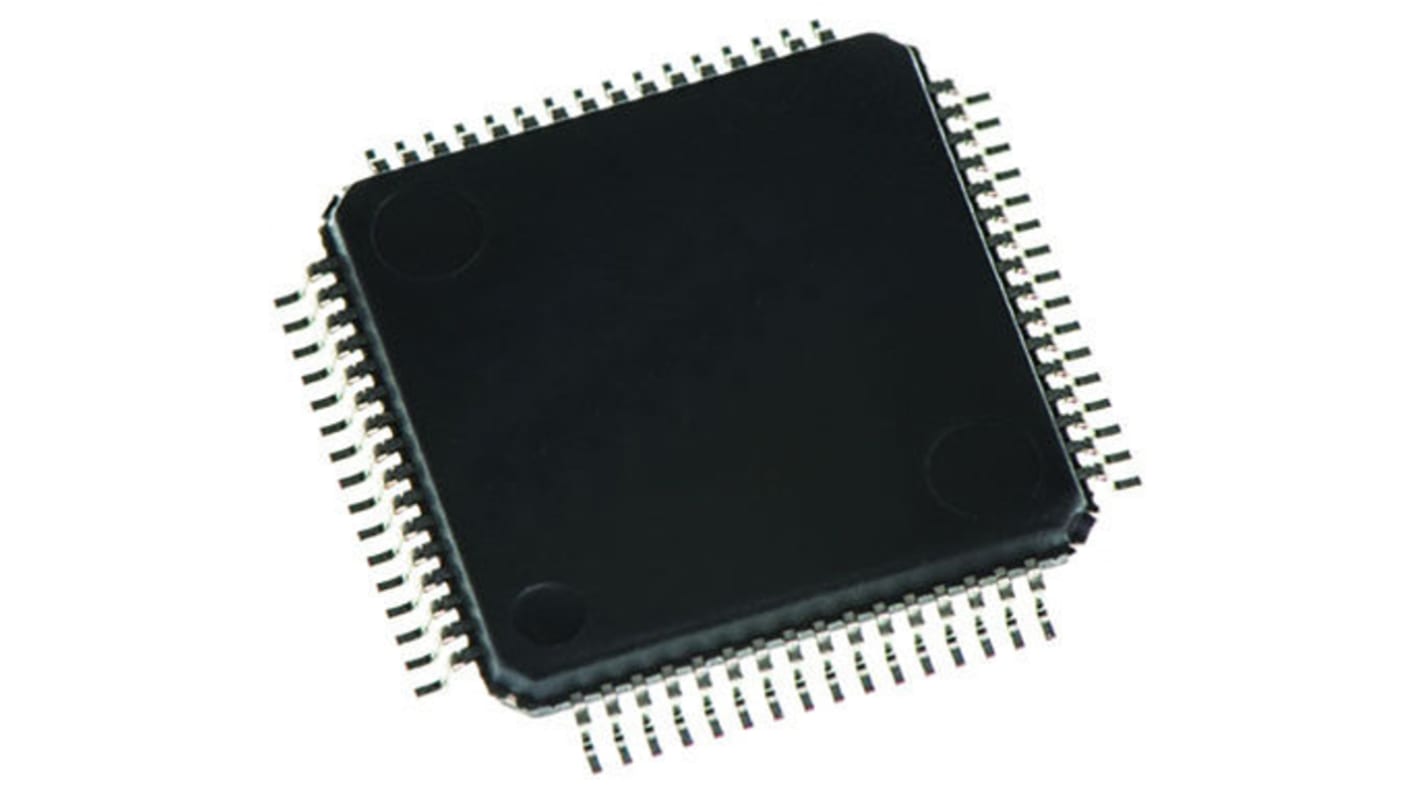

Renesas Electronics, 16bit RL78, RL78/L13 Microcontroller, 24MHz, 32 kB Flash, 64-Pin LFQFP
- RS Stock No.:
- 126-7324
- Mfr. Part No.:
- R5F10WLCGFB#30
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-7324
- Mfr. Part No.:
- R5F10WLCGFB#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RL78/L13 | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | RL78 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 1.5 kB | |
| USB Channels | 0 | |
| Typical Operating Supply Voltage | 2.4 → 5.5 V | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.55mm | |
| Instruction Set Architecture | CISC Harvard | |
| Dimensions | 10.1 x 10.1 x 1.55mm | |
| ADCs | 1(9 x 10 bit), 1(9 x 8 bit) | |
| Number of ADC Units | 1 | |
| Length | 10.1mm | |
| Maximum Operating Temperature | +105 °C | |
| Width | 10.1mm | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RL78/L13 | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core RL78 | ||
Data Bus Width 16bit | ||
Program Memory Size 32 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 1.5 kB | ||
USB Channels 0 | ||
Typical Operating Supply Voltage 2.4 → 5.5 V | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Height 1.55mm | ||
Instruction Set Architecture CISC Harvard | ||
Dimensions 10.1 x 10.1 x 1.55mm | ||
ADCs 1(9 x 10 bit), 1(9 x 8 bit) | ||
Number of ADC Units 1 | ||
Length 10.1mm | ||
Maximum Operating Temperature +105 °C | ||
Width 10.1mm | ||
- COO (Country of Origin):
- JP
RL78/L13, 16-Bit Microcontrollers, Renesas Electronics
The RL78/L13 low power microcontrollers integrate a smart LCD controller/driver and are suitable for products that have a sensor. Applications include home appliances (microwave oven, LCD remote controller), mobile devices, healthcare devices (blood pressure monitor, electric pedometer) and consumer electronics.
Supports snooze
High-precision on-chip oscillator enabling 24 MHz CPU operation
CISC architecture
Delivers 31 DMIPS at a maximum operating frequency of 24 MHz
Data Flash mounted size : 4 KB
Up to 51 seg x 4 com or 48 seg x 8 com
High-precision on-chip oscillator enabling 24 MHz CPU operation
CISC architecture
Delivers 31 DMIPS at a maximum operating frequency of 24 MHz
Data Flash mounted size : 4 KB
Up to 51 seg x 4 com or 48 seg x 8 com
RL78 Family Microcontrollers, Renesas Electronics
