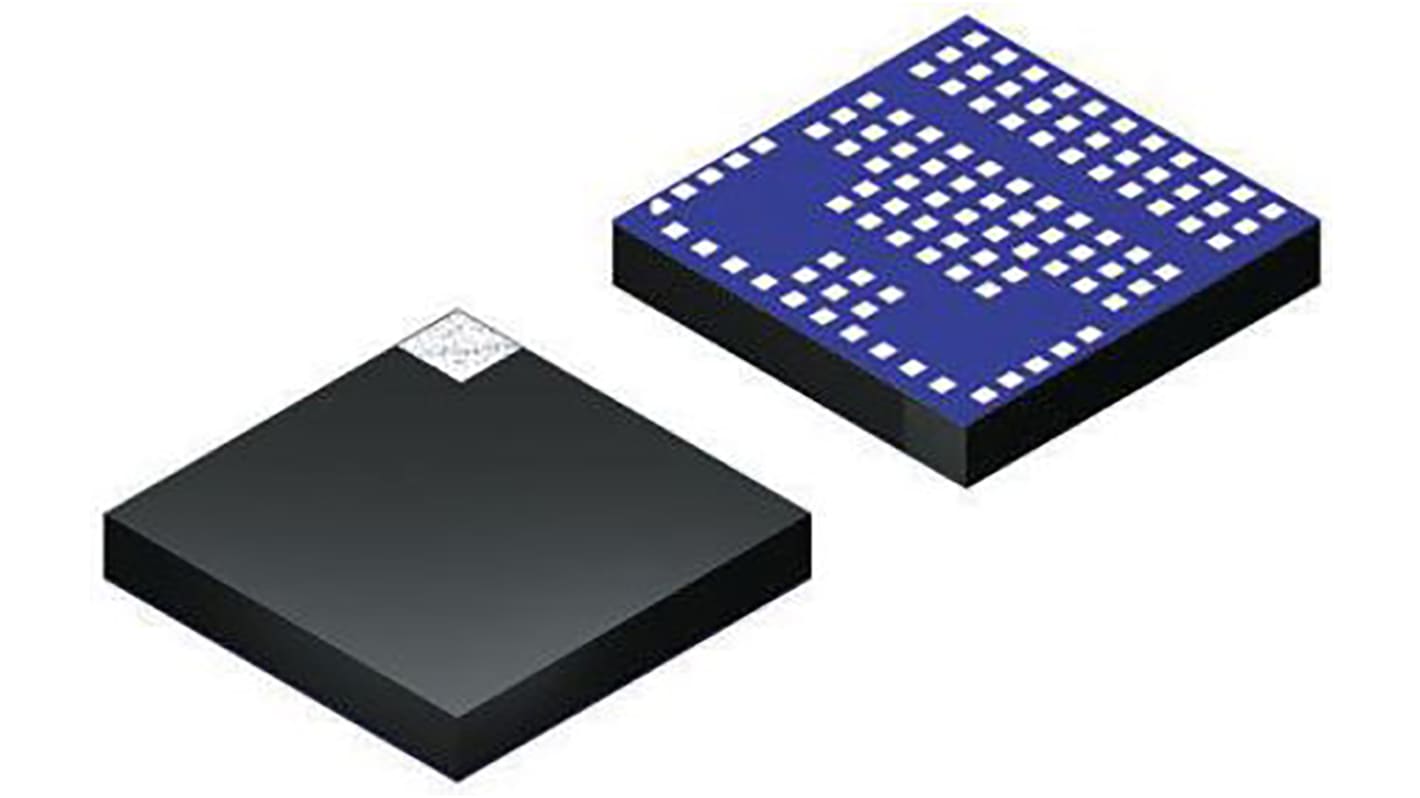

Renesas Electronics, 32bit RX, RX621 Microcontroller MCU, 100MHz, 384 kB Flash, 85-Pin TFLGA
- RS Stock No.:
- 126-0532
- Mfr. Part No.:
- R5F56217BDLD#U0
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-0532
- Mfr. Part No.:
- R5F56217BDLD#U0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RX621 | |
| Package Type | TFLGA | |
| Mounting Type | Surface Mount | |
| Pin Count | 85 | |
| Device Core | RX | |
| Data Bus Width | 32bit | |
| Program Memory Size | 384 kB | |
| Maximum Frequency | 100MHz | |
| RAM Size | 64 kB | |
| USB Channels | 2 | |
| Typical Operating Supply Voltage | 2.7 → 3.6 V | |
| Height | 1.2mm | |
| Dimensions | 7 x 7 x 1.2mm | |
| Length | 7mm | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Minimum Operating Temperature | -40 °C | |
| Width | 7mm | |
| Instruction Set Architecture | CISC Harvard | |
| ADCs | 1(8 x 10 bit), 1(8 x 12 bit) | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RX621 | ||
Package Type TFLGA | ||
Mounting Type Surface Mount | ||
Pin Count 85 | ||
Device Core RX | ||
Data Bus Width 32bit | ||
Program Memory Size 384 kB | ||
Maximum Frequency 100MHz | ||
RAM Size 64 kB | ||
USB Channels 2 | ||
Typical Operating Supply Voltage 2.7 → 3.6 V | ||
Height 1.2mm | ||
Dimensions 7 x 7 x 1.2mm | ||
Length 7mm | ||
Maximum Operating Temperature +85 °C | ||
Program Memory Type Flash | ||
Number of ADC Units 1 | ||
Minimum Operating Temperature -40 °C | ||
Width 7mm | ||
Instruction Set Architecture CISC Harvard | ||
ADCs 1(8 x 10 bit), 1(8 x 12 bit) | ||
- COO (Country of Origin):
- JP
RX621 Microcontrollers
The RX621 family of 32-bit microcontrollers features 100MHz high-speed operation and enhanced communications functions.
• 100MHz 32-bit RX core microcontroller
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision Floating Point maths unit
• Real-Time Clock
• 4-channel DMA controller (DMACA)
• Data transfer controller (DTCa)
• Serial Communication: SPI, I²C, USB, CAN
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision Floating Point maths unit
• Real-Time Clock
• 4-channel DMA controller (DMACA)
• Data transfer controller (DTCa)
• Serial Communication: SPI, I²C, USB, CAN
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
