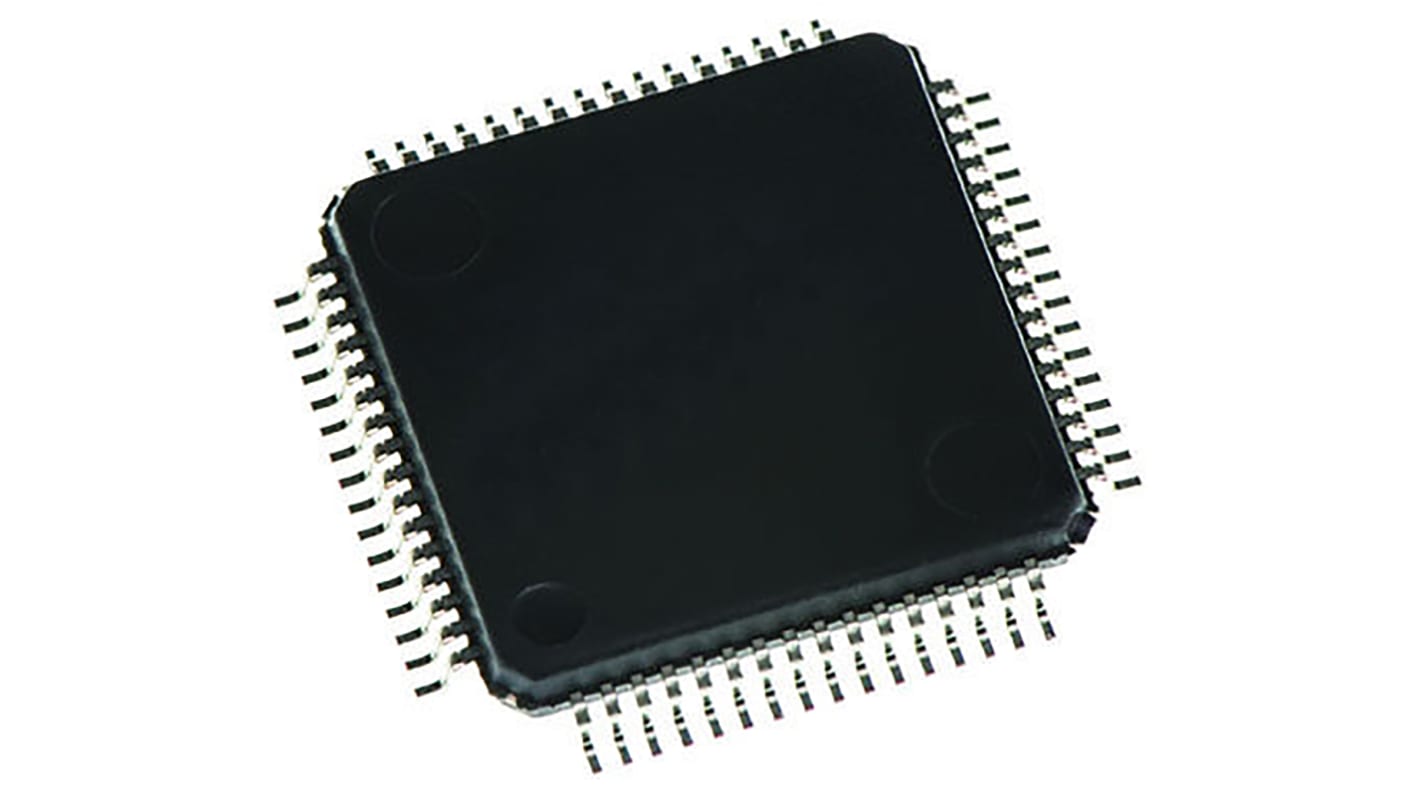

Renesas Electronics, 32bit RX, RX231 Microcontroller MCU, 54MHz, 384 kB Flash, 64-Pin LQFP
- RS Stock No.:
- 126-0527
- Mfr. Part No.:
- R5F52317ADFM#30
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-0527
- Mfr. Part No.:
- R5F52317ADFM#30
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RX231 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | RX | |
| Data Bus Width | 32bit | |
| Program Memory Size | 384 kB | |
| Maximum Frequency | 54MHz | |
| RAM Size | 64 kB | |
| USB Channels | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Width | 10.1mm | |
| Instruction Set Architecture | CISC Harvard | |
| Dimensions | 10.1 x 10.1 x 1.55mm | |
| Length | 10.1mm | |
| ADCs | 12 x 12 bit | |
| Height | 1.55mm | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RX231 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core RX | ||
Data Bus Width 32bit | ||
Program Memory Size 384 kB | ||
Maximum Frequency 54MHz | ||
RAM Size 64 kB | ||
USB Channels 1 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Width 10.1mm | ||
Instruction Set Architecture CISC Harvard | ||
Dimensions 10.1 x 10.1 x 1.55mm | ||
Length 10.1mm | ||
ADCs 12 x 12 bit | ||
Height 1.55mm | ||
Maximum Operating Temperature +85 °C | ||
Program Memory Type Flash | ||
Number of ADC Units 1 | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
RX231 Microcontrollers
The RX231 devices are 32-bit microcontrollers that can deliver up to 88.56DMIPS, support Floating Point maths operations and offer an extensive suite of on-board peripherals to suit general purpose applications.
• 54MHz 32-bit RXv2 core microcontroller with FPU
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Real-Time clock with battery back-up
• Up to 24-channel Capacitive Touch Interface Unit
• Serial communication: I²C, SPI, USB, CAN, SSI, SDHI
• AES-128/256 encryption
• Memory Protection Unit
• Event Link Controller
• Temperature sensor
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• CRC Calculator
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Real-Time clock with battery back-up
• Up to 24-channel Capacitive Touch Interface Unit
• Serial communication: I²C, SPI, USB, CAN, SSI, SDHI
• AES-128/256 encryption
• Memory Protection Unit
• Event Link Controller
• Temperature sensor
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit (RAM Test Assist)
• 14-bit Independent Watchdog Timer
• ADC self-diagnostic function
• CRC Calculator
