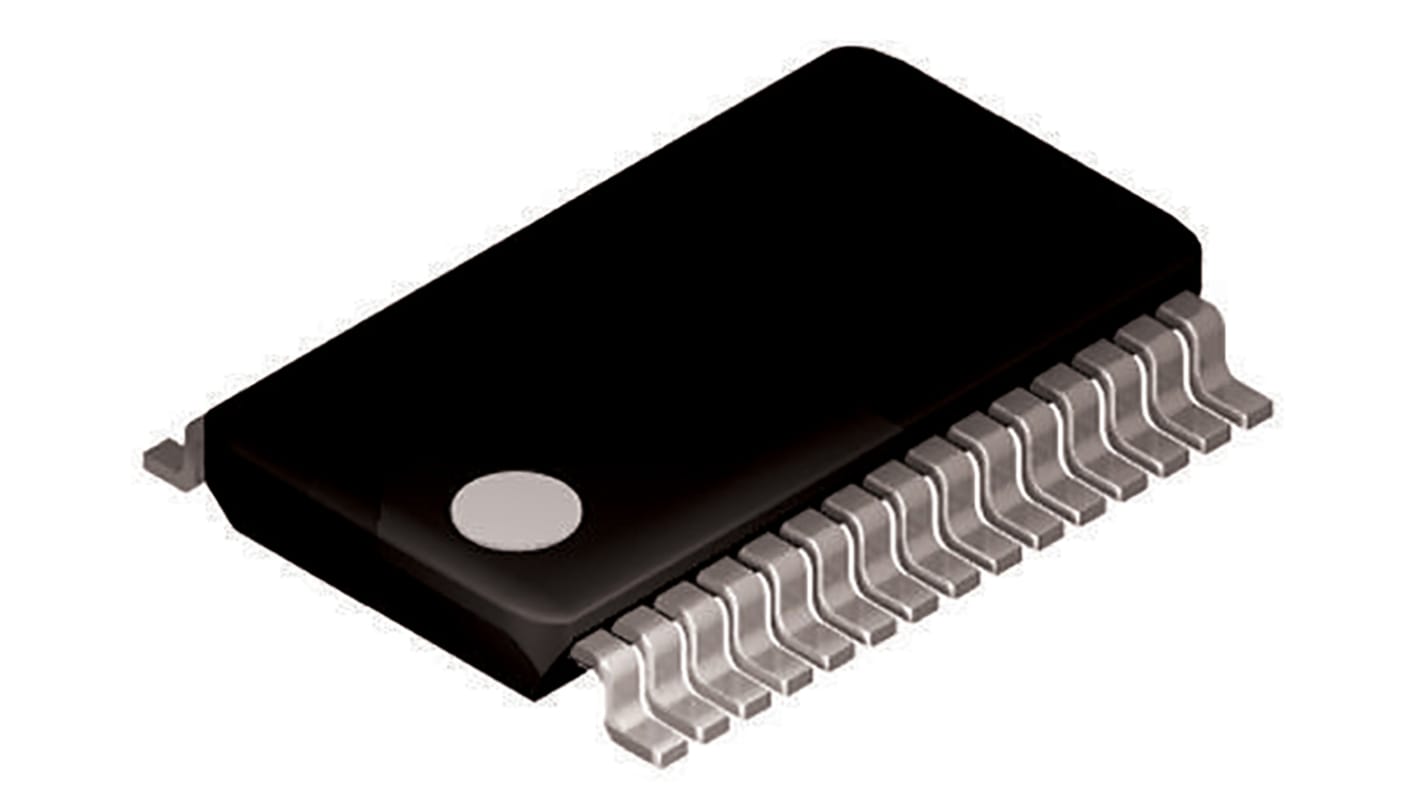

Renesas Electronics, 16bit RL78, RL78/I1A Microcontroller, 32MHz, 64 kB Flash, 30-Pin SSOP
- RS Stock No.:
- 124-0399
- Mfr. Part No.:
- R5F107AEMSP#V0
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-0399
- Mfr. Part No.:
- R5F107AEMSP#V0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | RL78/I1A | |
| Package Type | SSOP | |
| Mounting Type | Surface Mount | |
| Pin Count | 30 | |
| Device Core | RL78 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Length | 9.85mm | |
| Dimensions | 9.85 x 6.1 x 1.2mm | |
| Height | 1.2mm | |
| Number of ADC Units | 1 | |
| Program Memory Type | Flash | |
| Maximum Operating Temperature | +125 °C | |
| ADCs | 11 x 8/10 bit | |
| Instruction Set Architecture | CISC Harvard | |
| Width | 6.1mm | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name RL78/I1A | ||
Package Type SSOP | ||
Mounting Type Surface Mount | ||
Pin Count 30 | ||
Device Core RL78 | ||
Data Bus Width 16bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 4 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Length 9.85mm | ||
Dimensions 9.85 x 6.1 x 1.2mm | ||
Height 1.2mm | ||
Number of ADC Units 1 | ||
Program Memory Type Flash | ||
Maximum Operating Temperature +125 °C | ||
ADCs 11 x 8/10 bit | ||
Instruction Set Architecture CISC Harvard | ||
Width 6.1mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- MY
RL78/I1A, 16-Bit Microcontrollers, Renesas Electronics
RL78/I1A Group microcontrollers by Renesas has the RL78 core with a high processing performance while delivering the lowest power consumption in their class which includes LED control, power supply control and communication functions on a single chip.
In addition to a high-precision (±1%) on-chip oscillator enabling 24MHz CPU operation and other standard on-chip functions from the RL78/G13, 64MHz timer operation and a dithering function makes PWM output of a minimum of 0.98ns resolution possible, enabling fine-grained dimming and colour toning control.
In addition to a high-precision (±1%) on-chip oscillator enabling 24MHz CPU operation and other standard on-chip functions from the RL78/G13, 64MHz timer operation and a dithering function makes PWM output of a minimum of 0.98ns resolution possible, enabling fine-grained dimming and colour toning control.
RL78 Family Microcontrollers, Renesas Electronics
