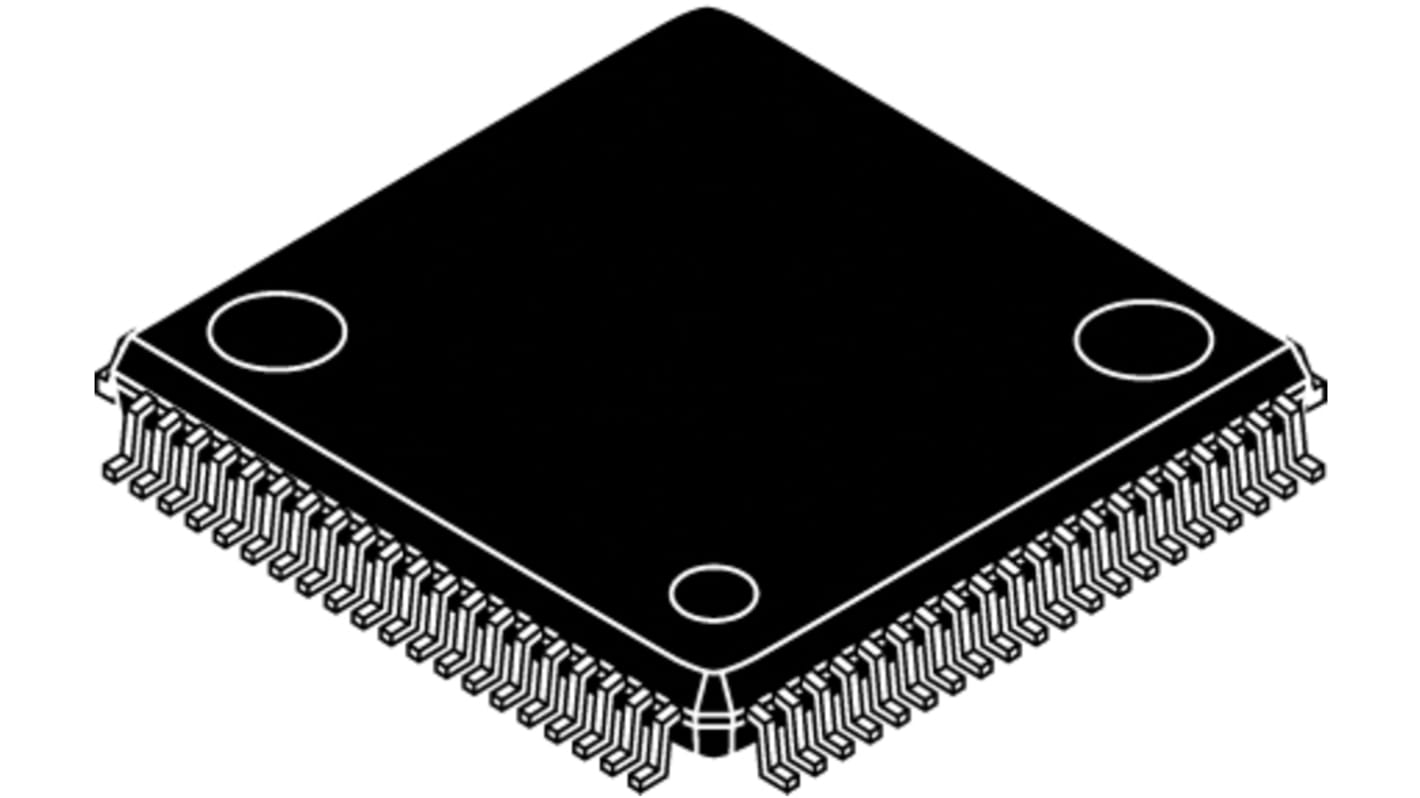

Infineon SAK-C164CI-LM CA+, 16bit C166 Microcontroller, XC166, 25MHz ROMLess, 80-Pin MQFP
- RS Stock No.:
- 110-9101
- Mfr. Part No.:
- SAK-C164CI-LM CA+
- Brand:
- Infineon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 110-9101
- Mfr. Part No.:
- SAK-C164CI-LM CA+
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Family Name | XC166 | |
| Package Type | MQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 80 | |
| Device Core | C166 | |
| Data Bus Width | 16bit | |
| Maximum Frequency | 25MHz | |
| RAM Size | 2 (IRAM) kB, 2 (XRAM) kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 2.5 → 5.5 V | |
| ADCs | 1 (8 x 10 bit) | |
| Length | 14mm | |
| Program Memory Type | ROMLess | |
| Dimensions | 14 x 14 x 2mm | |
| Data Rate | 1Mbps | |
| Height | 2mm | |
| Width | 14mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Number of ADC Units | 1 | |
| Instruction Set Architecture | CISC, RISC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Family Name XC166 | ||
Package Type MQFP | ||
Mounting Type Surface Mount | ||
Pin Count 80 | ||
Device Core C166 | ||
Data Bus Width 16bit | ||
Maximum Frequency 25MHz | ||
RAM Size 2 (IRAM) kB, 2 (XRAM) kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 2.5 → 5.5 V | ||
ADCs 1 (8 x 10 bit) | ||
Length 14mm | ||
Program Memory Type ROMLess | ||
Dimensions 14 x 14 x 2mm | ||
Data Rate 1Mbps | ||
Height 2mm | ||
Width 14mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Number of ADC Units 1 | ||
Instruction Set Architecture CISC, RISC | ||
C166 Family Microcontrollers, Infineon
The Infineon C166 microcontroller family are ideally suited to automotive, industrial, mass storage and wired or wireless communications applications. These microcontrollers offer better real time control performance than even 32bit, RISC processors. As a 16bit device it also offers a smaller and therefore more cost-effective footprint.
C166 Microcontrollers, Infineon
