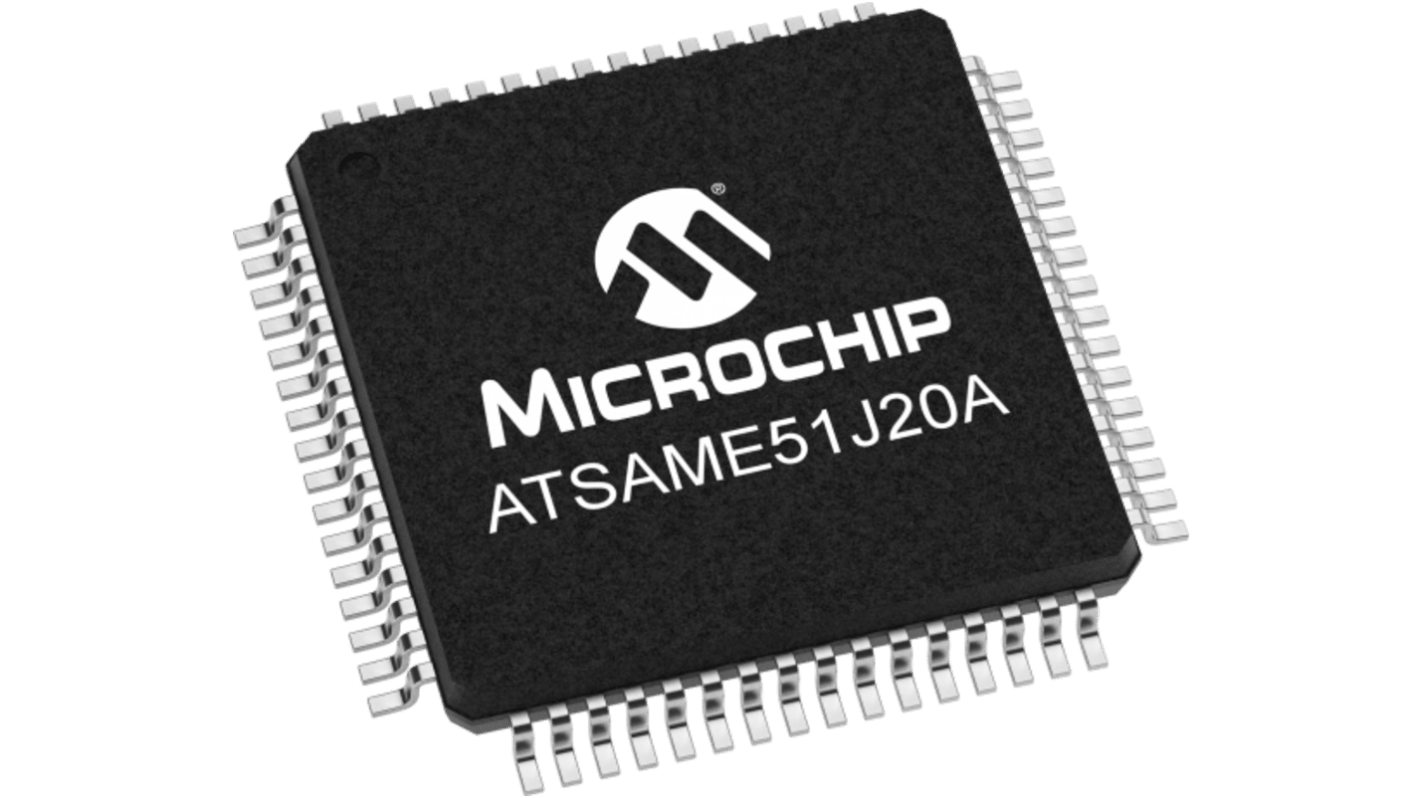

Microchip ATSAME51J20A-AZVAO, 32 bit ARM Cortex M0+, ATSAME51J20A Microcontroller, 48 MHz, 1MB FLASH, 64-Pin TQFN
- RS Stock No.:
- 631-471
- Mfr. Part No.:
- ATSAME51J20A-AZVAO
- Brand:
- Microchip
Subtotal (160 units, in boxes of 160)*
£767.84
(exc. VAT)
£921.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 June 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 160 + | £4.799 | £767.84 |
*price indicative
- RS Stock No.:
- 631-471
- Mfr. Part No.:
- ATSAME51J20A-AZVAO
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Microcontroller | |
| Series | ATSAME51J20A | |
| Package Type | TQFN | |
| Mount Type | Surface | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M0+ | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1MB | |
| Maximum Clock Frequency | 48MHz | |
| Maximum Supply Voltage | 3.63V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Analogue Comparators | 2 | |
| Standards/Approvals | No | |
| DACs | 2 x 12 Bit | |
| Number of Programmable I/Os | 99 | |
| Minimum Supply Voltage | 1.71V | |
| Automotive Standard | AEC-Q100 Grade 1 | |
| ADCs | Dual 12 Bit | |
| Program Memory Type | FLASH | |
| Number of Timers | 13 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Microcontroller | ||
Series ATSAME51J20A | ||
Package Type TQFN | ||
Mount Type Surface | ||
Pin Count 64 | ||
Device Core ARM Cortex M0+ | ||
Data Bus Width 32bit | ||
Program Memory Size 1MB | ||
Maximum Clock Frequency 48MHz | ||
Maximum Supply Voltage 3.63V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Analogue Comparators 2 | ||
Standards/Approvals No | ||
DACs 2 x 12 Bit | ||
Number of Programmable I/Os 99 | ||
Minimum Supply Voltage 1.71V | ||
Automotive Standard AEC-Q100 Grade 1 | ||
ADCs Dual 12 Bit | ||
Program Memory Type FLASH | ||
Number of Timers 13 | ||
- COO (Country of Origin):
- TW
The Microchip High performance micro-controller series is targeted for industrial and general purpose applications using the 32-bit ARM Cortex-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC.
Error Correction Code (ECC)
Dual bank with Read While Write (RWW) support
EEPROM hardware emulation
Error Correction Code (ECC) RAM option
Up to 4 KB of Tightly Coupled Memory (TCM)
Up to 8 KB additional SRAM with backup retention capability
Power on Reset (POR) and Brown out detection (BOD)
Internal and external clock options
