Renesas Electronics MCU Evaluation Board YQB-R5F11EFA-TB

View this category

Subtotal (1 unit)*

£17.34

(exc. VAT)

£20.81

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2 unit(s), ready to ship
Units
Per unit
1 +£17.34

*price indicative

RS Stock No.:
875-0817
Mfr. Part No.:
YQB-R5F11EFA-TB
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Classification

Evaluation Board

Technology

MCU

Processor Family Name

RL78

Processor Part Number

RL78/G1G

Processor Type

CPU

COO (Country of Origin):
GB

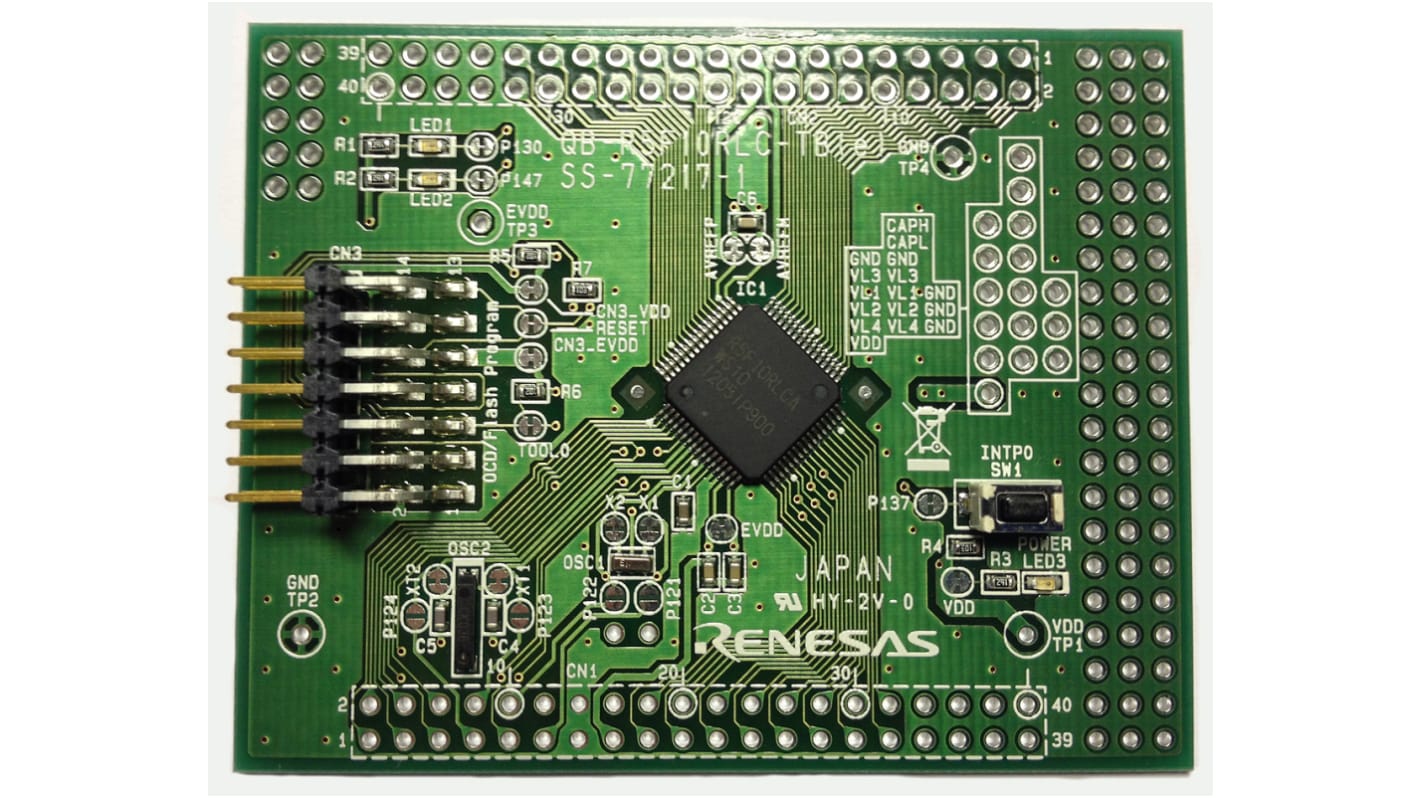

Target Board for RL78/G1G Microcontrollers


This is a target board used for evaluating the Renesas RL78/G1G microcontroller variant. Applications include small domestic appliances with BLDC motors.

24MHz R5F11EFAA microcontroller, 16KB Flash memory, 1.5KB RAM

35 x CMOS GPIO ports and 5 x CMOS Input ports

20MHz resonator

32768Hz resonator

Two 40-way I/O connectors (not populated)

14-way connector for E1 emulator pod

User pushbutton

2 x user LEDs

Power LED

21 x 3 prototyping pad area

RL78 Family Microcontrollers, Renesas Electronics


Note

A Renesas E1 emulator/debugger is required to Flash and debug programs on this target board. (RS 767-6373)
