Renesas Electronics Synergy AE-CLOUD2 4G/LTE IoT Cellular MCU Development Kit YSAECLOUD2
- RS Stock No.:
- 177-1104
- Mfr. Part No.:
- YSAECLOUD2
- Brand:
- Renesas Electronics
Subtotal (1 unit)*
£175.31
(exc. VAT)
£210.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £175.31 |
*price indicative
- RS Stock No.:
- 177-1104
- Mfr. Part No.:
- YSAECLOUD2
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Classification | Development Kit | |
Kit Name | Synergy AE-CLOUD2 4G/LTE IoT Cellular | |
Technology | MCU | |
Device Core | ARM Cortex M4 | |
Processor Family Name | ARM | |
Processor Part Number | S5D9 | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Classification Development Kit | ||
Kit Name Synergy AE-CLOUD2 4G/LTE IoT Cellular | ||
Technology MCU | ||
Device Core ARM Cortex M4 | ||
Processor Family Name ARM | ||
Processor Part Number S5D9 | ||

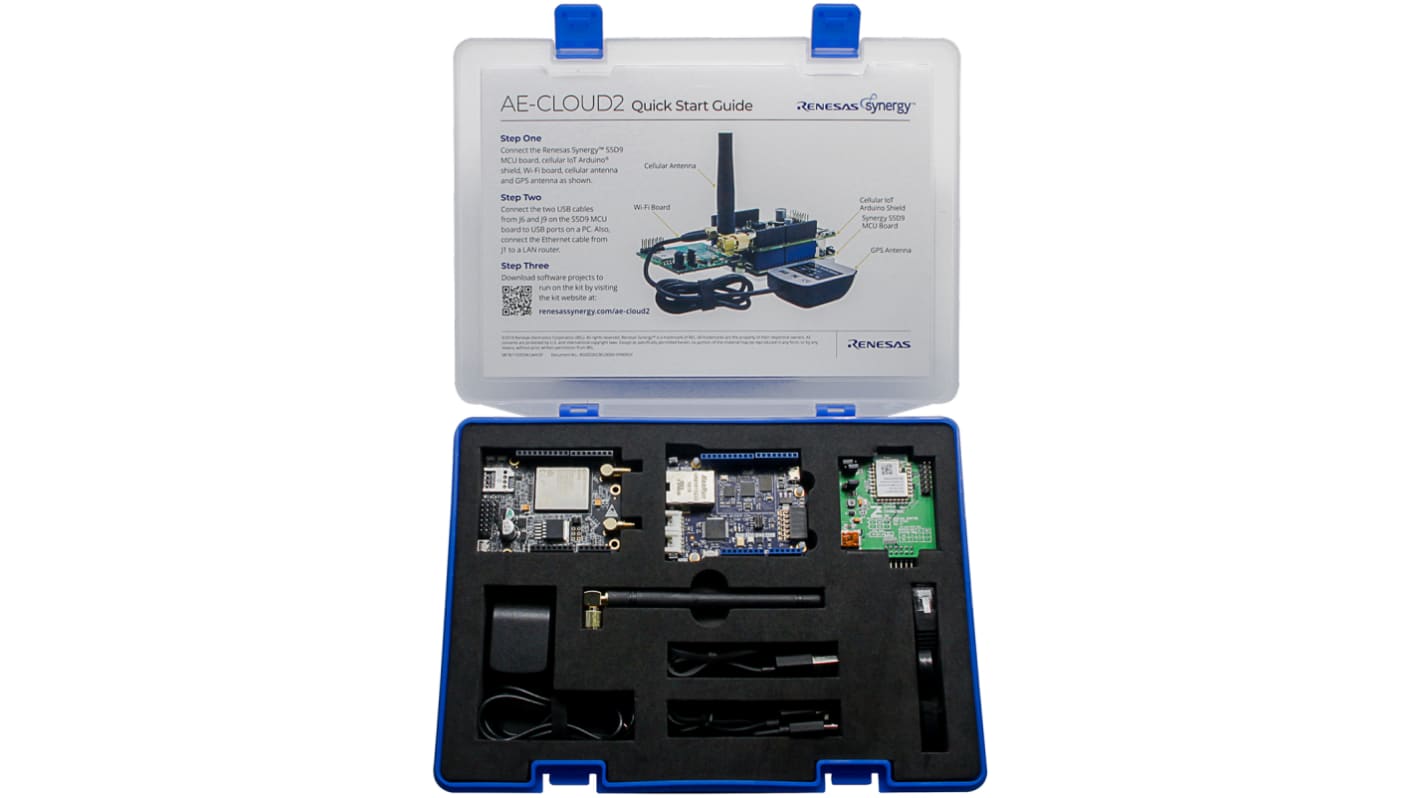

Renesas Electronics Cloud Connectivity Kit
The Renesas Electronics cloud connectivity kit is designed for fast prototyping of embedded systems, specifically targeting the Internet of Things applications. This kit includes all the components required for the development and debugging of software that can collect information from a variety of sensors and communicate it securely to the cloud. This kit includes a Wi-Fi board based on the GT202 module that uses Qualcomm QCA4002 system on a chip.
Features and Benefits:
• A power management based on 3.3V LDO voltage regulator is required for the operation of the microcontroller
• Grove connectors configured to communicate over UART and I2C interface
• Interfacing with other devices over SPI or UART
• J-Link on-board SEGGER debugging probe based on Synergy S124 MCU
• JTAG interface compatible with SEGGER debugging probe
• Quad SPI flash memory for storage of graphics and other digital assets or for execution of code in place (XIP)
• The Synergy S5D9 MCU featuring 2MB code flash/640kb SRAM/64kb data flash
• USB device interface
• User-defined LEDs for indicating the current state of the firmware.
• Grove connectors configured to communicate over UART and I2C interface
• Interfacing with other devices over SPI or UART
• J-Link on-board SEGGER debugging probe based on Synergy S124 MCU
• JTAG interface compatible with SEGGER debugging probe
• Quad SPI flash memory for storage of graphics and other digital assets or for execution of code in place (XIP)
• The Synergy S5D9 MCU featuring 2MB code flash/640kb SRAM/64kb data flash
• USB device interface
• User-defined LEDs for indicating the current state of the firmware.
Applications:
• Electronics laboratories
• Embedded systems
• IoT systems
• Embedded systems
• IoT systems
Certifications:
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEEE 802.11 b/g/n
• BS EN 61340-5-1:2007
• IEEE 802.11 b/g/n
Note
The AE-CLOUD2 kit has been designed to work with CAT-M and NB-IoT Networks.
You will need to check that these networks are supported by your mobile (cellular) network provider in your region and have the ability to configure the modem to your network providers' specifications.
You will need to check that these networks are supported by your mobile (cellular) network provider in your region and have the ability to configure the modem to your network providers' specifications.
