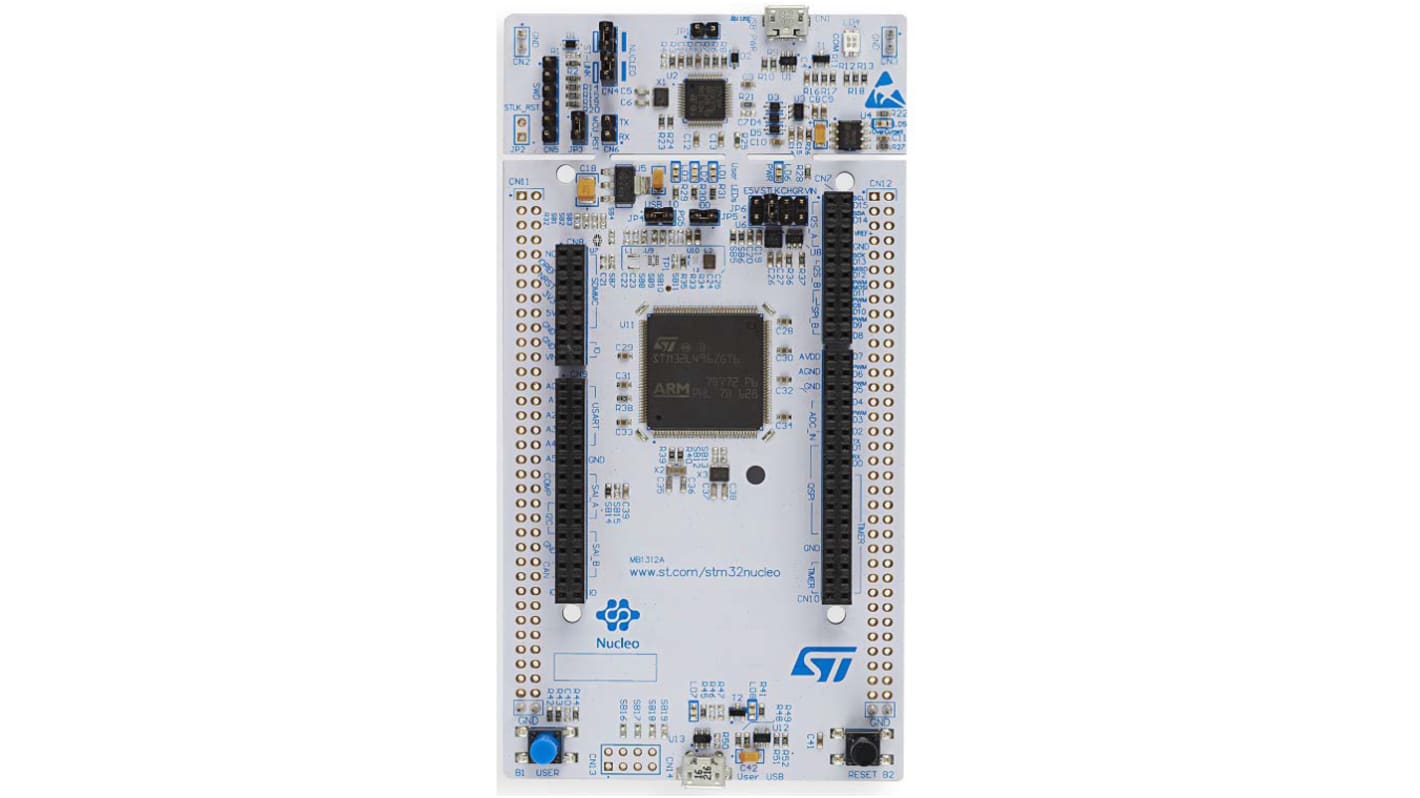

STMicroelectronics STM32 Nucleo-144 MCU Development Board NUCLEO-L4A6ZG

The STMicroelectronics MCU development board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32L4A6ZG microcontroller. For the compatible boards, the SMPS significantly reduces power consumption in run mode. The ST Zio connector, which extends the Arduino Uno V3 connectivity and the ST morpho headers provide an easy means of expanding the functionality of the NUCLEO open development platform with a wide choice of specialized shields.

• 2 user and reset push-buttons
• 3 user LEDs
• 32.768kHz crystal oscillator
• Different board connectors in the form of USB with Micro-AB, SWD and Ethernet RJ45
• External SMPS to generate Vcore logic supply
• on-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
• USB OTG or full-speed device

• Electronic laboratories
• Embedded projects

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEEE-802.3-2002 certified
