STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-L010RB
- RS Stock No.:
- 175-0681
- Mfr. Part No.:
- NUCLEO-L010RB
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£11.25
(exc. VAT)
£13.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.25 |
| 5 - 9 | £10.96 |
| 10 + | £10.69 |
*price indicative
- RS Stock No.:
- 175-0681
- Mfr. Part No.:
- NUCLEO-L010RB
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Classification | Development Board | |
| Kit Name | STM32 Nucleo-64 | |
| Technology | MCU | |
| Device Core | ARM | |
| Processor Family Name | MCU | |
| Processor Part Number | STM32L010RBT6 | |
| Processor Type | MCU | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Classification Development Board | ||
Kit Name STM32 Nucleo-64 | ||
Technology MCU | ||
Device Core ARM | ||
Processor Family Name MCU | ||
Processor Part Number STM32L010RBT6 | ||
Processor Type MCU | ||
- COO (Country of Origin):
- CN

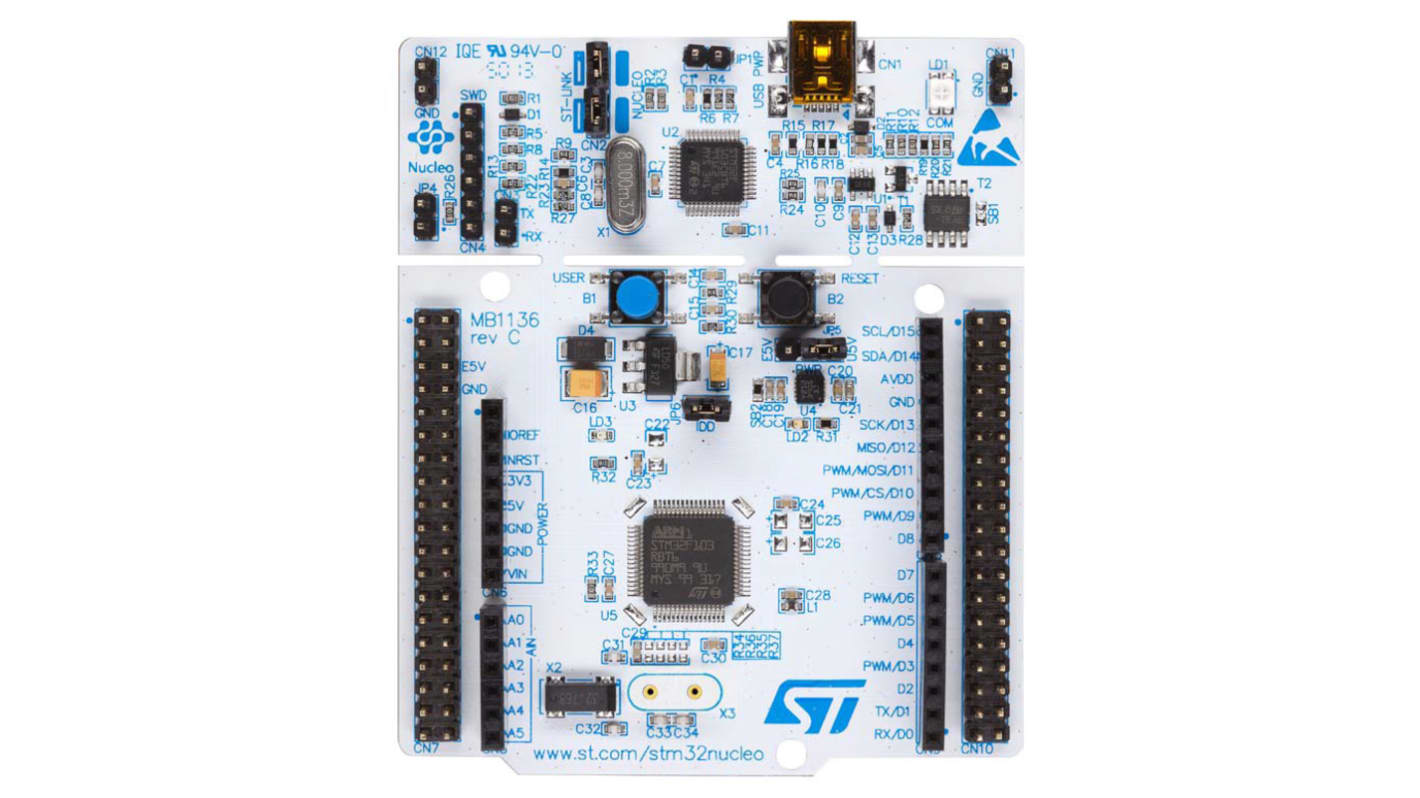

STMicroelectronics MCU Development Board
The STMicroelectronics MCU development board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32L010RBT6 microcontroller. For the compatible boards, the SMPS significantly reduces power consumption in run mode. The ST Zio connector, which extends the Arduino Uno V3 connectivity and the ST morpho headers provide an easy means of expanding the functionality of the NUCLEO open development platform with a wide choice of specialized shields.
Features and Benefits:
• 1 user and reset pushbuttons
• 1 user LED shared with Arduino
• 32.768kHz crystal oscillator
• Different board connectors in the form of USB with Micro-AB, SWD and Ethernet RJ45
• External SMPS to generate Vcore logic supply
• on-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
• USB OTG or full-speed device
• 1 user LED shared with Arduino
• 32.768kHz crystal oscillator
• Different board connectors in the form of USB with Micro-AB, SWD and Ethernet RJ45
• External SMPS to generate Vcore logic supply
• on-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
• USB OTG or full-speed device
Applications:
• Electronic laboratories
• Embedded projects
• Embedded projects
Certifications:
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEEE-802.3-2002 certified
• BS EN 61340-5-1:2007
• IEEE-802.3-2002 certified
