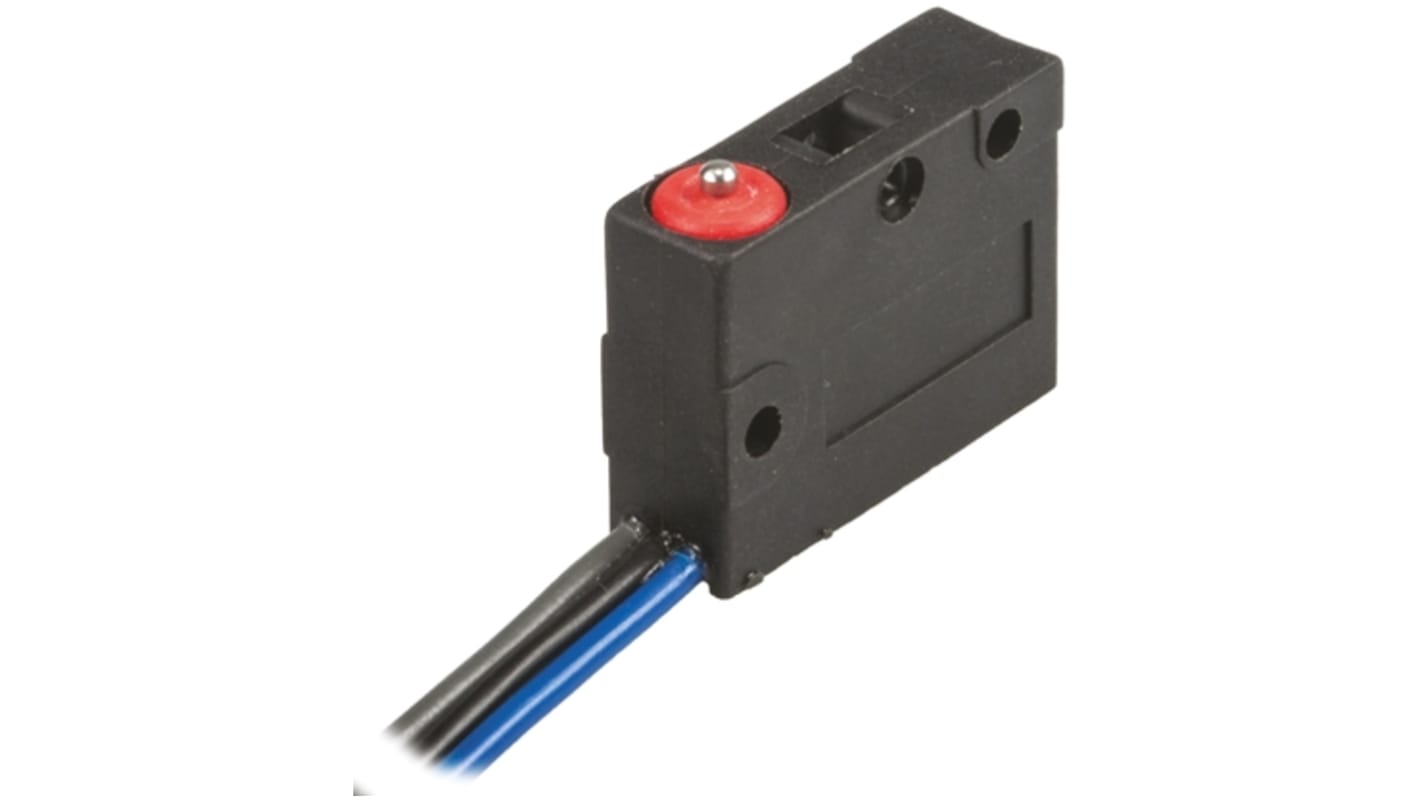

RS PRO Pin Plunger Micro Switch, Cable Terminal, 5 A, 250 V ac, SPCO, IP67
- RS Stock No.:
- 797-2542
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£19.09
(exc. VAT)
£22.91
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 127 unit(s) shipping from 23 June 2026
- Plus 100 unit(s) shipping from 21 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £19.09 |
| 10 - 24 | £18.40 |
| 25 - 49 | £17.72 |
| 50 - 99 | £17.14 |
| 100 + | £16.57 |
*price indicative
- RS Stock No.:
- 797-2542
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Micro Switch | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Cable | |
| Switch Contact Current | 5 A | |
| Housing Material | Fibreglass Reinforced Nylon | |
| Contact Configuration | SPCO | |
| IP Rating | IP67 | |
| Operating Force | 390g | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 85°C | |
| Contact AC Voltage | 250V ac | |
| Standards/Approvals | RoHS, CSA, CE, IEC 1058-1 | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Operations | |
| Width | 10.3 mm | |
| Length | 31.7mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Micro Switch | ||
Actuator Type Pin Plunger | ||
Terminal Type Cable | ||
Switch Contact Current 5 A | ||
Housing Material Fibreglass Reinforced Nylon | ||
Contact Configuration SPCO | ||
IP Rating IP67 | ||
Operating Force 390g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 85°C | ||
Contact AC Voltage 250V ac | ||
Standards/Approvals RoHS, CSA, CE, IEC 1058-1 | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Operations | ||
Width 10.3 mm | ||
Length 31.7mm | ||
- COO (Country of Origin):
- IN
Sealed Microswitch (5A)
Pre-wired fully sealed single pole changover switches
Glass fibre reinforced nylon enclosure
Fully sealed conforming to IP67
Pre-wired lead length; 0.5 metre
Standards
IEC 1058-1
