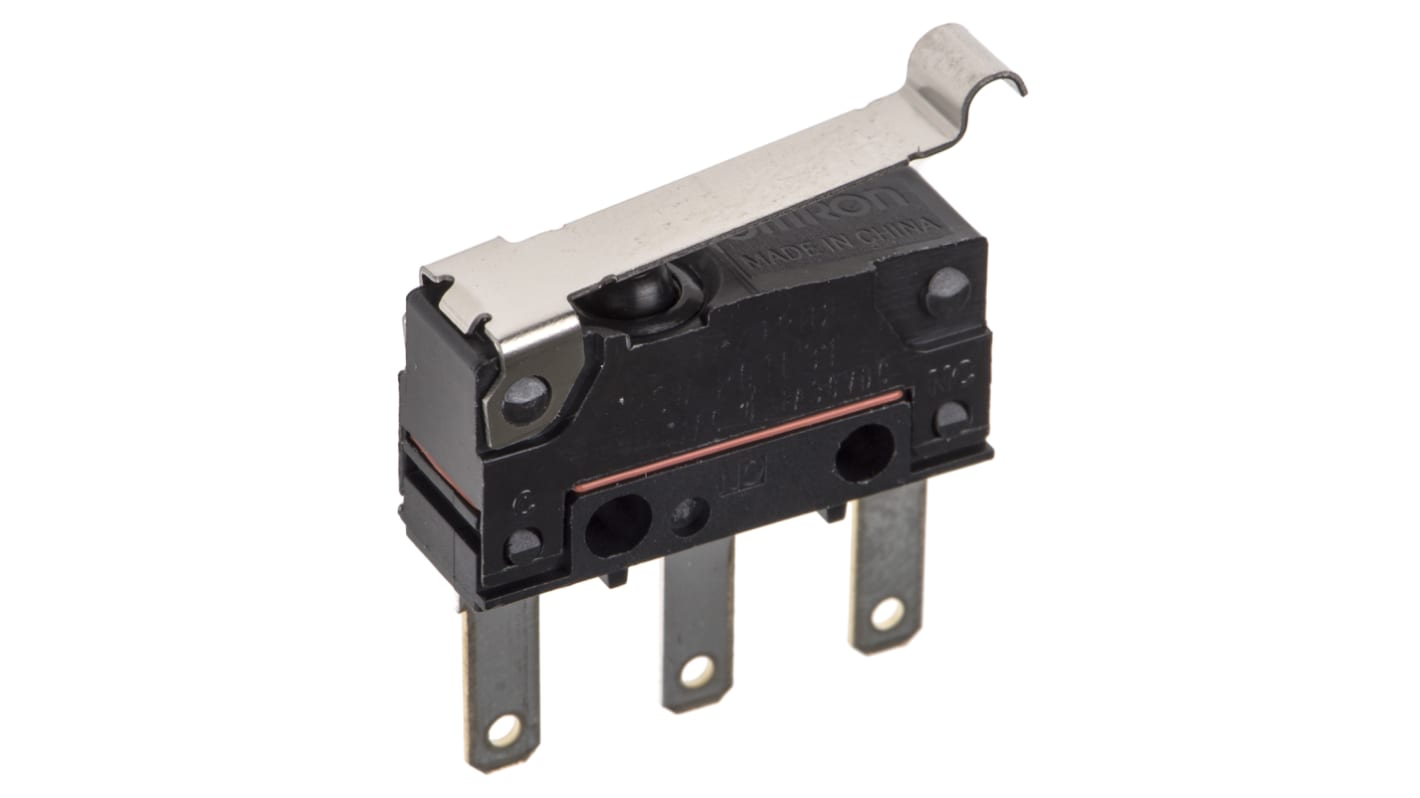

Aratas Simulated Roller Lever Micro Switch, Tab Terminal, 100mA, 250 V ac, 30 V dc, SPDT, IP67
- RS Stock No.:
- 686-6786
- Distrelec Article No.:
- 304-11-351
- Mfr. Part No.:
- D2SW-P01L3T
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.80
(exc. VAT)
£2.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 15 unit(s) shipping from 12 October 2026
- Plus 39 unit(s) shipping from 11 December 2026
- Plus 113 unit(s) shipping from 01 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.80 |
| 10 - 24 | £1.67 |
| 25 - 49 | £1.55 |
| 50 - 99 | £1.48 |
| 100 + | £1.21 |
*price indicative
- RS Stock No.:
- 686-6786
- Distrelec Article No.:
- 304-11-351
- Mfr. Part No.:
- D2SW-P01L3T
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Actuator Type | Simulated Roller Lever | |
| Product Type | Micro Switch | |
| Terminal Type | Tab | |
| Switch Contact Current | 100mA | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 0.6N | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Contact AC Voltage | 250V ac | |
| Microswitch Type | Sealed Subminiature | |
| Contact DC Voltage | 30V dc | |
| Mechanical Life | 1000000Operations | |
| Series | D2SW-P | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Actuator Type Simulated Roller Lever | ||
Product Type Micro Switch | ||
Terminal Type Tab | ||
Switch Contact Current 100mA | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 0.6N | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Contact AC Voltage 250V ac | ||
Microswitch Type Sealed Subminiature | ||
Contact DC Voltage 30V dc | ||
Mechanical Life 1000000Operations | ||
Series D2SW-P | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN
Sealed Miniature Microswitches
High quality sealed miniature microswitch in industry standard V4 housing
Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C
