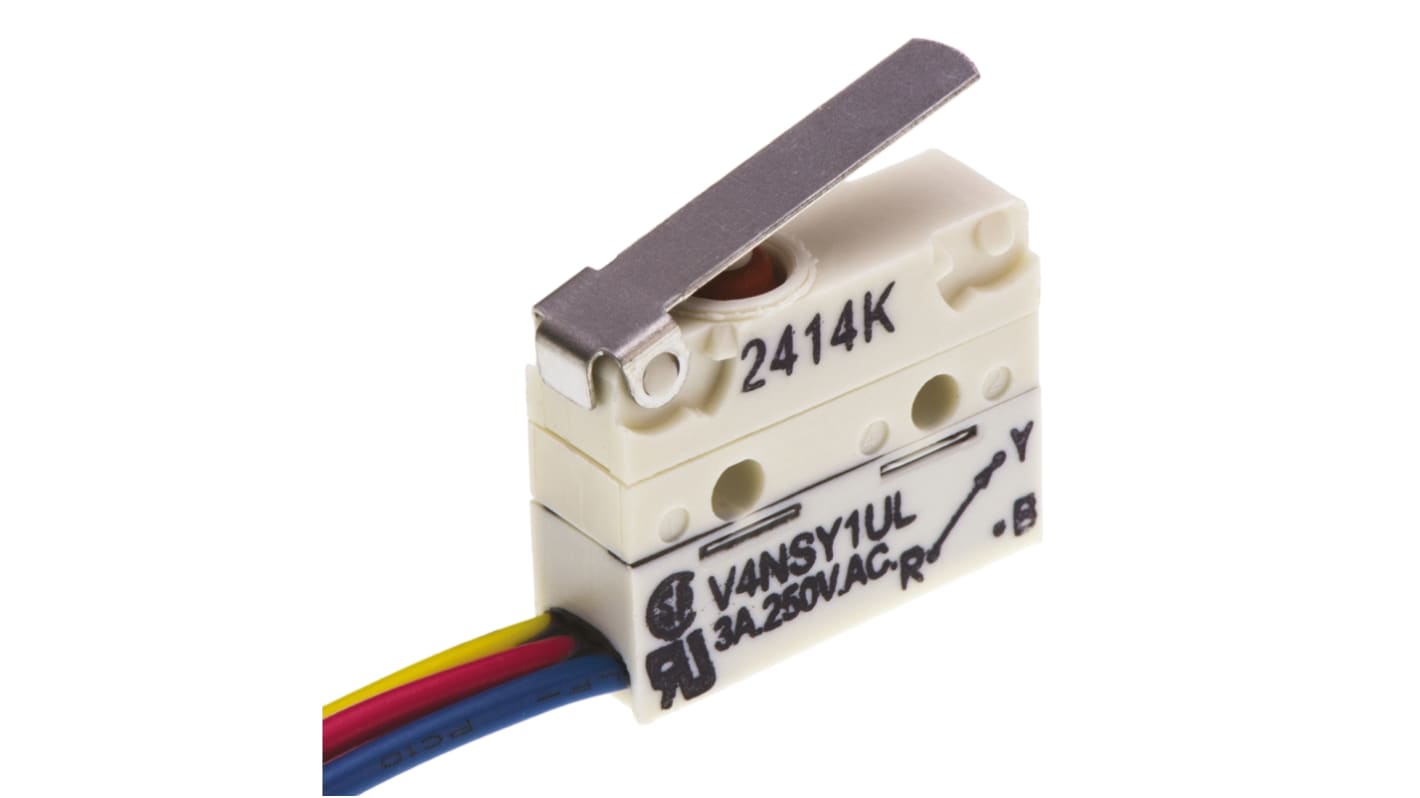

Saia-Burgess Short Lever Micro Switch, Pre-wired Terminal, 3 A @ 250 V ac, SPDT, IP67
- RS Stock No.:
- 472-8285
- Mfr. Part No.:
- V4NSY1UL
- Brand:
- Saia-Burgess
433 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£6.43
(exc. VAT)
£7.72
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £6.43 |
| 50 - 149 | £5.30 |
| 150 - 249 | £4.47 |
| 250 - 499 | £4.06 |
| 500 + | £3.92 |
- RS Stock No.:
- 472-8285
- Mfr. Part No.:
- V4NSY1UL
- Brand:
- Saia-Burgess
Technical Reference
Legislation and Compliance
Product Details
V4NS Sealed Sub-miniature Micro-switches
Sealed to IP67
SPCO contact configuation
UL94-V0 flame retardant housing
Dimensions: H10 x W6.5 x D20 (solder), H17 x W 6.5 x D20 (pre-wired)
Operating Temperature range: -40 to +85°C
SPCO contact configuation
UL94-V0 flame retardant housing
Dimensions: H10 x W6.5 x D20 (solder), H17 x W 6.5 x D20 (pre-wired)
Operating Temperature range: -40 to +85°C
Note
The Long Lever length is 60mm
Approvals
UL, CSA, ENEC
Saia-Burgess Microswitch
The Saia-Burgess Microswitch has an electrical rating of 5A at 250VAC with SPDT contact configuration. It has fine silver contact material and a glass fibre reinforced polyamide case with a straight lever actuator.
Features and Benefits
Operating temperature ranges between -40°C and 85°C
Operating force is 0.9N
Mechanical life is 5000000 operations
Pre-wired terminals
Operating force is 0.9N
Mechanical life is 5000000 operations
Pre-wired terminals
Certifications
IP67 rated
UL94-V0
CSA certified
ENEC certified
UL94-V0
CSA certified
ENEC certified
Approvals
ENEC; UL; CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Short Lever |
| Terminal Type | Pre-wired |
| Contact Current Rating | 3 A @ 250 V ac |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Operating Force | 0.9 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Fine Silver |
| Case Material | Glass Fibre Reinforced Nylon |
| Mechanical Life | 5000000Operations |
| Release Force | 0.07N |
| Operating Temperature Range | -40 → +85°C |
