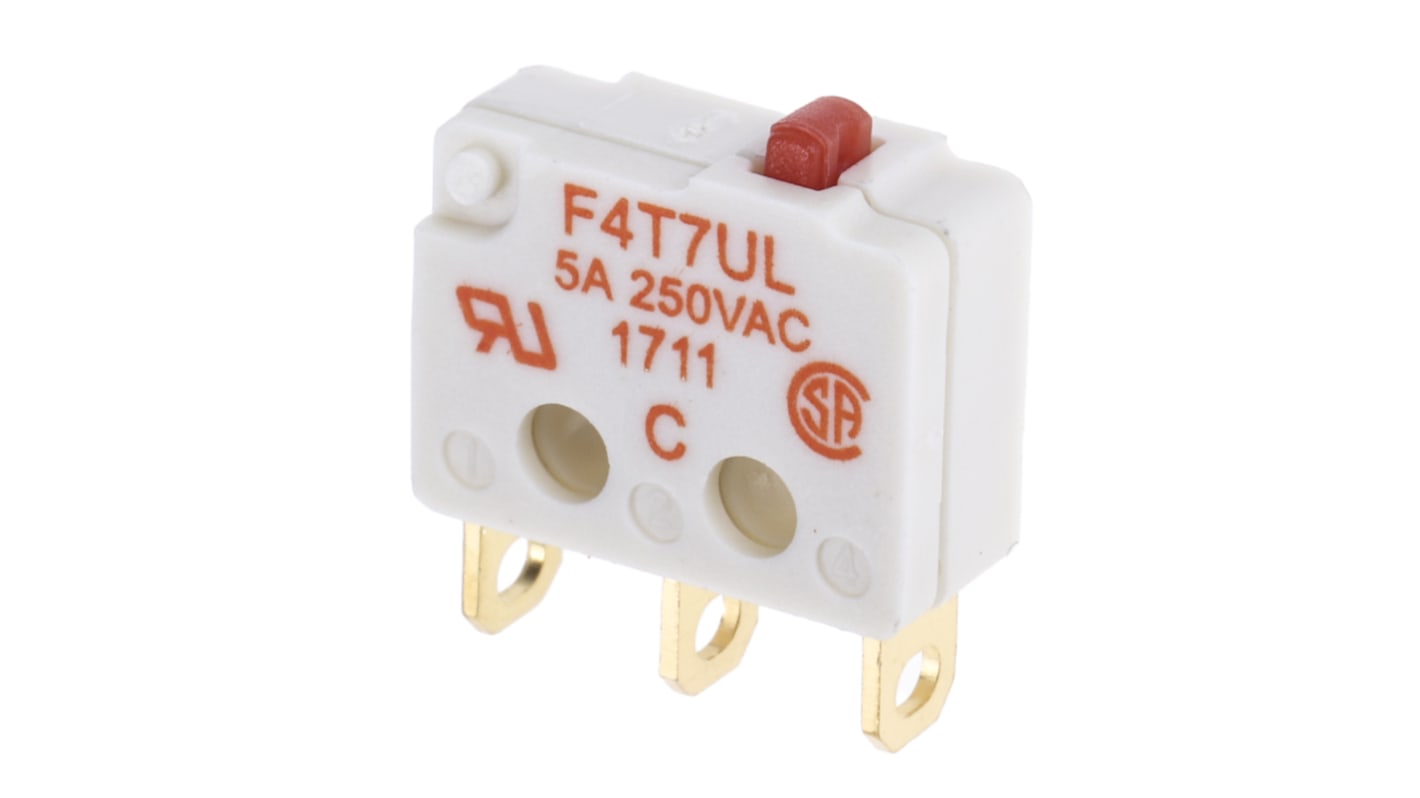

Saia-Burgess Plunger Micro Switch, Solder Terminal, 5 A @ 250 V ac, SPDT, IP40
- RS Stock No.:
- 301-2264
- Distrelec Article No.:
- 135-82-108
- Mfr. Part No.:
- F4T7-UL
- Brand:
- Saia-Burgess
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.46
(exc. VAT)
£4.15
(inc. VAT)
- RS Stock No.:
- 301-2264
- Distrelec Article No.:
- 135-82-108
- Mfr. Part No.:
- F4T7-UL
- Brand:
- Saia-Burgess
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Actuator Type | Plunger | |
| Terminal Type | Solder | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Operating Force | 1.4 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver | |
| Case Material | Glass Fibre Reinforced Nylon | |
| Mechanical Life | 10^7Operations | |
| Release Force | 0.25N | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Actuator Type Plunger | ||
Terminal Type Solder | ||
Contact Current Rating 5 A @ 250 V ac | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 1.4 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver | ||
Case Material Glass Fibre Reinforced Nylon | ||
Mechanical Life 10^7Operations | ||
Release Force 0.25N | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- GB
Saia-Burgess Microswitch
The Saia-Burgess Microswitch has a plunger actuator and an electrical rating of 5A at 250VAC. It has silver contact material with SP contact configuration.
Features and Benefits
Mechanical life is 10^7 operations
Operating force is 1.4N
Operating temperature ranges between -40°C and 85°C
Solder terminals
Small size
Operating force is 1.4N
Operating temperature ranges between -40°C and 85°C
Solder terminals
Small size
Certifications
IP40 rated
UL approved
CSA certified
UL approved
CSA certified
Approvals
UL; CSA
