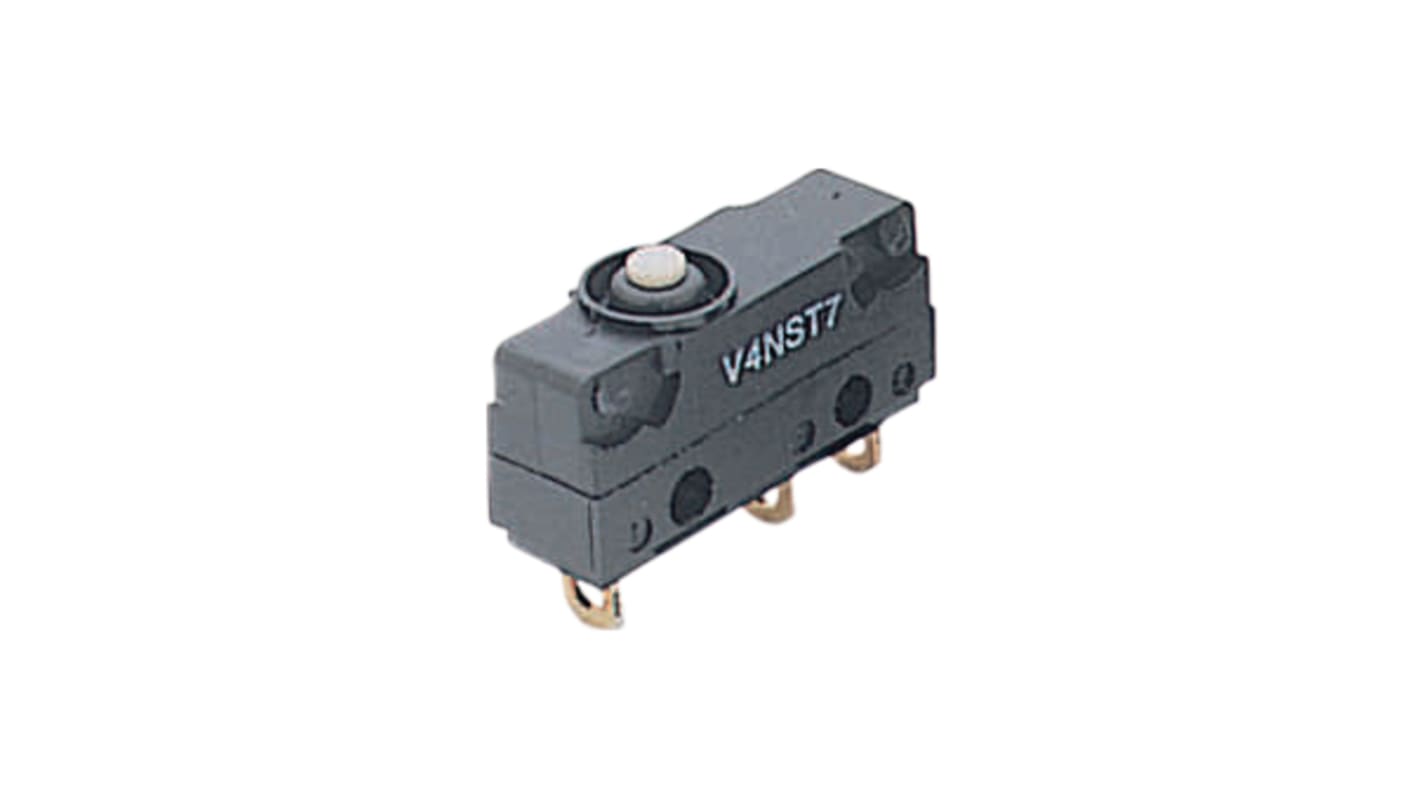

Saia-Burgess Plunger Micro Switch, Solder Terminal, 5 A, 250 V ac, CO, IP67
- RS Stock No.:
- 283-6163
- Distrelec Article No.:
- 135-83-143
- Mfr. Part No.:
- V4NCST7
- Brand:
- Saia-Burgess
Subtotal (1 unit)*
£5.44
(exc. VAT)
£6.53
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 1,723 left, shipping from 30 March 2026
- Plus 4,396 left, shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.44 |
*price indicative
- RS Stock No.:
- 283-6163
- Distrelec Article No.:
- 135-83-143
- Mfr. Part No.:
- V4NCST7
- Brand:
- Saia-Burgess
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Product Type | Micro Switch | |
| Actuator Type | Plunger | |
| Terminal Type | Solder | |
| Switch Contact Current | 5 A | |
| Housing Material | Fibreglass Reinforced Polyamide | |
| Contact Configuration | CO | |
| IP Rating | IP67 | |
| Operating Force | 2.5N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Microswitch Type | Subminiature | |
| Contact AC Voltage | 250V ac | |
| Depth | 6.4mm | |
| Width | 6.4 mm | |
| Length | 2mm | |
| Series | V4NC | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Product Type Micro Switch | ||
Actuator Type Plunger | ||
Terminal Type Solder | ||
Switch Contact Current 5 A | ||
Housing Material Fibreglass Reinforced Polyamide | ||
Contact Configuration CO | ||
IP Rating IP67 | ||
Operating Force 2.5N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Microswitch Type Subminiature | ||
Contact AC Voltage 250V ac | ||
Depth 6.4mm | ||
Width 6.4 mm | ||
Length 2mm | ||
Series V4NC | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- GB
The subminiature micro switch that offers a wide variety of lever options and is sealed (IP6K7) for added protection. With its solder and faston terminals, as well as PCB terminals, it provides flexibility in installation. Rated at 250 VAC and 5 A, this micro switch is reliable and durable. Its compact dimensions of 20 x 10.3 x 6.4 mm make it suitable for applications where space is limited. Approved for automotive standards, it is a preferred choice for various industries. Whether you need a plunger, plain lever, roller lever, or simulated roller lever actuator, the micro switch has you covered.
Wide variety of lever options for versatile applications
Peg mounting option for easy installation
Pre-wired option with 500 mm cable for added convenience
Sealed (IP6K7) for enhanced protection against dust and water
Solder and faston terminals, as well as PCB terminals, for flexible installation
Rating of 250 VAC and 5 A for reliable performance
Compact dimensions of 20 x 10.3 x 6.4 mm for space-limited applications
Approved for automotive standards for high-quality and safety
Available in different actuator options to meet specific needs
