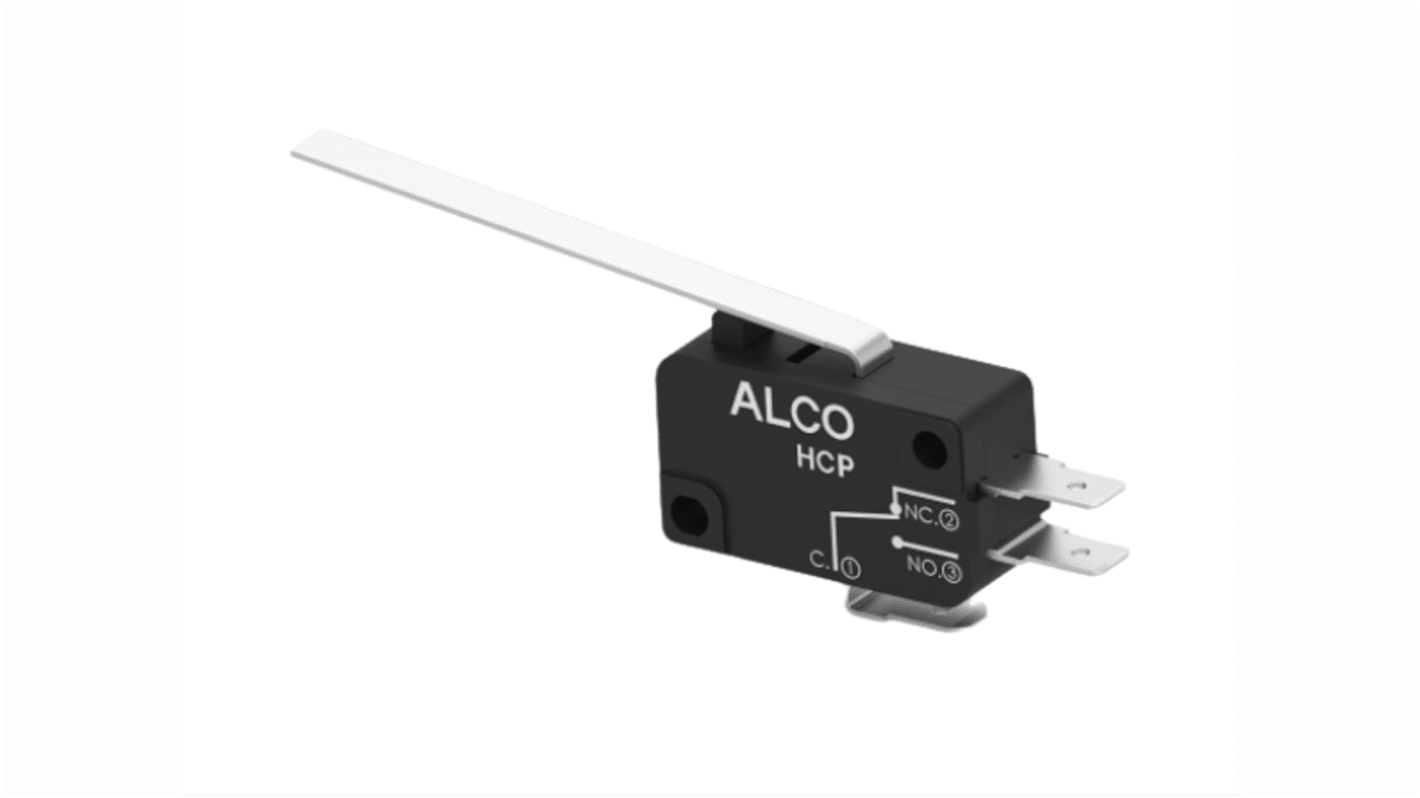

TE Connectivity Extended Snap Action Micro Switch, Quick Connect Terminal, 16A, SPDT
- RS Stock No.:
- 274-8429
- Mfr. Part No.:
- HCP16DTD3S04
- Brand:
- TE Connectivity
Save 8% when you buy 50 units
Subtotal (1 unit)*
£3.83
(exc. VAT)
£4.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 942 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.83 |
10 - 49 | £3.68 |
50 + | £3.51 |
*price indicative
- RS Stock No.:
- 274-8429
- Mfr. Part No.:
- HCP16DTD3S04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Actuator Type | Extended | |
Terminal Type | Quick Connect | |
Contact Current Rating | 16A | |
Contact Configuration | SPDT | |
Operating Force | 65 g | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Switch Housing | PBT | |
Mechanical Life | 10000000Operations | |
Voltage Rating | 125/250V ac | |
Release Force | 7gf | |
Switch Operation | Snap Action | |
Operating Temperature Range | -40 → +125°C | |
Standards Met | cUL, ENEC, UL | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Actuator Type Extended | ||
Terminal Type Quick Connect | ||
Contact Current Rating 16A | ||
Contact Configuration SPDT | ||
Operating Force 65 g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Switch Housing PBT | ||
Mechanical Life 10000000Operations | ||
Voltage Rating 125/250V ac | ||
Release Force 7gf | ||
Switch Operation Snap Action | ||
Operating Temperature Range -40 → +125°C | ||
Standards Met cUL, ENEC, UL | ||
The TE Connectivity High current snap action switches are designed to convert a mechanical action in an electrical one. This makes them very suitable for applications such as automation and process control, white goods, security, home appliances and factory automation as well as other domestic and industrial uses. This snap action switches are designed to industry standard sizes, making them extremely suitable for use in existing designs. They are available with various contact styles to aid flexibility.
Offers more flexibility
Robust contacts design
Higher current carrying capability
Highly reliable with long operating life
Minimum 10000 operations for electrical life
Minimum 10000000 operations for mechanical life
Robust contacts design
Higher current carrying capability
Highly reliable with long operating life
Minimum 10000 operations for electrical life
Minimum 10000000 operations for mechanical life
