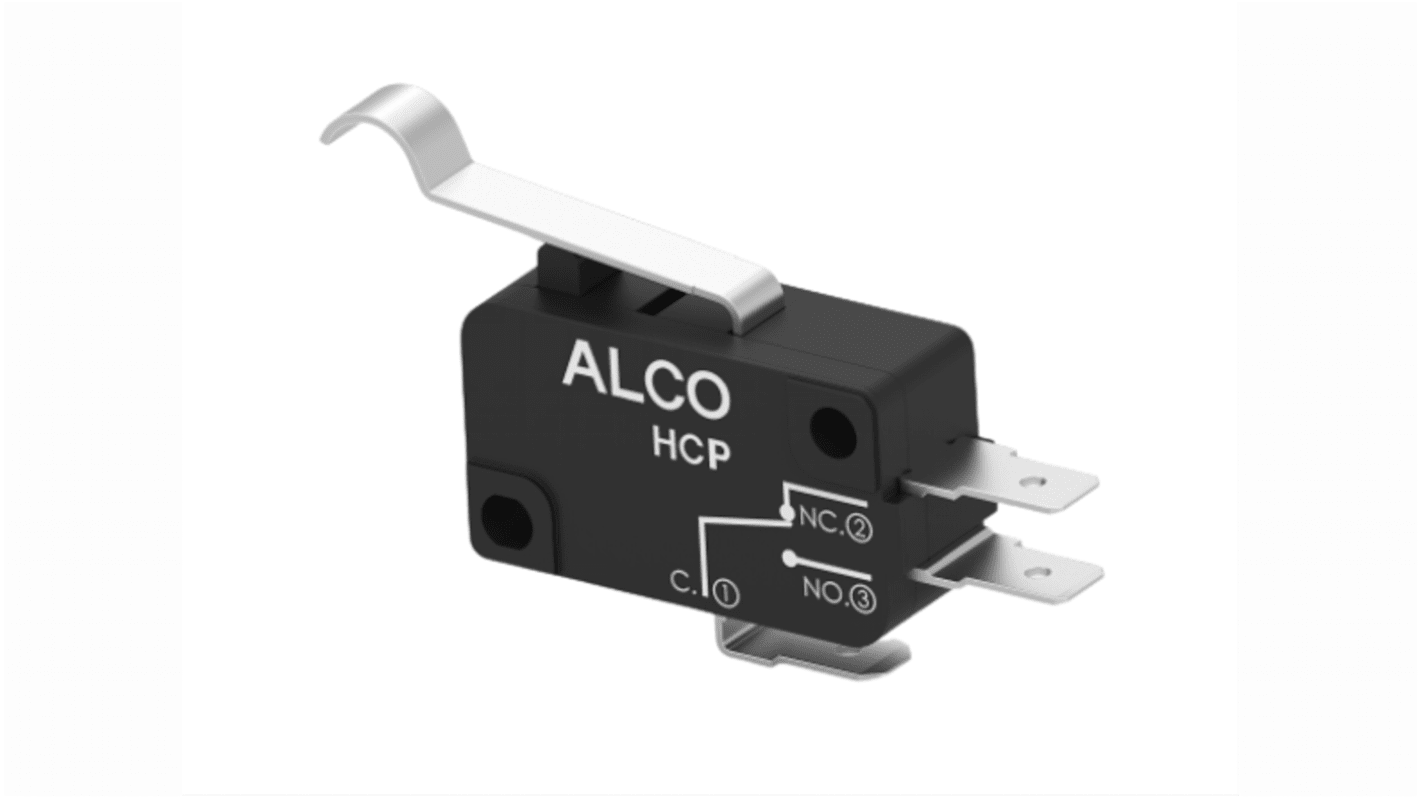

Simulated Roller Lever Snap Action Micro Switch, Quick Connect Terminal, 10A, SPDT
- RS Stock No.:
- 274-8413
- Mfr. Part No.:
- HCP10DTD4S04
- Brand:
- TE Connectivity
996 In stock - FREE next working day delivery available
Price Each
£3.68
(exc. VAT)
£4.42
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.68 |
| 10 - 49 | £3.53 |
| 50 + | £3.37 |
- RS Stock No.:
- 274-8413
- Mfr. Part No.:
- HCP10DTD4S04
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
The TE Connectivity High current snap action switches are designed to convert a mechanical action in an electrical one. This makes them very suitable for applications such as automation and process control, white goods, security, home appliances and factory automation as well as other domestic and industrial uses. This snap action switches are designed to industry standard sizes, making them extremely suitable for use in existing designs. They are available with various contact styles to aid flexibility.
Offers more flexibility
Robust contacts design
Higher current carrying capability
Highly reliable with long operating life
Minimum 10000 operations for electrical life
Minimum 10000000 operations for mechanical life
Robust contacts design
Higher current carrying capability
Highly reliable with long operating life
Minimum 10000 operations for electrical life
Minimum 10000000 operations for mechanical life
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Simulated Roller Lever |
| Terminal Type | Quick Connect |
| Contact Current Rating | 10A |
| Contact Configuration | SPDT |
| Operating Force | 120 g |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Switch Housing | PBT |
| Mechanical Life | 10000000Operations |
| Release Force | 15gf |
| Voltage Rating | 125/250V ac |
| Standards Met | cUL, ENEC, UL |
| Operating Temperature Range | -40 → +125°C |
| Switch Operation | Snap Action |
