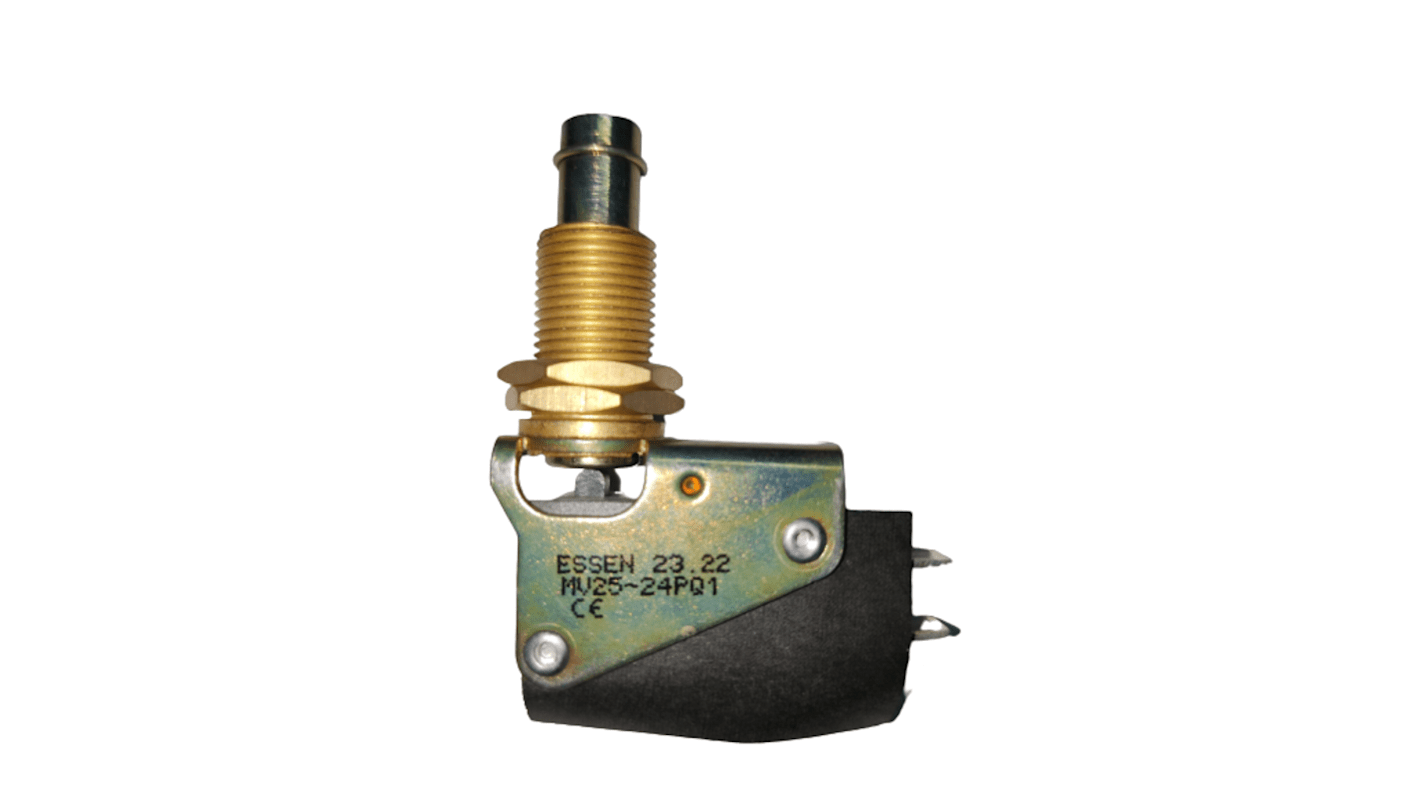

RS PRO Spring Plunger Microswitch, Quick Connect Terminal, 16A @ 250V ac, SPDT, IP40
- RS Stock No.:
- 249-6853
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£7.21
(exc. VAT)
£8.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 57 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £7.21 |
10 - 99 | £6.99 |
100 + | £6.14 |
*price indicative
- RS Stock No.:
- 249-6853
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Actuator Type | Spring Plunger | |
Terminal Type | Quick Connect | |
Contact Current Rating | 16A @ 250V ac | |
Contact Configuration | SPDT | |
IP Rating | IP40 | |
Operating Force | 400g | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver/ Silver Plated | |
Case Material | Glass Filled Thermoplastic | |
Mechanical Life | 1000000Operations | |
Voltage Rating | 250V | |
Release Force | 80g | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Actuator Type Spring Plunger | ||
Terminal Type Quick Connect | ||
Contact Current Rating 16A @ 250V ac | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 400g | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver/ Silver Plated | ||
Case Material Glass Filled Thermoplastic | ||
Mechanical Life 1000000Operations | ||
Voltage Rating 250V | ||
Release Force 80g | ||
- COO (Country of Origin):
- IN
RS PRO 1NO/1NC Heavy Duty Miniature Micro Switch (16 A @ 250V)
The RS PRO versatile miniature Plunger Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a Spring Plunger actuator with 6.35mm x 0.8mm quick connect terminals for a reliable and
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Spring Plunger switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.
Features and Benefits
- Spring Plunger actuator
- Contact Configuration SPDT
- Contact Arrangement 1NO + 1NC
- 30% Glass filled flame retardant thermoplastic case (UL94 V0)
- Positive snap action
- Silver contacts
- Silver plated quick connect terminals (6.35 x 0.8mm)
- Total weight of 35.4g
- Single hole mounting via a 12.5mm hole (2 x locknut supplied)
Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
