RS PRO Lever Microswitch, Screw Terminal, 16A @ 250V ac, SPDT, IP40
- RS Stock No.:
- 249-6839
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.26
(exc. VAT)
£11.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 73 unit(s) ready to ship
- Plus 999,999,926 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £9.26 |
10 - 99 | £9.01 |
100 + | £7.89 |
*price indicative
- RS Stock No.:
- 249-6839
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Actuator Type | Lever | |
Terminal Type | Screw | |
Contact Current Rating | 16A @ 250V ac | |
Contact Configuration | SPDT | |
IP Rating | IP40 | |
Operating Force | 130g | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver/ Silver Plated | |
Case Material | Glass Filled Thermoplastic | |
Mechanical Life | 1000000Operations | |
Voltage Rating | 250V | |
Release Force | 35g | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Actuator Type Lever | ||
Terminal Type Screw | ||
Contact Current Rating 16A @ 250V ac | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 130g | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver/ Silver Plated | ||
Case Material Glass Filled Thermoplastic | ||
Mechanical Life 1000000Operations | ||
Voltage Rating 250V | ||
Release Force 35g | ||
- COO (Country of Origin):
- IN

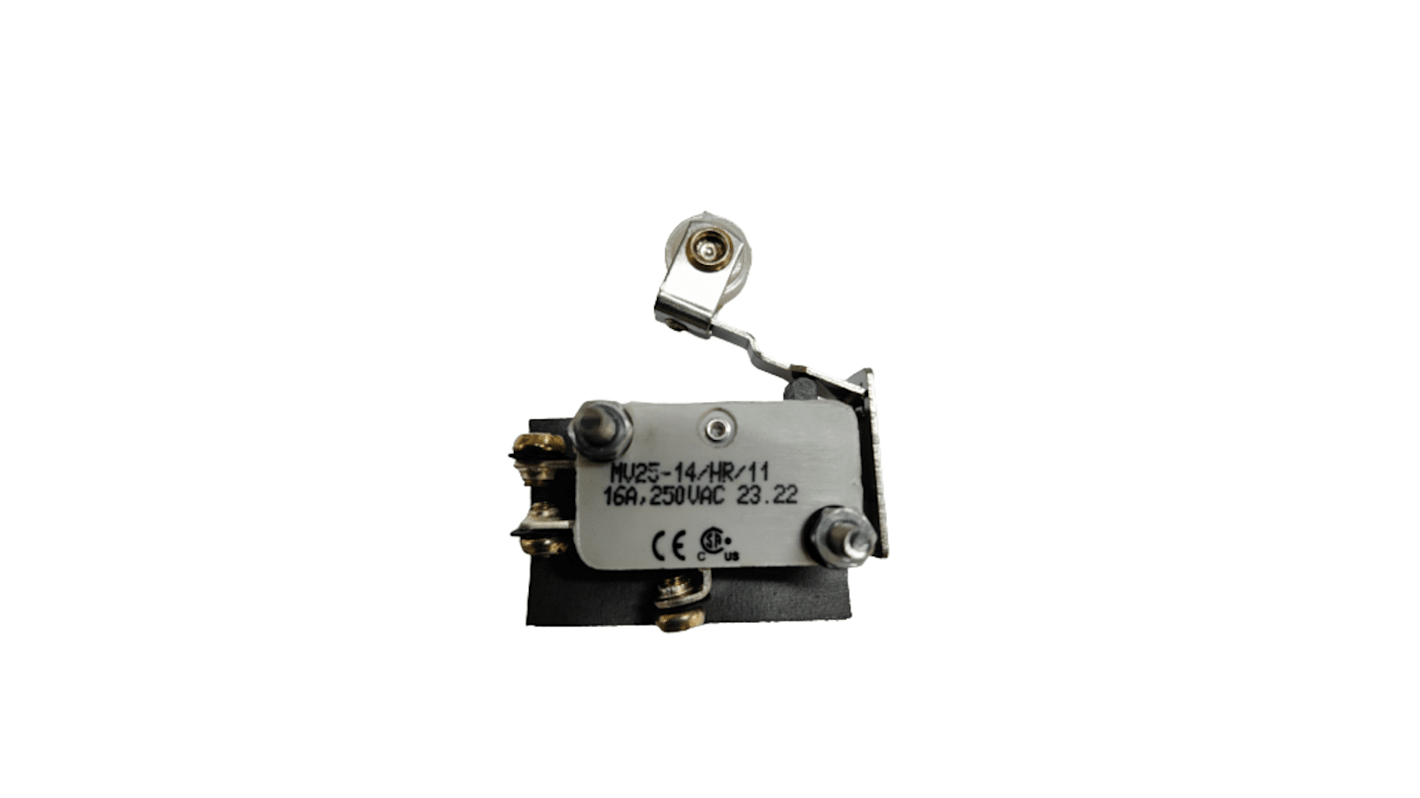

RS PRO 1NO/1NC Heavy Duty Miniature Micro Switch (16 A @ 250V)
The RS PRO versatile miniature Roller Micro Switch is suitable for use with heavy duty applications and is compatible with all industry standard V3 switches. Featuring a Stainless Steel frictionless pivoted lever reliable and consistent action.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Roller Micro Switch ideal for a range of environments and applications.
RS PRO versatile Micro Switches are ideal for many heavy-duty applications including automotive vending machines, telecommunications equipment, security instrumentation, conveyors and machine tools.
Features and Benefits
- Roller lever actuator
- Contact Configuration SPDT
- Contact Arrangement 1NO + 1NC
- 30% Glass filled flame retardant thermoplastic case (UL94 V0)
- Positive snap action
- Silver contacts
- Copper alloy Silver plated M3 Screw terminals
- Total weight of 16.5g
- Side mounted via two M3x25mm (screws, nuts and washers supplied)
Approvals and Standards: CE, CSA, UKCA, IEC 1508-1
