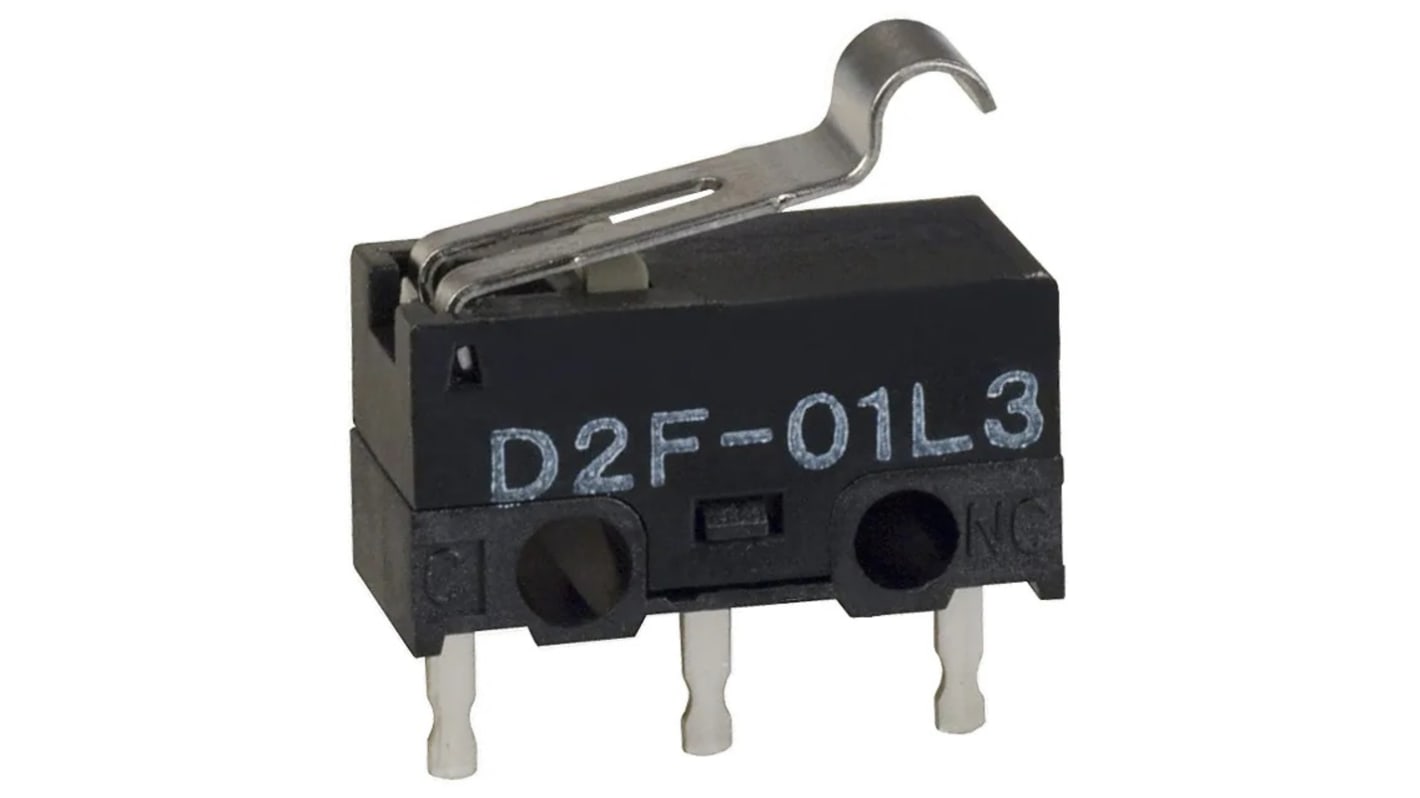

Omron Simulated Roller Lever Microswitch, PCB Terminal, 100 mA at 30 Vdc VA, SPDT, IP40
- RS Stock No.:
- 243-6554
- Mfr. Part No.:
- D2F-01L3
- Brand:
- Omron
Available to back order for despatch 18/02/2025
Added
Price Each (In a Bag of 750)
£0.779
(exc. VAT)
£0.935
(inc. VAT)
| Units | Per unit | Per Bag* |
| 750 - 750 | £0.779 | £584.25 |
| 1500 + | £0.749 | £561.75 |
| *price indicative | ||
- RS Stock No.:
- 243-6554
- Mfr. Part No.:
- D2F-01L3
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The Omron makes this ultra sub miniature basic switch are microswitches which have plenty of terminal variations and long durability, this switch has simulated roller lever actuation. This switch is used in high load applications. This SPDT contact switch operates as ON-(OFF), OFF-(ON). It offers IP40 protection. It is rated for 30Vdc at 100 mA.
Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability
Using insertion molded terminals that prevents flux penetration
In addition to self-clinching PCB, left-angled, right-angled terminals, 2 types of soldering terminals are available
Using insertion molded terminals that prevents flux penetration
In addition to self-clinching PCB, left-angled, right-angled terminals, 2 types of soldering terminals are available
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Simulated Roller Lever |
| Terminal Type | PCB |
| Contact Current Rating | 100 mA at 30 Vdc VA |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
