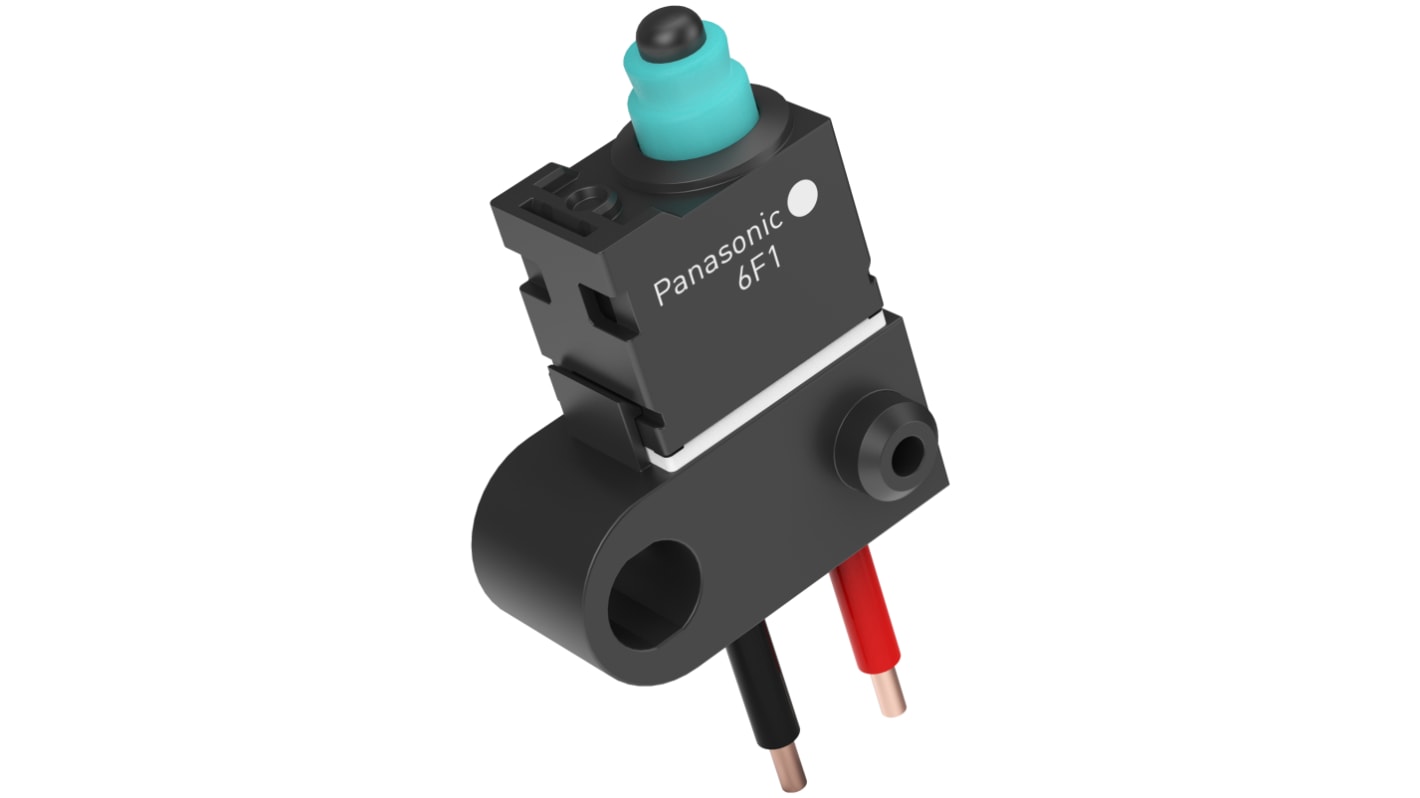

Panasonic Pin Plunger Snap Action Micro Switch, Solder Terminal, 50 mA, 16 V dc, SPST, IP67

View all Micro Switches

Subtotal (1 box of 1000 units)*

£3,025.00

(exc. VAT)

£3,630.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
1000 +£3.025£3,025.00

*price indicative

RS Stock No.:
233-8440
Mfr. Part No.:
ASQM17430-A
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Actuator Type

Pin Plunger

Product Type

Snap Action Micro Switch

Terminal Type

Solder

Switch Contact Current

50 mA

Contact Configuration

SPST

IP Rating

IP67

Operating Force

1.5N

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Microswitch Type

Subminiature

Contact DC Voltage

16V dc

Hazardous Area Certification

No

Standards/Approvals

REACH, RoHS

Series

ASQM1

COO (Country of Origin):
TH
The Panasonic micro switch provides contact reliability to support low level switching loads. It has pin plunger actuator, solder terminals and normally open contact form. The contact force does not depend on the operation stroke. It is used in automobiles (detection of door opening and closing, shift lever position, etc.), household appliances (vacuum cleaners, air conditioners, washing machines, electric power tools, etc.).

IP67 protection rated

Silent operation with sliding contacts
