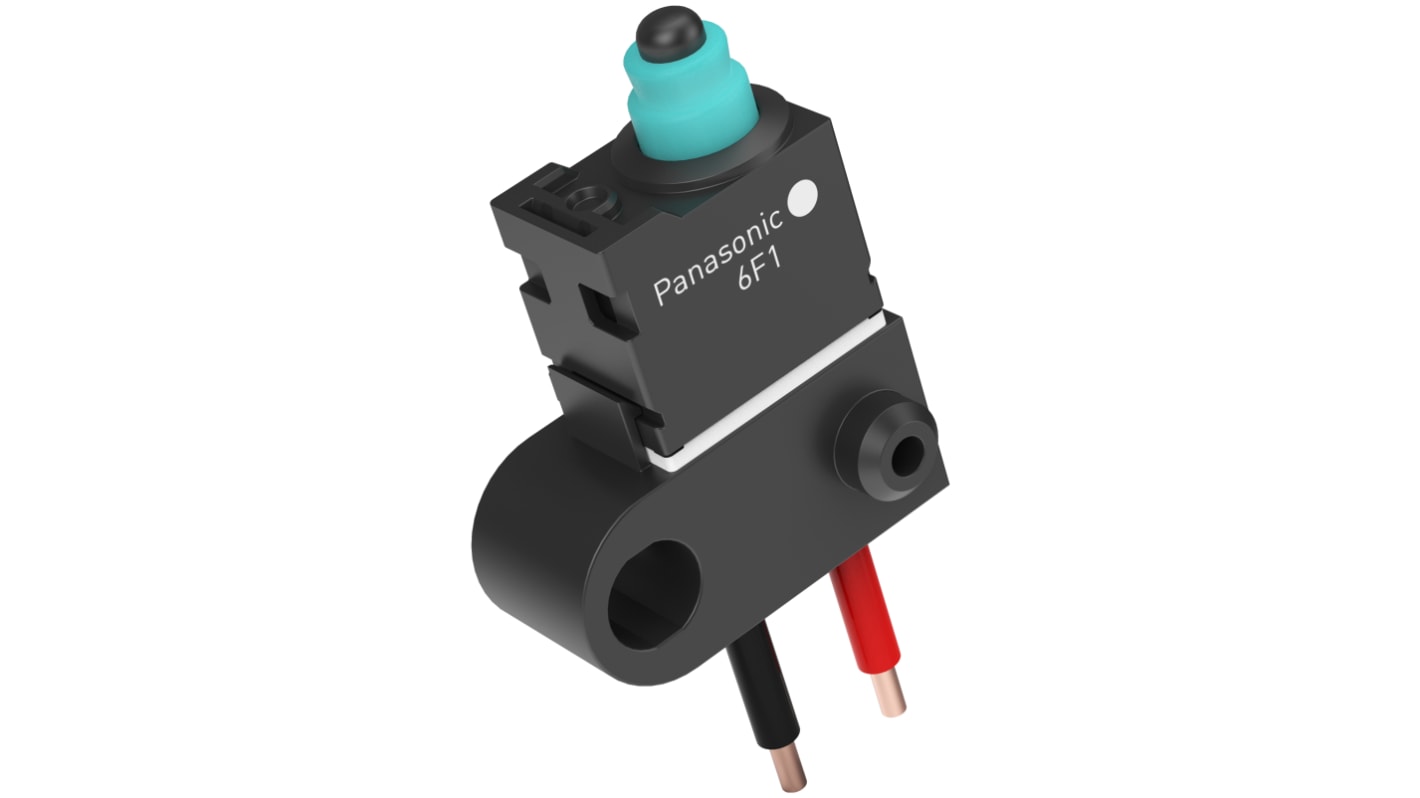

Panasonic Pin Plunger Snap Action Micro Switch, Wire Terminal, 50 mA, 16 V dc, SPST, IP67
- RS Stock No.:
- 233-8420
- Mfr. Part No.:
- ASQM11630-A
- Brand:
- Panasonic
Subtotal (1 box of 240 units)*
£1,502.40
(exc. VAT)
£1,802.40
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 240 + | £6.26 | £1,502.40 |
*price indicative
- RS Stock No.:
- 233-8420
- Mfr. Part No.:
- ASQM11630-A
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Actuator Type | Pin Plunger | |
| Product Type | Snap Action Micro Switch | |
| Terminal Type | Wire | |
| Switch Contact Current | 50 mA | |
| Contact Configuration | SPST | |
| IP Rating | IP67 | |
| Operating Force | 1.5N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact DC Voltage | 16V dc | |
| Microswitch Type | Subminiature | |
| Standards/Approvals | REACH, RoHS | |
| Hazardous Area Certification | No | |
| Series | ASQM1 | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Actuator Type Pin Plunger | ||
Product Type Snap Action Micro Switch | ||
Terminal Type Wire | ||
Switch Contact Current 50 mA | ||
Contact Configuration SPST | ||
IP Rating IP67 | ||
Operating Force 1.5N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact DC Voltage 16V dc | ||
Microswitch Type Subminiature | ||
Standards/Approvals REACH, RoHS | ||
Hazardous Area Certification No | ||
Series ASQM1 | ||
- COO (Country of Origin):
- TH
The Panasonic micro switch provides contact reliability to support low level switching loads. It has pin plunger actuator, bottom wire leads and normally open contact form. The contact force does not depend on the operation stroke. It is used in automobiles (detection of door opening and closing, shift lever position, etc.), household appliances (vacuum cleaners, air conditioners, washing machines, electric power tools, etc.).
IP67 protection rated
Silent operation with sliding contacts
