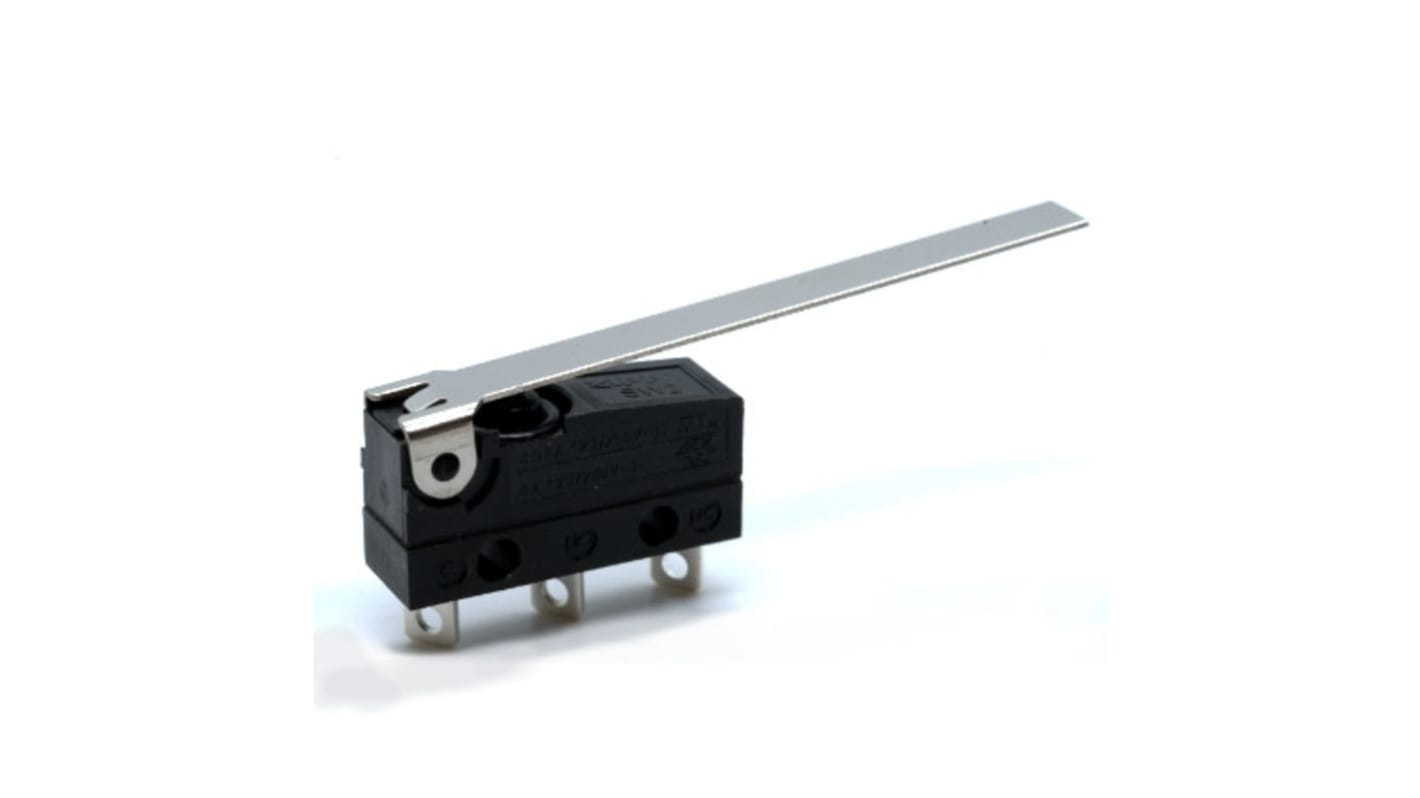

Zippy Snap Micro Switch, Solder Terminal, 6 A, 250 V ac, 30 V dc, SPCO, IP67
- RS Stock No.:
- 185-3893
- Mfr. Part No.:
- SW2-06S1-07A0-Z
- Brand:
- Zippy
Subtotal (1 tray of 500 units)*
£1,155.50
(exc. VAT)
£1,386.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 500 + | £2.311 | £1,155.50 |
*price indicative
- RS Stock No.:
- 185-3893
- Mfr. Part No.:
- SW2-06S1-07A0-Z
- Brand:
- Zippy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Zippy | |
| Actuator Type | Snap | |
| Product Type | Micro Switch | |
| Terminal Type | Solder | |
| Switch Contact Current | 6 A | |
| Contact Configuration | SPCO | |
| Housing Material | Polyamide | |
| IP Rating | IP67 | |
| Operating Force | 39g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Microswitch Type | Snap Action | |
| Contact DC Voltage | 30V dc | |
| Contact AC Voltage | 250V ac | |
| Mechanical Life | 10000Operations | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Series | SW2 | |
| Select all | ||
|---|---|---|
Brand Zippy | ||
Actuator Type Snap | ||
Product Type Micro Switch | ||
Terminal Type Solder | ||
Switch Contact Current 6 A | ||
Contact Configuration SPCO | ||
Housing Material Polyamide | ||
IP Rating IP67 | ||
Operating Force 39g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Microswitch Type Snap Action | ||
Contact DC Voltage 30V dc | ||
Contact AC Voltage 250V ac | ||
Mechanical Life 10000Operations | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Series SW2 | ||
- COO (Country of Origin):
- TW
SW2-06S1-07A0-Z
Zippy SW2 series
The SW2 series is a highly reliable and versatile range of snap action microswitches packaging in an industry standard V4 housing. Electrical ratings of between 0.1 and 10A 125/250VAC (model dependent) mean the SW2 can be used in both low current and more demanding applications, making it suitable for a wide variety of applications. The actuator is sealed according to the IP67 standard, ideal for tough environments where protection against water and dust ingress is required. Termination options include solder, quick connect and 300 mm wire leads. The range has an operating temperature of -40 to 125 °C (model dependent) and boasts a mechanical service life of min. 2 million cycles. The SW2 series is both ENEC and UL certified so suitable for global use.
Features & Benefits
IP67 protection against water and dust ingress
Wide range of electrical ratings
High quality UL94V-0 PBT switch housing and button
Terminal options include wire leads for easy installation
High mechanical service life
Part Number SW2-06S1-07A0-Z
IP67 sealed actuator
Electrical rating 6A 125/250V AC
S.P.D.T. contact configuration
Operating force max. 39 gf
Operating temperature of -40 to 125 °C
Solder terminals
Straight long lever actuator 40.7 mm long (from pivot point)
ENEC & UL certified
