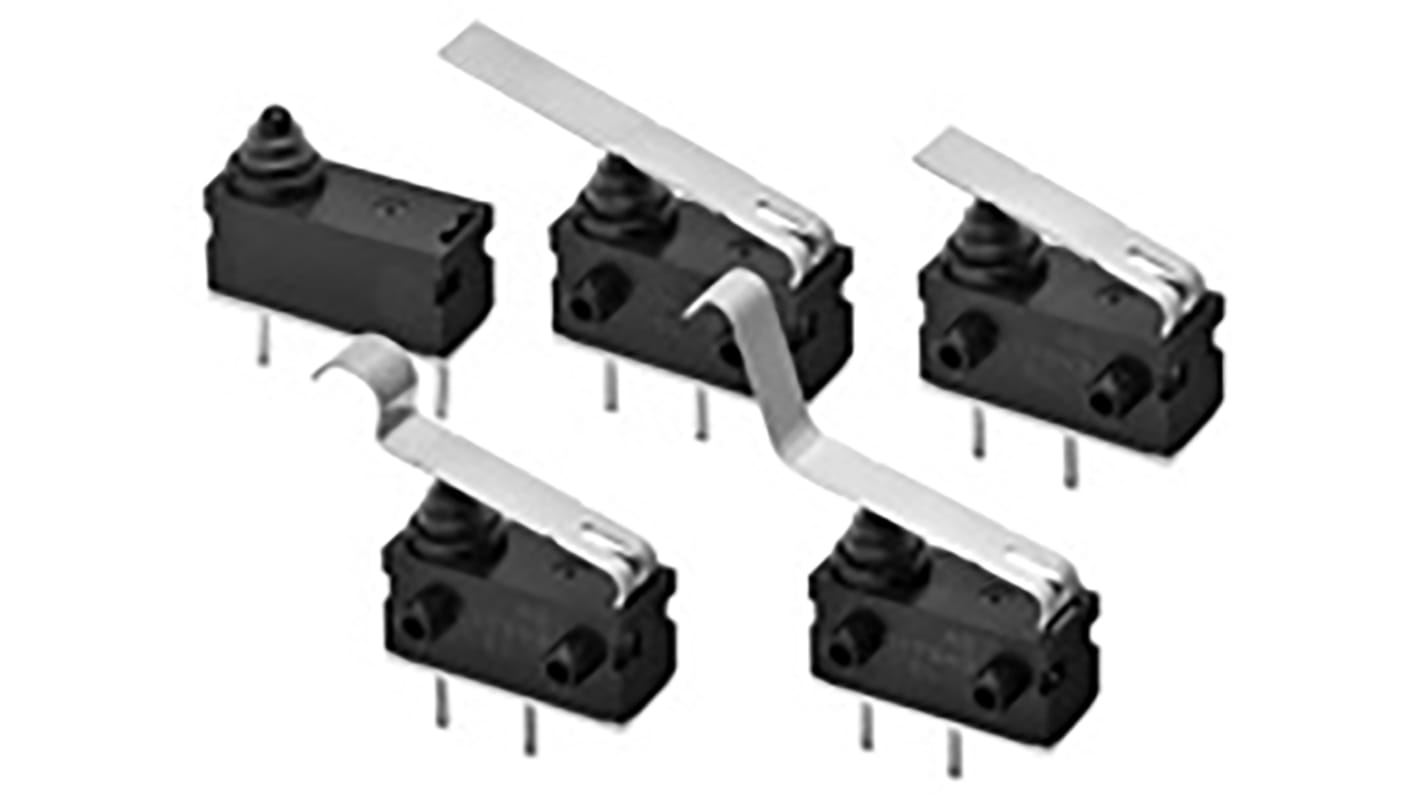

Omron Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67

RS Stock No.:: 174-8284
Mfr. Part No.:: D2AW-ER053D R
Brand:: Omron

Omron Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67

50 In stock - FREE next working day delivery available

Price Each (In a Pack of 10)

£1.434

(exc. VAT)

£1.721

(inc. VAT)

Units	Per unit	Per Pack*
10 - 90	£1.434	£14.34
100 - 240	£1.348	£13.48
250 +	£1.262	£12.62

*price indicative

RS Stock No.:: 174-8284
Mfr. Part No.:: D2AW-ER053D R
Brand:: Omron

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Long stroke seal switch with high reliability and high insulation performance

Double reliability by twin contacts (=Clipping contact). Foreign materials are cleaned out by the sliding contacts.
Quiet operating sound by sliding contact construction is needed for high grade car.
High performance of Insulation resistance by unique contact structure.

Specifications

Attribute	Value
Actuator Type	Long Straight Lever
Terminal Type	PCB
Contact Current Rating	100 mA
Contact Configuration	SPST
IP Rating	IP67
Operating Force	1.5 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switch Housing	D2 Housing
Contact Material	Silver
Case Material	Rubber
Release Force	0.1N
Voltage Rating	12V dc
Operating Temperature Range	-40 → +85°C
Standards Met	IEC 60529
