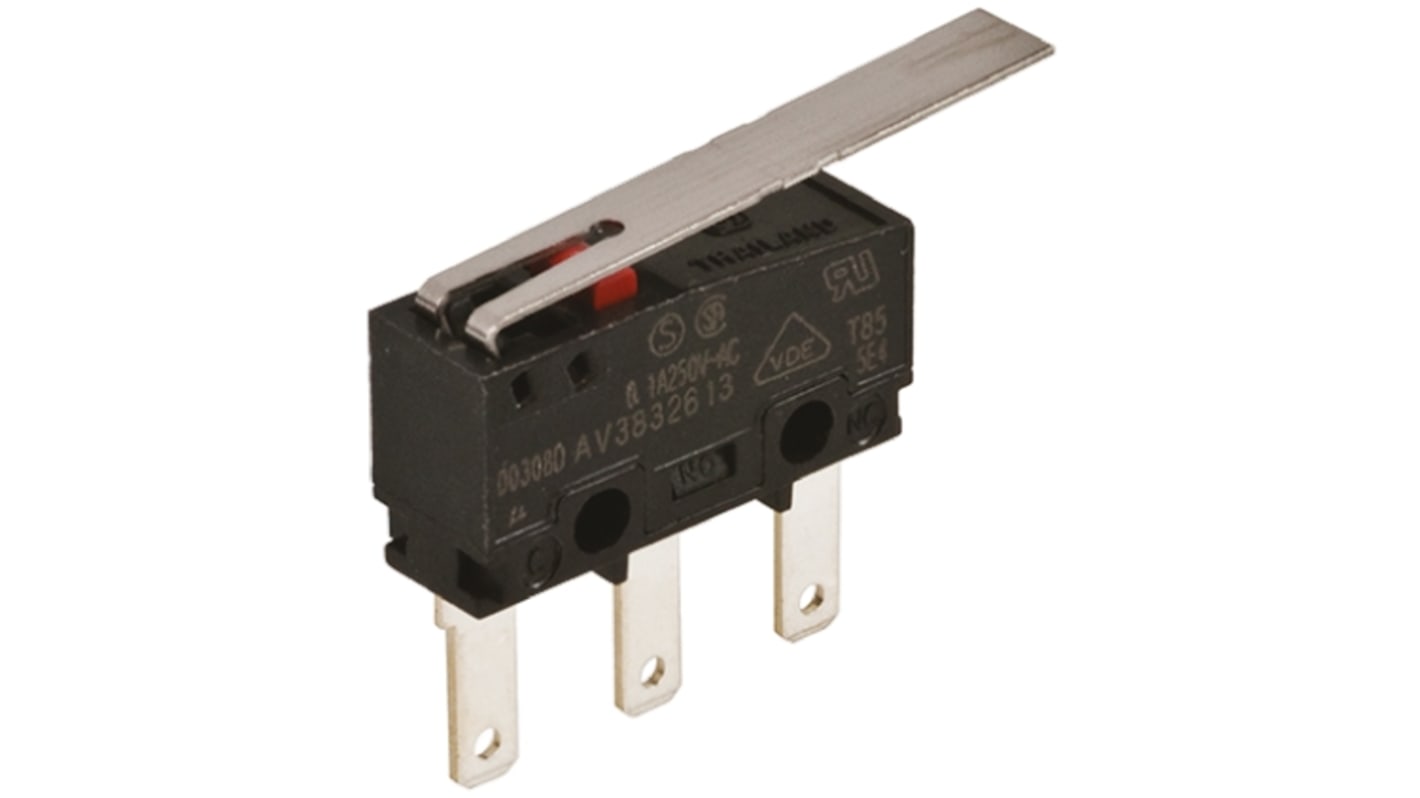

Panasonic Long Hinge Lever Micro Switch, Tab Terminal, 5 A, 250 V ac, SPCO
- RS Stock No.:
- 173-8451
- Mfr. Part No.:
- AVL3835
- Brand:
- Panasonic
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 173-8451
- Mfr. Part No.:
- AVL3835
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Micro Switch | |
| Actuator Type | Long Hinge Lever | |
| Terminal Type | Tab | |
| Switch Contact Current | 5 A | |
| Contact Configuration | SPCO | |
| Operating Force | 0.44N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | Subminiature | |
| Contact AC Voltage | 250V ac | |
| Standards/Approvals | SEMKO, RoHS, UL, CSA, VDE | |
| Series | AVL | |
| Mechanical Life | 10Operations | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Micro Switch | ||
Actuator Type Long Hinge Lever | ||
Terminal Type Tab | ||
Switch Contact Current 5 A | ||
Contact Configuration SPCO | ||
Operating Force 0.44N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type Subminiature | ||
Contact AC Voltage 250V ac | ||
Standards/Approvals SEMKO, RoHS, UL, CSA, VDE | ||
Series AVL | ||
Mechanical Life 10Operations | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- JP
AVL Subminiature High Precision Switches (FS-T long life version)
The AVL subminiature high precision micro switches are of a flux resistant construction with integrally moulded terminals and are available with various actuator and terminal styles. Typical applications include communication equipment, vending machines, security systems, data systems and medical equipment.
Cross-line terminals.
Common pitch, right angle, left angle terminals for PC board.
Long mechanical life of 3 x 107 operations.
Long electrical life of 5 x 104 at 20 cpm (AgNi alloy contacts), 2 x 105 at 20 cpm (gold clad contacts)
