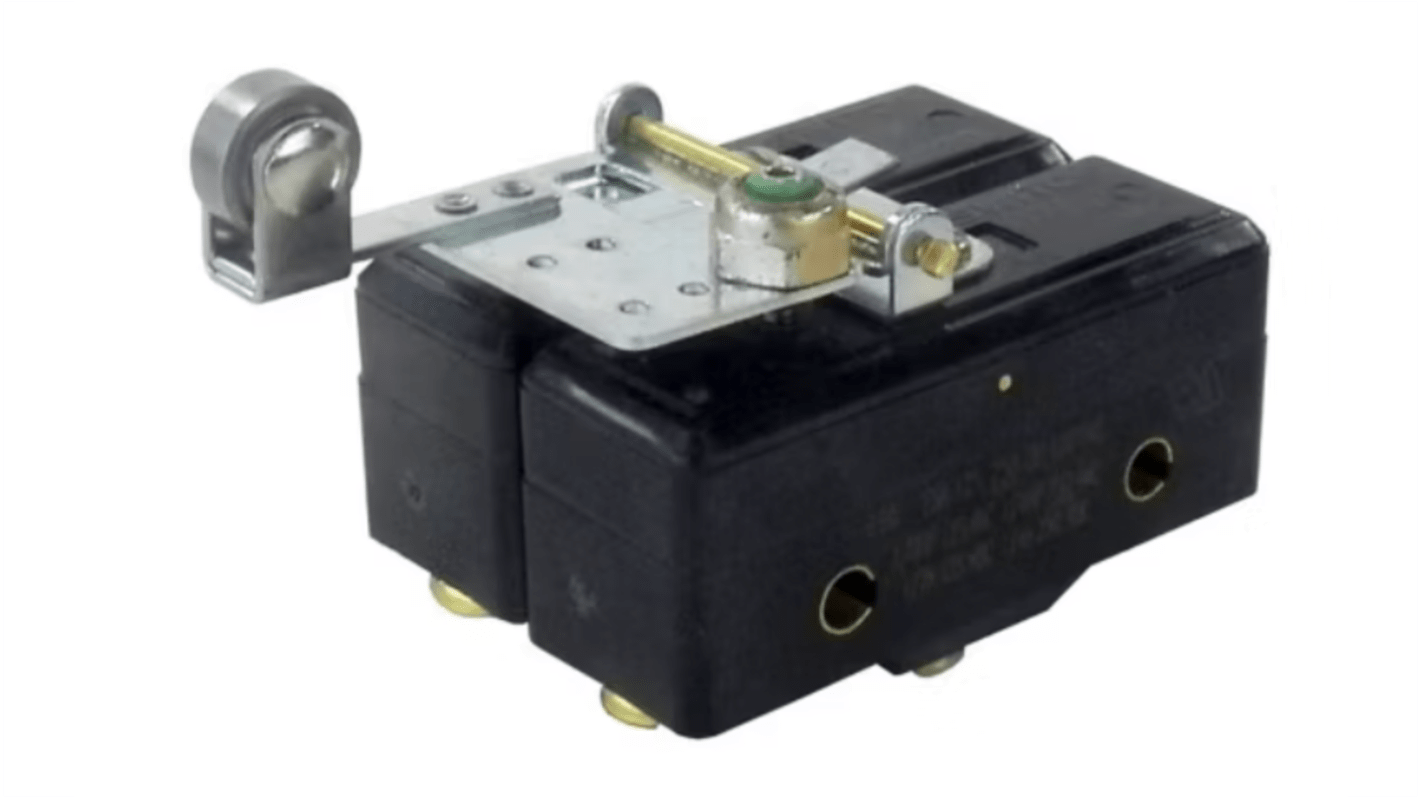

Honeywell Roller Lever Micro Switch, Screw Terminal, 15 A, 480 V ac, 250 V dc, SPDT, IP64

RS Stock No.:: 636-354
Mfr. Part No.:: 6AS36
Brand:: Honeywell

Honeywell Roller Lever Micro Switch, Screw Terminal, 15 A, 480 V ac, 250 V dc, SPDT, IP64

Subtotal (1 unit)*

£307.80

(exc. VAT)

£369.36

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 28 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£307.80

*price indicative

RS Stock No.:: 636-354
Mfr. Part No.:: 6AS36
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Roller Lever
	Product Type	Micro Switch
	Terminal Type	Screw
	Contact Configuration	SPDT
	Housing Material	General Purpose Phenolic
	IP Rating	IP64
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	204°C
	Contact AC Voltage	480V ac
	Contact DC Voltage	250V dc
	Depth	35.1mm
	Length	49.3mm
	Mechanical Life	20000000Cycles
	Standards/Approvals	ENEC, CSA, CE, UL, UKCA, MIL-PRF-8805
	Series	6AS
	Hazardous Area Certification	No

	Select all
	Brand Honeywell
	Actuator Type Roller Lever
	Product Type Micro Switch
	Terminal Type Screw
	Contact Configuration SPDT
	Housing Material General Purpose Phenolic
	IP Rating IP64
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 204°C
	Contact AC Voltage 480V ac
	Contact DC Voltage 250V dc
	Depth 35.1mm
	Length 49.3mm
	Mechanical Life 20000000Cycles
	Standards/Approvals ENEC, CSA, CE, UL, UKCA, MIL-PRF-8805
	Series 6AS
	Hazardous Area Certification No

Datasheet - 6AS36

COO (Country of Origin):: MX

Honeywell Micro Switch, 15A Switch Contact Current, SPDT Contact Configuration - 6AS36

This micro switch is a Compact electromechanical device designed for position sensing and control in industrial systems. It incorporates a roller lever actuator and is intended for use where dependable single-pole changeover switching is required. The unit is suitable for installations that demand screw-terminal connectivity and can be deployed across a range of temperature extremes and operating environments.

Features and Benefits:

• SPDT contact arrangement provides single-pole changeover flexibility
• 15A contact rating supports moderate current switching loads
• Electrical capability up to 480V AC and 250V DC handles varied supply types
• Mechanical endurance rated at 20 million cycles reduces maintenance frequency
• IP64 ingress protection permits operation in dusty and water-splashed areas
• Wide operating temperature range from -55°C to 204°C sustains harsh conditions

Applications

• Suitable for limit switching in industrial automation systems
• Ideal for actuator position feedback in mechanical assemblies
• Used for safety interlock detection on electrical panels
• Can be used for control inputs in heavy-duty machinery
• Suitable for environmental test rigs requiring high-temperature components

What housing material is used and why does it matter?

The enclosure is MADE from general-purpose phenolic which offers electrical insulation and thermal resistance suitable for demanding environments.

How are electrical connections MADE to the switch?

Terminals use screw-type fastenings, allowing secure conductor clamping for reliable contact in vibration-prone applications.

Which approvals and standards does it comply with?

It meets multiple approvals including ENEC, CSA, CE, UL, UKCA and conforms to MIL-PRF-8805 for specified military performance criteria.

What are the physical envelope details for panel integration?

The device measures 49.3mm in length, 17.5mm in width and 35.1mm in depth for Compact mounting considerations.
