Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

UL; CSA

Transfer quickly between contact states with this powerful microswitch from Honeywell. This device is highly versatile and compatible with a wide range of actuators. Its silver-coated contact has impressive electrical and thermal conductivity, enabling smooth operations in heavy-duty electrical installations. The switch features an elongated mounting hole that makes installation and maintenance extra-convenient. With a power load switching capacity of up to 25 amperes, this robust microswitch is well-suited to industrial machinery and large-scale equipment.

• Stainless-steel plunger offers corrosion resistance and durability
• Phenolic housing is lightweight and strong
• Maximum temperature of up to +400°F / 204°C for use in extreme temperatures
• Long-lasting beryllium-copper spring for strength and smoother operation
• Versatile mounting via terminal screws or panel mount bushing, with fixing nuts supplied

• Military equipment
• Manufacturing
• Laboratory installations
• Food-processing machinery

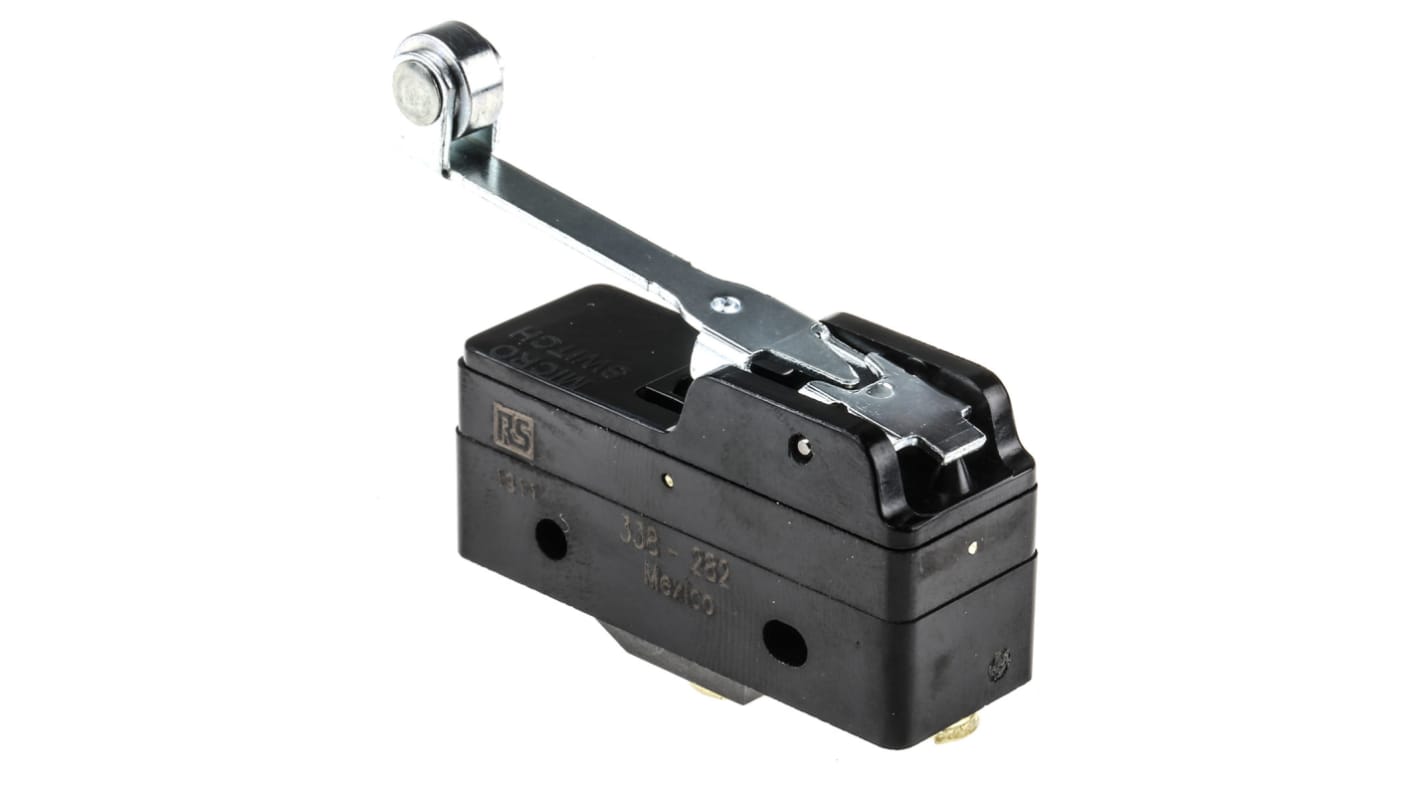

This heavy-duty roller lever switch has a SPDT NO/NC contact configuration. This stands for single pole, double throw, normally open/normally closed. It means the switch has a single input and can connect and switch between two outputs. When the lever actuates the switch, voltage and current are directed towards either the normally open or normally closed terminal.

UL; CSA
