RS PRO Short Roller Lever Micro Switch, Screw, Solder, Quick Connect Terminal, 16A, Solder, IP40
- RS Stock No.:
- 241-247
- Brand:
- RS PRO
Subtotal (1 unit)*
£4.16
(exc. VAT)
£4.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 74 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £4.16 |
*price indicative
- RS Stock No.:
- 241-247
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Actuator Type | Short Roller Lever | |
Terminal Type | Screw, Solder, Quick Connect | |
Contact Current Rating | 16A | |
Contact Configuration | Solder | |
IP Rating | IP40 | |
Operating Force | 240gms | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | 85°C | |
Switch Housing | PBT | |
Contact Material | Copper Alloy | |
Case Material | PBT | |
Mechanical Life | 100000Operations | |
Release Force | 50gf | |
Voltage Rating | 250V | |
Operating Temperature Range | -55 → 85°C | |
Switch Operation | Snap Action | |
Standards Met | CE, cCSAus, IEC 1058-1 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Actuator Type Short Roller Lever | ||
Terminal Type Screw, Solder, Quick Connect | ||
Contact Current Rating 16A | ||
Contact Configuration Solder | ||
IP Rating IP40 | ||
Operating Force 240gms | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Switch Housing PBT | ||
Contact Material Copper Alloy | ||
Case Material PBT | ||
Mechanical Life 100000Operations | ||
Release Force 50gf | ||
Voltage Rating 250V | ||
Operating Temperature Range -55 → 85°C | ||
Switch Operation Snap Action | ||
Standards Met CE, cCSAus, IEC 1058-1 | ||
- COO (Country of Origin):
- IN

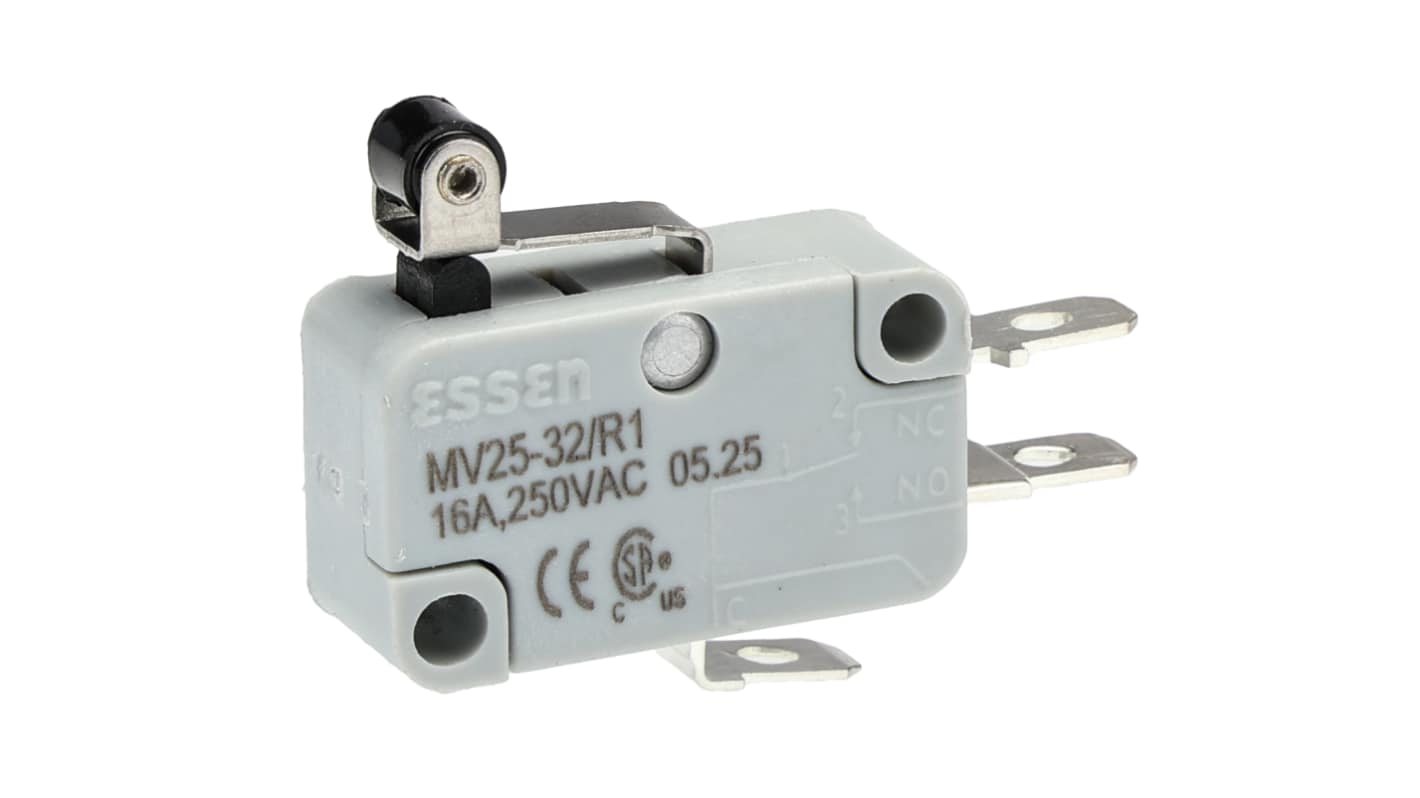

RS PRO Micro Switch, Short Roller Lever
The RS PRO Micro Switch with a short roller lever is designed for applications requiring precise and reliable switching. Ideal for tight spaces, this micro switch offers a strong electrical connection with minimal operating force, ensuring long-lasting performance.
Features and Benefits
Designed for effortless reset, requiring very little force to operate, yet offers long-lasting reliability
Compact design fits into tight spaces while providing a strong electrical connection
Silver/gold plated for enhanced conductivity and durability
Quick and precise response due to snap-action feature
Durable fine silver contacts ensure reliable conductivity
Built with a robust glass-filled nylon body, copper alloy terminals, and a thermoplastic plunger for dependable performance
Compact design fits into tight spaces while providing a strong electrical connection
Silver/gold plated for enhanced conductivity and durability
Quick and precise response due to snap-action feature
Durable fine silver contacts ensure reliable conductivity
Built with a robust glass-filled nylon body, copper alloy terminals, and a thermoplastic plunger for dependable performance
Applications
Suitable for heavy-duty applications
Compatible with all industry-standard V3 switches
Ideal for situations where space is at a premium
Compatible with all industry-standard V3 switches
Ideal for situations where space is at a premium
Additional Information
Conforms to IEC 1058-1 standard
Temperature range: -55 to 85°C
Terminal types: Screw, Solder, Quick Connect
IP Rating: IP40
Temperature range: -55 to 85°C
Terminal types: Screw, Solder, Quick Connect
IP Rating: IP40
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
