Advance Tapes AT502 Non-Conductive Metallic Tape, 50 mm x 45 m 110 °C Max

RS Stock No.:: 176-573
Mfr. Part No.:: AT502
Brand:: Advance Tapes

Advance Tapes AT502 Non-Conductive Metallic Tape, 50 mm x 45 m 110 °C Max

Bulk discount available

Subtotal (1 unit)*

£8.82

(exc. VAT)

£10.58

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

246 unit(s) ready to ship
Plus 42 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 5	£8.82
6 - 14	£8.47
15 +	£8.30

*price indicative

Every Fix Made Easy. Every Day.

Keep your operations running smoothly with our curated selection of high‑performing tools, equipment and consumables—built for everyday maintenance tasks through to mission‑critical repairs. Whatever the job, our trusted range is ready to go when you are.

Shop the Maintenance Essentials

RS Stock No.:: 176-573
Mfr. Part No.:: AT502
Brand:: Advance Tapes

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Advance Tapes
	Backing Material	Polythene
	Product Type	Metallic Tape
	Thickness	0.07mm
	Width	50 mm
	Length	45m
	Conductivity	Non-Conductive
	Adhesion Strength	3.6N/cm
	Adhesive Material	Aluminium Foil
	Tensile Strength	12N/cm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	110°C
	Complies with EN Legislation	No
	Standards/Approvals	No
	Model Number	AT502

	Select all
	Brand Advance Tapes
	Backing Material Polythene
	Product Type Metallic Tape
	Thickness 0.07mm
	Width 50 mm
	Length 45m
	Conductivity Non-Conductive
	Adhesion Strength 3.6N/cm
	Adhesive Material Aluminium Foil
	Tensile Strength 12N/cm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 110°C
	Complies with EN Legislation No
	Standards/Approvals No
	Model Number AT502

Datasheet

Non Compliant

COO (Country of Origin):: GB

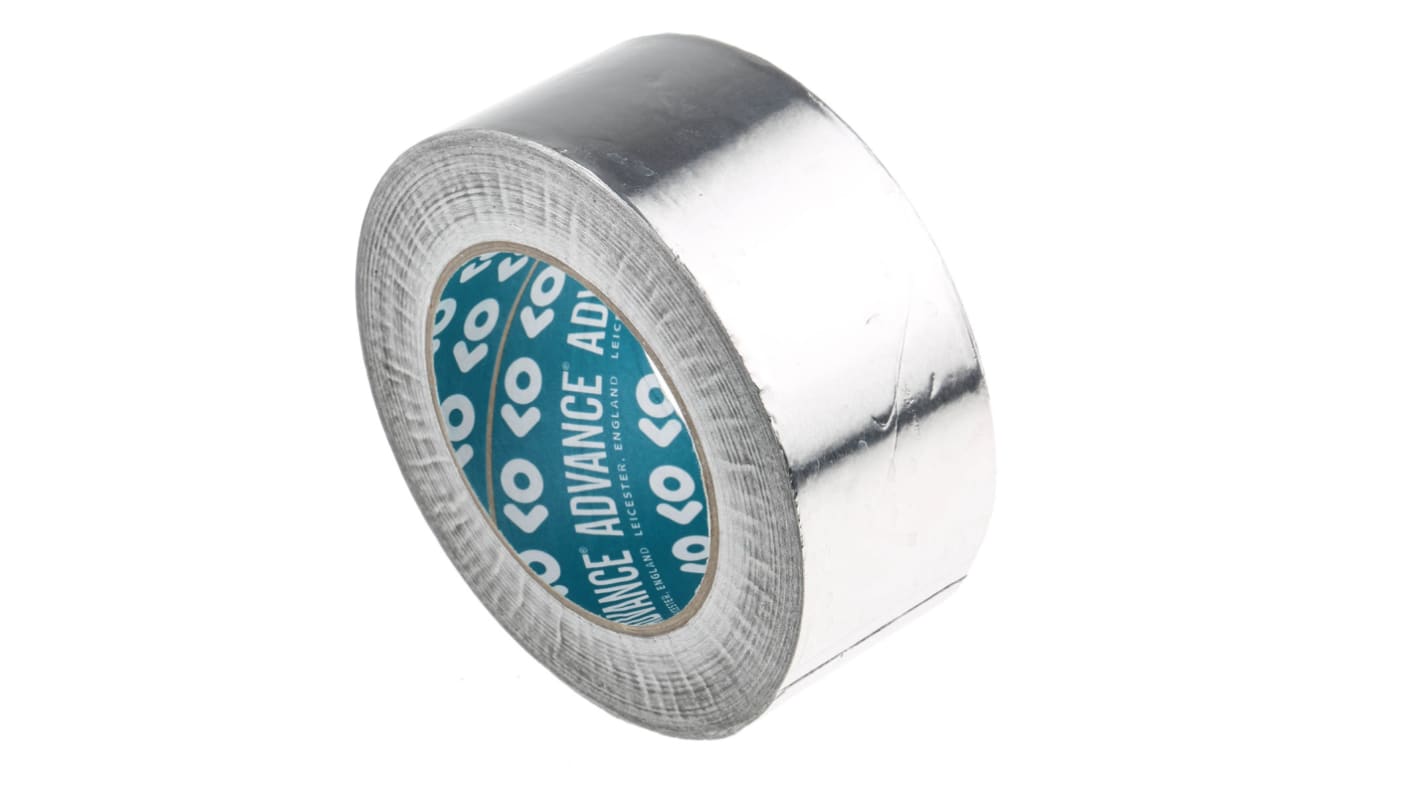

Advance Tapes Aluminium Tape

The Advance Tapes non-conductive aluminium foil tape is backed with a strong, polythene-coated release paper. It is a 30μm aluminium foil, coated one side with an acrylic, pressure-sensitive adhesive. This tape is 0.07mm thick, 50mm wide and 45m long.

Note:

There is no electrolytic corrosion factor associated with these products.

Features and Benefits

Breaking load is 12N/cm

Elongation is 5%

Operating temperature ranges between -20°C and 110°C

Flame retardant and self-extinguishing

Good high-temperature resistance

Easy unwind and tear

Water-resistant

Excellent water vapour resistance

Joining foil-faced glass fibre or rock wool suitable for heat reflection

Sealing cold store insulation, packing refrigerated export containers

Decoration of point of sale media

Sealing double glazing units

Peel off backing

Applications

Heating and ventilation

Construction industry

Manufacturing

Duct sealing

Certifications

BS476 part 6 and part 7 category 1

Fire class M1

Class O
