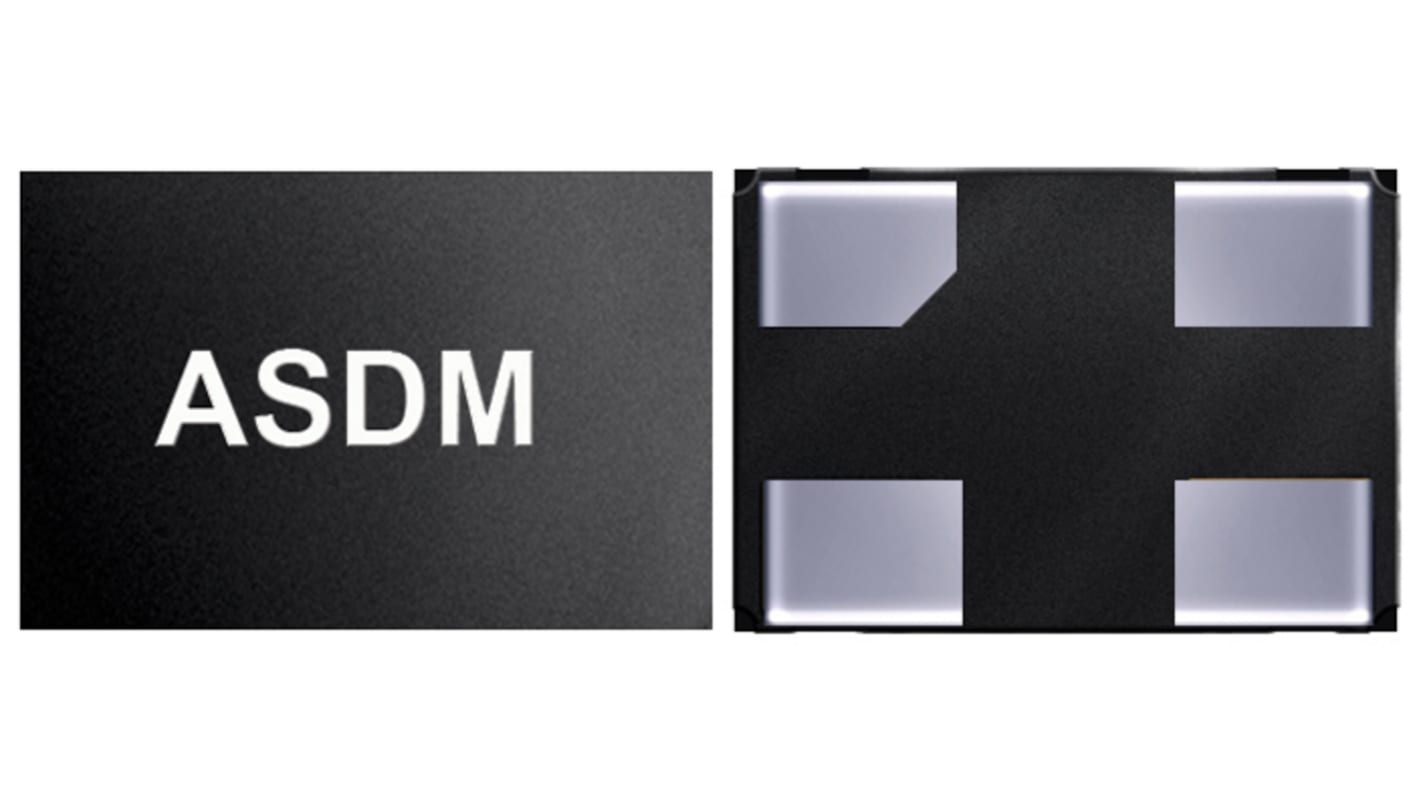

Abracon 25MHz MEMS Oscillator, 4-Pin QFN, ±50ppm, ASDM1-25.000MHZ-LC-T
- RS Stock No.:
- 171-2323
- Mfr. Part No.:
- ASDM1-25.000MHZ-LC-T
- Brand:
- Abracon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 171-2323
- Mfr. Part No.:
- ASDM1-25.000MHZ-LC-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Oscillator Type | MEMS | |
| Maximum Output Frequency | 25MHz | |
| Frequency Stability | ±50ppm | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 4 | |
| Dimensions | 2.5 x 2 x 0.85mm | |
| Length | 2.5mm | |
| Width | 2mm | |
| Height | 0.85mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Oscillator Type MEMS | ||
Maximum Output Frequency 25MHz | ||
Frequency Stability ±50ppm | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 4 | ||
Dimensions 2.5 x 2 x 0.85mm | ||
Length 2.5mm | ||
Width 2mm | ||
Height 0.85mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Ultra Miniature Pure Silicon Clock Oscillator
MEMS Technology by Discera
Low Power Consumption <10mA
Exceptional Stability Over Temp. at 40 to +85°C
Low Cost-Compact QFN Plastic Packaging
Compact Package design
CCD Clock for VTR Camera
Equipment Connected to PCs
Low Profile Equipment
Computers and Peripherals
Lower Cost Crystal Oscillator Replacement
Portable Electronics (MP3 Players, Games)
Consumer Electronics such as TV’s, DVR’s, etc.
Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
Demanding Military & Automotive Electronics
MEMS Technology by Discera
Low Power Consumption <10mA
Exceptional Stability Over Temp. at 40 to +85°C
Low Cost-Compact QFN Plastic Packaging
Compact Package design
CCD Clock for VTR Camera
Equipment Connected to PCs
Low Profile Equipment
Computers and Peripherals
Lower Cost Crystal Oscillator Replacement
Portable Electronics (MP3 Players, Games)
Consumer Electronics such as TV’s, DVR’s, etc.
Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
Demanding Military & Automotive Electronics
