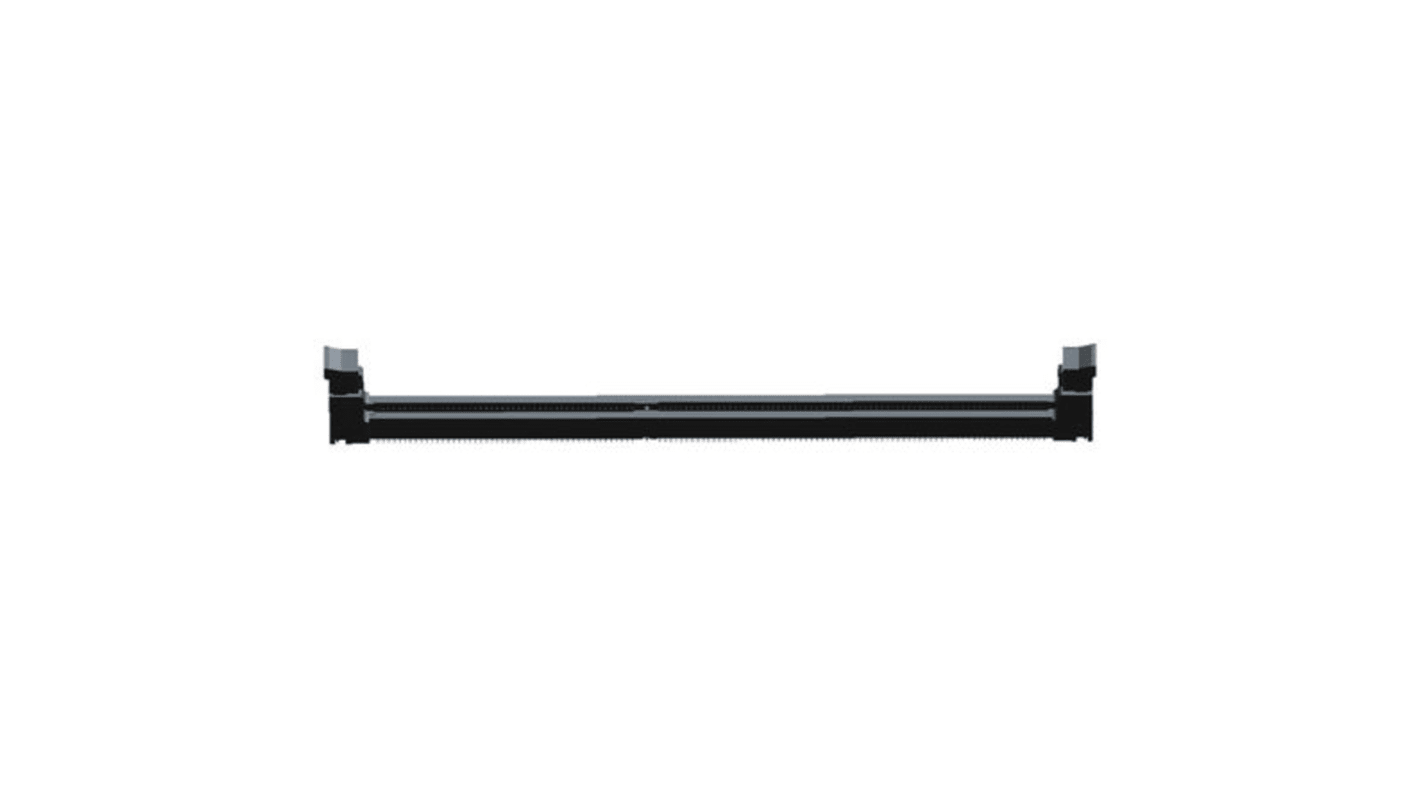

TE Connectivity 1mm Pitch 240 Way, Straight SMT Mount DDR3 DIMM Socket ,1.5 V
- RS Stock No.:
- 717-6680
- Mfr. Part No.:
- 2040727-1
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 717-6680
- Mfr. Part No.:
- 2040727-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| Body Orientation | Straight | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Number of Contacts | 240 | |
| Pitch | 1mm | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| SDRAM Type | DDR3 | |
| Latching | Yes | |
| Row Spacing | 5.3mm | |
| Voltage Rating | 1.5 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Body Orientation Straight | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 240 | ||
Pitch 1mm | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Housing Material Liquid Crystal Polymer | ||
SDRAM Type DDR3 | ||
Latching Yes | ||
Row Spacing 5.3mm | ||
Voltage Rating 1.5 V | ||
DIMM Socket, 240-Way
This DIMM (Dual In-line Memory Module) socket is for the next generation DDR 2 (Double Data Rate) SDRAM main memory technology for Mobile, Desktop, Server and Communication Equipment. This technology will replace the current DDR SDRAM that uses the 184 position socket.
Dual row, 1mm contact spacing
Same reliable anti-stubbing contact design as the current 184 position DDR socket
Standard plastic latches and extractors insure proper module retention and extraction
High temperature thermoplastic housing material
Same reliable anti-stubbing contact design as the current 184 position DDR socket
Standard plastic latches and extractors insure proper module retention and extraction
High temperature thermoplastic housing material
