Microchip 8 bit Daughter Board - AC164122

  • RS Stock No. 667-7909
  • Mfr. Part No. AC164122
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

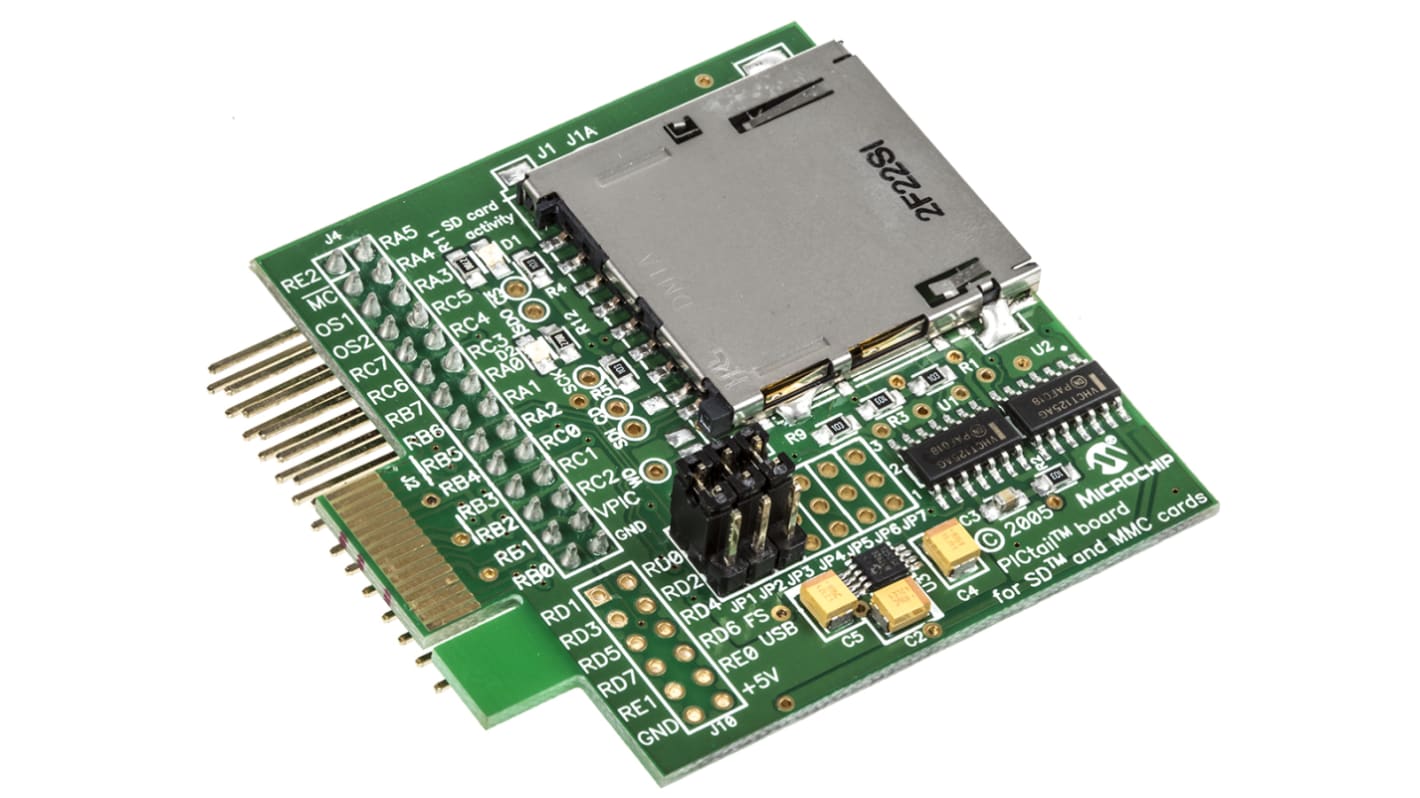

PICtail™ Plus SD/MMC Daughter Board

The SD/MMC PICtail Plus Daughter Board interfaces a Secure Digital (SD) or Multi-Media Card(MMC) to the SPI bus of a microcontroller.

Supports wide range of SD cards listed in AN1003
Supports auto-triggering of files on SD cards
Operates on wide range of voltages from +3.3 to +5.0Vdc
Works with both PICtail™ and PICtail™ Plus connectors
Compatible with all 16-bit products including Explorer 16 Development Board, PICDEM HPC Explorer and PICDEM FS USB Demo boards

Specifications
Attribute Value
Kit Classification Daughter Board
2 In stock - FREE next working day delivery available
Price Each
£ 33.76
(exc. VAT)
£ 40.51
(inc. VAT)
Units
Per unit
1 +
£33.76
