- RS Stock No.:
- 800-6911
- Mfr. Part No.:
- 47553-2001
- Brand:
- Molex
310 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.37
(exc. VAT)
£2.84
(inc. VAT)
Units | Per unit |
1 + | £2.37 |
- RS Stock No.:
- 800-6911
- Mfr. Part No.:
- 47553-2001
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

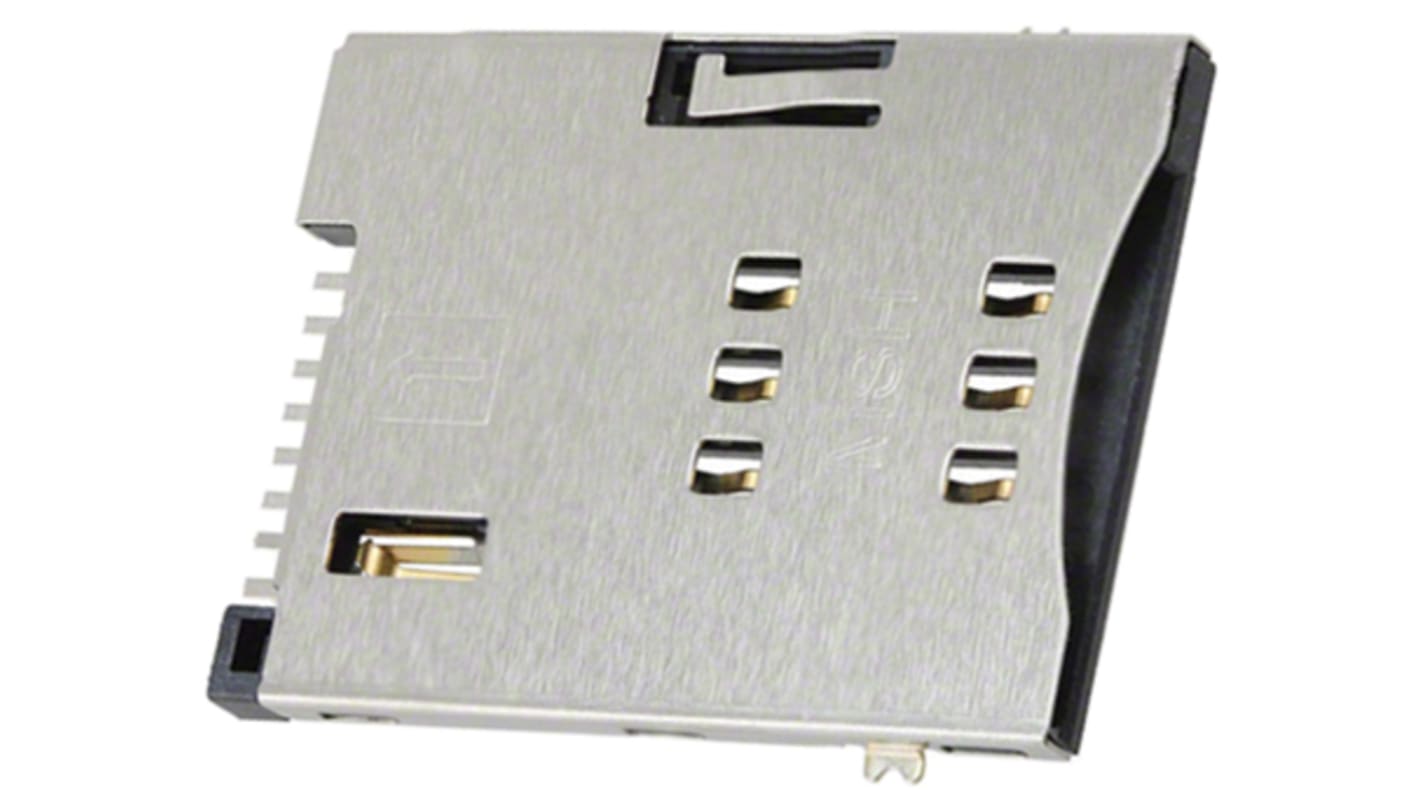

Molex Push-Push SIM Card Socket Connectors - 47553 Series
47553 Series 6 circuit SIM card socket connectors with a 2.54 mm pitch and a low profile height of 1.8 mm. The standard socket form factor of these SIM card sockets allows all industry standard SIM cards to be used. These SIM card sockets feature a push-push mechanism for easy insertion or removal of the SIM card and two card detect pins. The housings of these SIM card sockets are made from high temperature thermoplastic that can withstand lead-free processing. Fully shielded covers provide protection against EMI interference.
Features and Benefits
• Low profile 1.8 mm design
• Push-push mechanism for easy card insertion and removal
• Card detection pins
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• Mating cycles of up to 5000
• PCB alignment pegs
• Push-push mechanism for easy card insertion and removal
• Card detection pins
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• Mating cycles of up to 5000
• PCB alignment pegs
Product Application Information
These 47553 series SIM card socket connectors are suitable for use in a wide range of mobile communication devices. Applications include Notebook PCs, laptops, tablet PCs, cellular phones, smartphones, PDAs and GPS tracking devices
Memory Card Connectors
Specifications
Attribute | Value |
---|---|
Card Type | Mini SIM Card |
Insertion/Removal Method | Push/Push |
Gender | Female |
Number of Contacts | 6 |
Pitch | 1.27mm |
Body Orientation | Straight |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold |
Termination Method | Solder |
Housing Material | Thermoplastic |
Length | 26.5mm |
Width | 19.35mm |
Depth | 2.34mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -30°C |
Dimensions | 26.5 x 19.35 x 2.34mm |
Series Number | 47553 |
