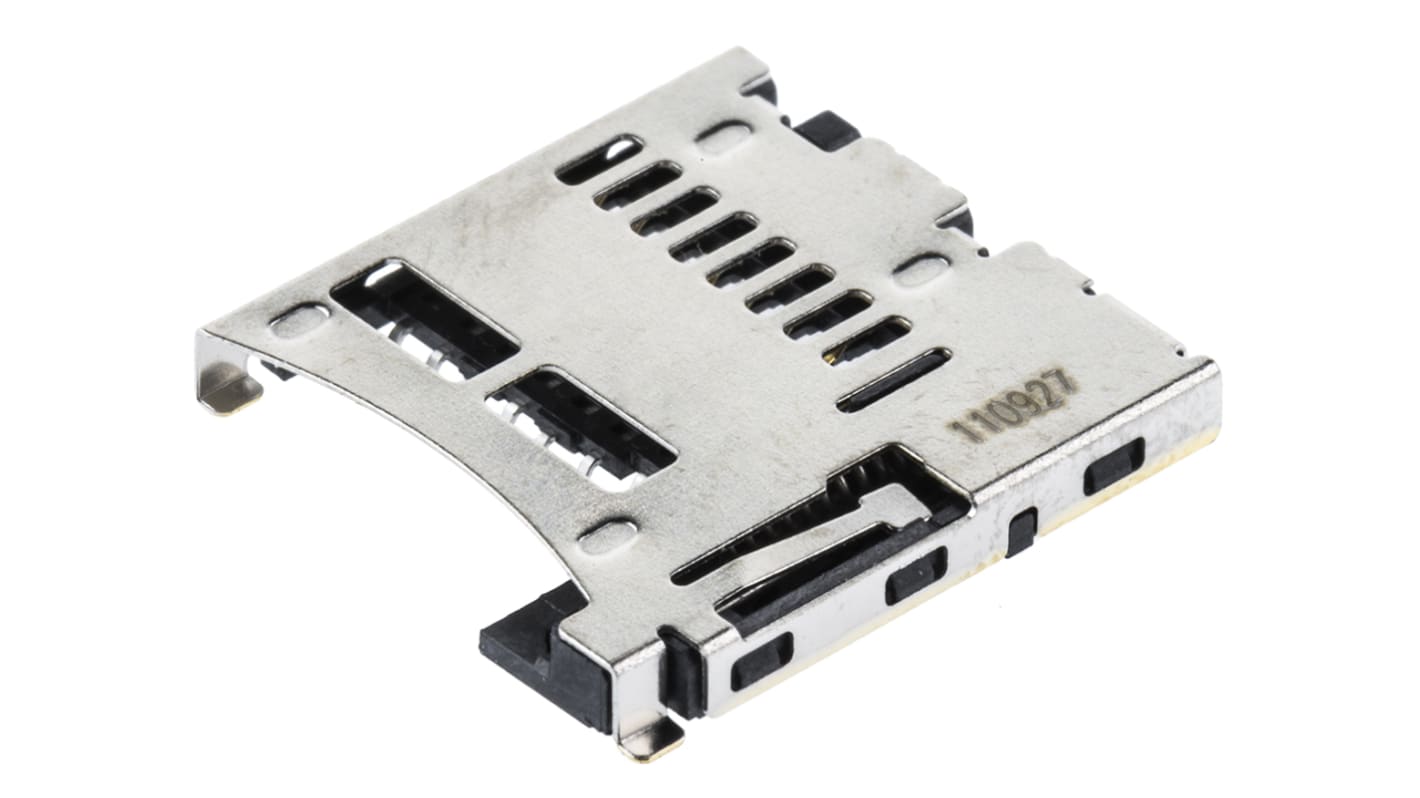

Molex, 47337 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination

View all Memory Card Connectors
Unavailable
RS will no longer stock this product.
Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Molex, 47352 8 Way Right Angle Push-Push Micro SD Memory Card Connector With Solder Termination
RS Stock No.
720-6016

Each

£3.71

(exc. VAT)

£4.45

(inc. VAT)

RS Stock No.:
720-6000
Mfr. Part No.:
47334-0001
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Card Type

MicroSD

Gender

Male

Number of Contacts

8

Number of Rows

1

Pitch

1.1mm

Body Orientation

Right Angle

Mounting Type

Surface Mount

Contact Material

Copper Alloy

Contact Plating

Gold over Nickel

Termination Method

Solder

Housing Material

Liquid Crystal Polymer

Length

14.0mm

Width

1.88mm

Depth

15.2mm

Series Number

47337

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+85°C

Dimensions

14 x 1.88 x 15.2mm

COO (Country of Origin):
CN

Molex microSD TransFlash Memory Card Connector - Series 47334 and 47352


Push-push type microSD TransFlash memory card connectors with ESD protection and grounding support. The design of these push-push memory card connectors include gold-plated bevelled contacts and space saving inside solder tails. These microSD TransFlash memory card connectors have a brake feature which slows down the speed of the card ejection.
The 47352 series push-push memory card connector (stock number 720-6016) has a Detect Switch which recognises card insertion.
