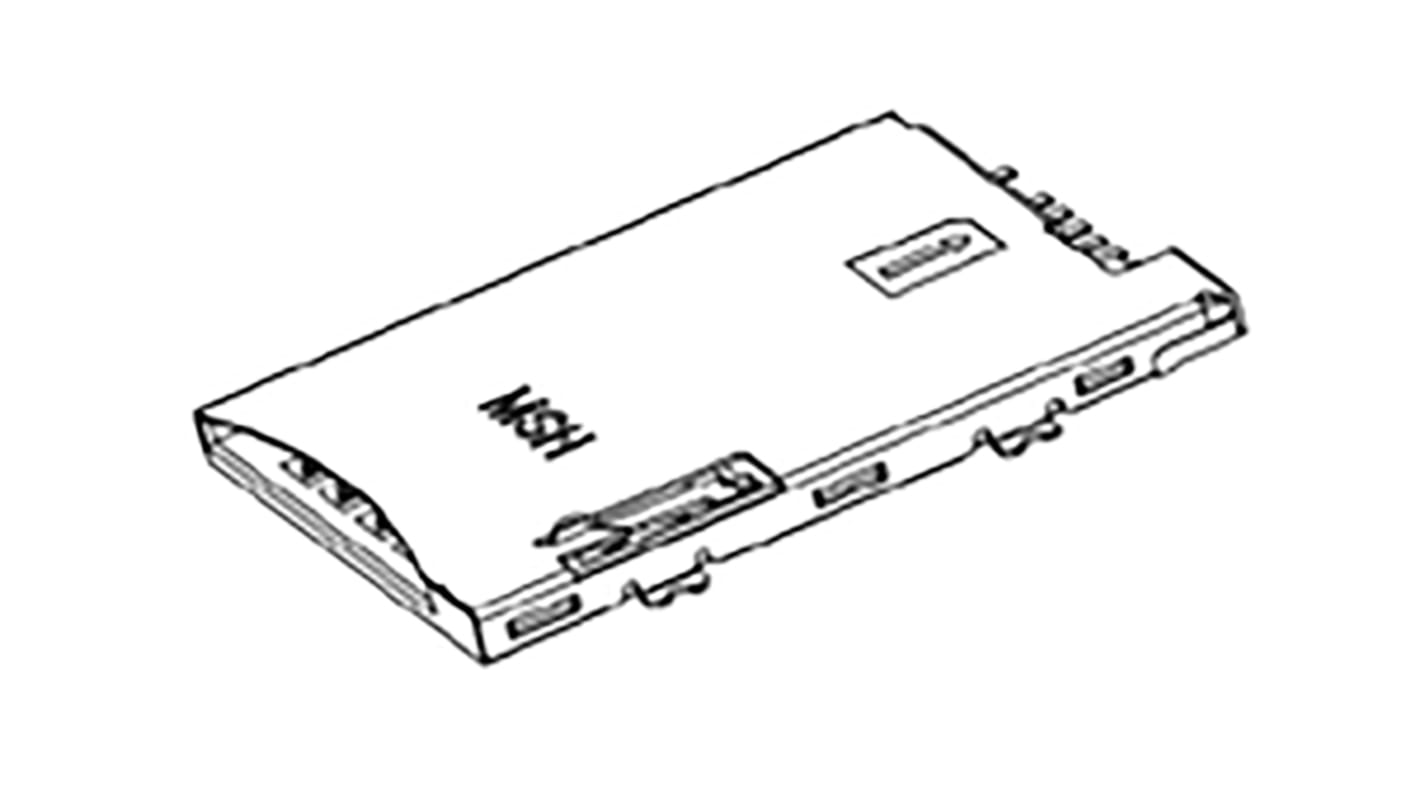

Molex, 47603 8 Way Right Angle Push/Push Memory Card Connector With Solder Termination
- RS Stock No.:
- 178-9468
- Mfr. Part No.:
- 47603-0001
- Brand:
- Molex
Subtotal (1 pack of 5 units)*
£5.58
(exc. VAT)
£6.695
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.116 | £5.58 |
*price indicative
- RS Stock No.:
- 178-9468
- Mfr. Part No.:
- 47603-0001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Card Type | SIM | |
| Gender | Male | |
| Insertion/Removal Method | Push/Push | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 1.27mm | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| Length | 26.3mm | |
| Width | 19.35mm | |
| Depth | 1.9mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Dimensions | 26.3 x 19.35 x 1.9mm | |
| Series Number | 47603 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Card Type SIM | ||
Gender Male | ||
Insertion/Removal Method Push/Push | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 1.27mm | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
Length 26.3mm | ||
Width 19.35mm | ||
Depth 1.9mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Dimensions 26.3 x 19.35 x 1.9mm | ||
Series Number 47603 | ||
- COO (Country of Origin):
- CN
1.27mm Pitch SIM Card Holder with 2 Detect Pins, 8 Circuits, Push-Push Style, Housing Height 1.90mm, without Pegs, Lead-Free
