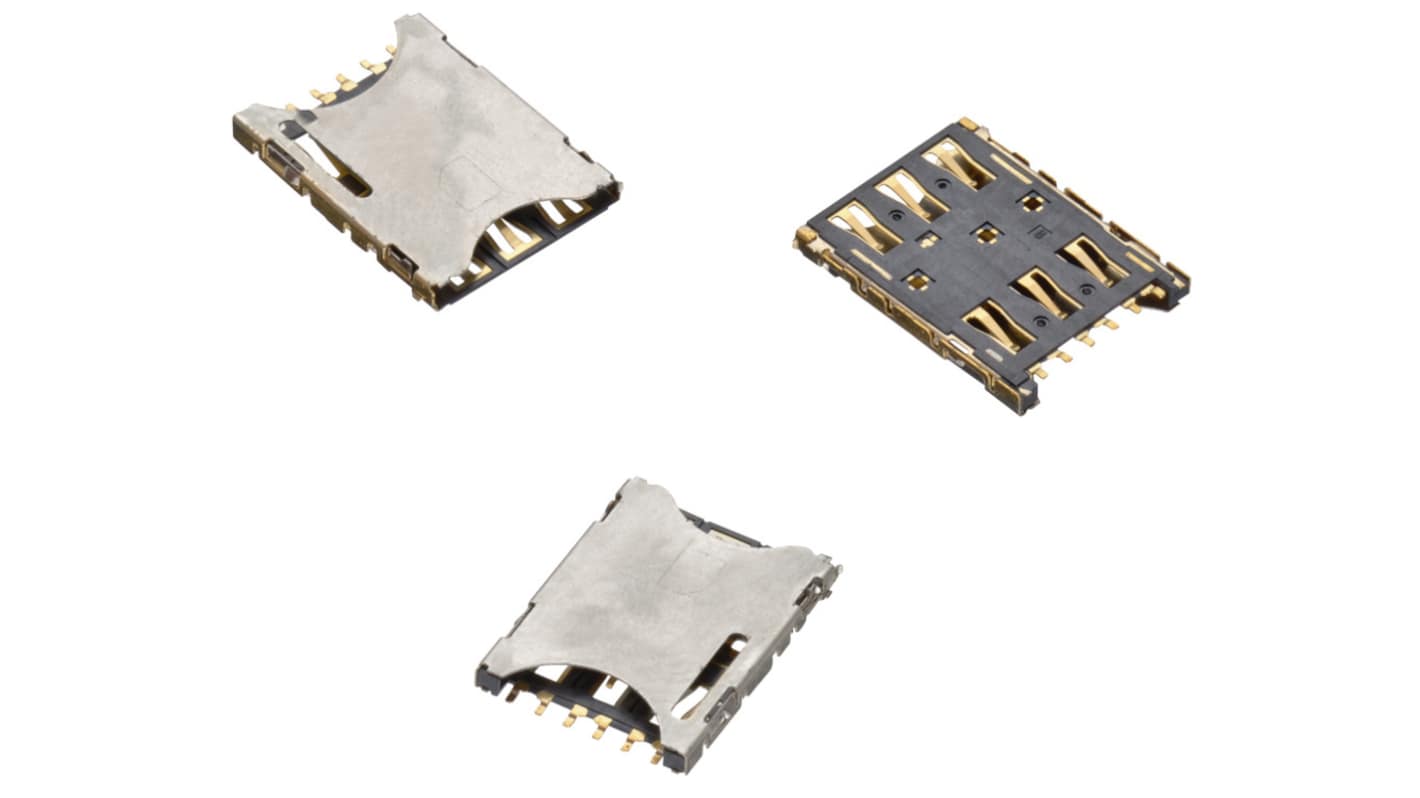

Wurth Elektronik 7 Way Nano Sim Memory Card Connector With Solder Termination
- RS Stock No.:
- 162-1814
- Mfr. Part No.:
- 693043020611
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 162-1814
- Mfr. Part No.:
- 693043020611
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Card Type | Nano Sim | |
| Gender | Female | |
| Number of Contacts | 7 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Mounting Type | Surface Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Method | Solder | |
| Housing Material | Stainless Steel | |
| Length | 9.86mm | |
| Width | 12.5mm | |
| Depth | 1.2mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Dimensions | 9.86 x 12.5 x 1.2mm | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Card Type Nano Sim | ||
Gender Female | ||
Number of Contacts 7 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Method Solder | ||
Housing Material Stainless Steel | ||
Length 9.86mm | ||
Width 12.5mm | ||
Depth 1.2mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Dimensions 9.86 x 12.5 x 1.2mm | ||
The Wurth Elektronik WR-CRD is a 6 pin, SMT mount, push & pull type socket Nano SIM card connector with card detection. It has copper alloy contact material and gold flash contact plating.
RoHS compliant
Halogen free
Operating temperature ranging between -25°C up to +85°C
1 500 mating cycles
Withstanding voltage 500 V (AC)
Halogen free
Operating temperature ranging between -25°C up to +85°C
1 500 mating cycles
Withstanding voltage 500 V (AC)
