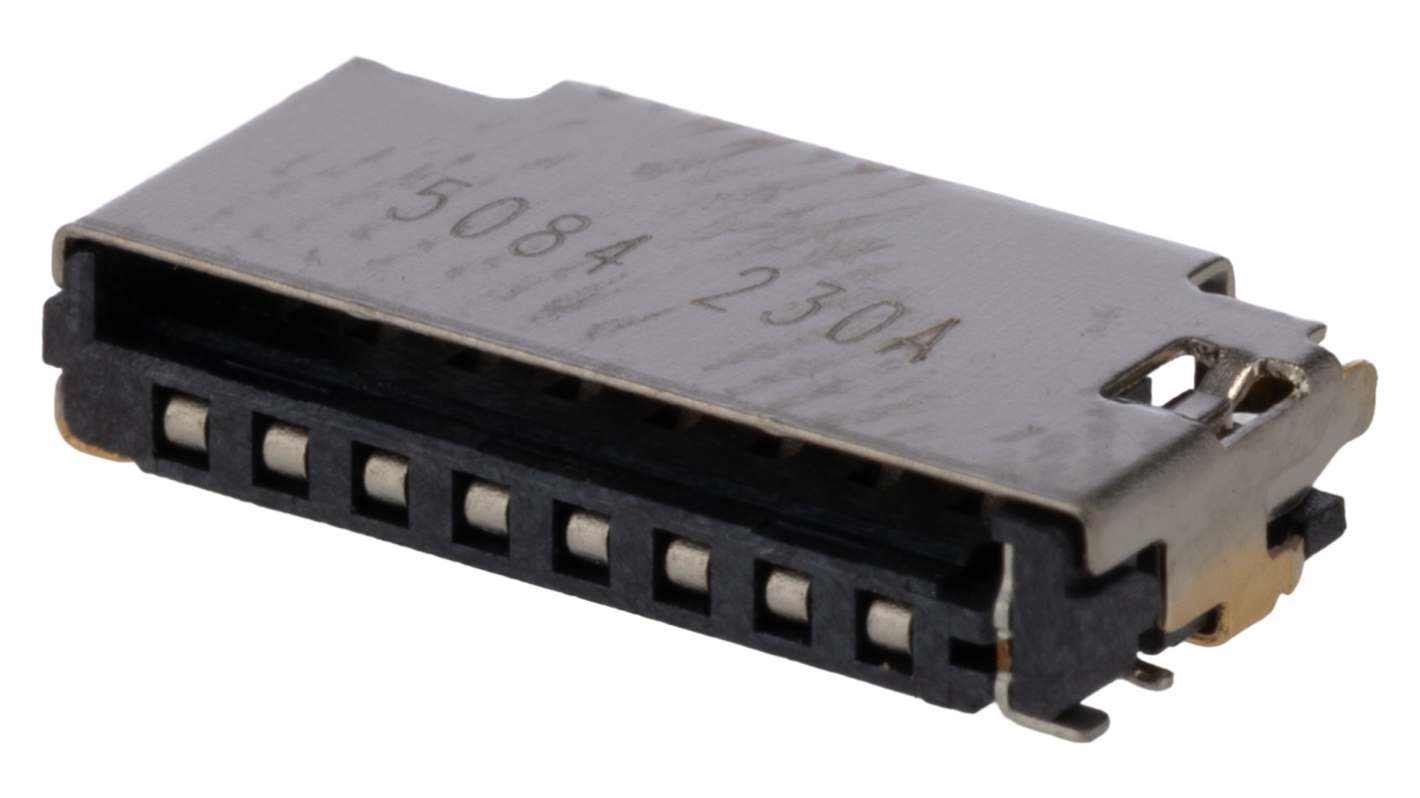

Molex, 47571 8 Way Push/Pull Memory Card Connector With Solder Termination
- RS Stock No.:
- 144-8160
- Mfr. Part No.:
- 475710001
- Brand:
- Molex
Subtotal (1 unit)*
£0.54
(exc. VAT)
£0.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 741 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £0.54 |
*price indicative
- RS Stock No.:
- 144-8160
- Mfr. Part No.:
- 475710001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Gender | Female | |
Insertion/Removal Method | Push/Pull | |
Number of Contacts | 8 | |
Number of Rows | 1 | |
Pitch | 1.1mm | |
Mounting Type | Surface Mount | |
Contact Material | Copper Alloy | |
Contact Plating | Gold over Nickel | |
Termination Method | Solder | |
Housing Material | Steel, Thermoplastic | |
Length | 11.4mm | |
Width | 2.3mm | |
Depth | 5.45mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Series Number | 47571 | |
Dimensions | 11.4 x 2.3 x 5.45mm | |
Select all | ||
---|---|---|
Brand Molex | ||
Gender Female | ||
Insertion/Removal Method Push/Pull | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 1.1mm | ||
Mounting Type Surface Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Housing Material Steel, Thermoplastic | ||
Length 11.4mm | ||
Width 2.3mm | ||
Depth 5.45mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Series Number 47571 | ||
Dimensions 11.4 x 2.3 x 5.45mm | ||
Molex Memory Card Connector, 11.4mm Length, 8 Contacts - 475710001
This memory card connector is a micro SD Card Header designed for efficient usage in various electronic applications. The compact connector features an insertion and removal method that operates on a push/pull basis, facilitating easy card access. With dimensions of 11.4mm in length, 2.3mm in width, and 5.45mm in depth, it is specifically engineered for surface mount use. This device supports microSD cards and incorporates an 8-contact layout, ensuring strong connectivity.
Features & Benefits
• Durable copper alloy contacts enhance performance longevity
• Gold over nickel plating provides superior resistance to corrosion
• Designed for a wide temperature range of -40°C to +85°C
• High durability rating with up to 10,000 mating cycles
• Surface mount style simplifies the assembly process
• Features a card detection switch for improved functionality
• Gold over nickel plating provides superior resistance to corrosion
• Designed for a wide temperature range of -40°C to +85°C
• High durability rating with up to 10,000 mating cycles
• Surface mount style simplifies the assembly process
• Features a card detection switch for improved functionality
Applications
• Used for connecting microSD cards in consumer electronics
• Ideal for requiring compact and reliable memory connections
• Suitable for automated devices needing high-temperature resistant connectors
• Effective in miniaturised circuits where space is limited
• Utilised in electronic devices needing push-pull access for memory cards
• Ideal for requiring compact and reliable memory connections
• Suitable for automated devices needing high-temperature resistant connectors
• Effective in miniaturised circuits where space is limited
• Utilised in electronic devices needing push-pull access for memory cards
How does this connector support reliable connections in my projects?
The connector's gold over nickel plating enhances conductivity while resisting tarnishing, ensuring stable electrical connections essential for data transfer.
What are the benefits of using a surface mount style?
A surface mount style facilitates quicker assembly times and allows for more efficient use of PCB space, which is particularly beneficial in compact electronic designs.
Can this connector withstand harsh environmental conditions?
Yes, it is engineered to operate in a wide
What type of cards does this connector support?
This connector is specifically designed for microSD cards, ensuring an optimal fit and reliable performance in associated devices.
