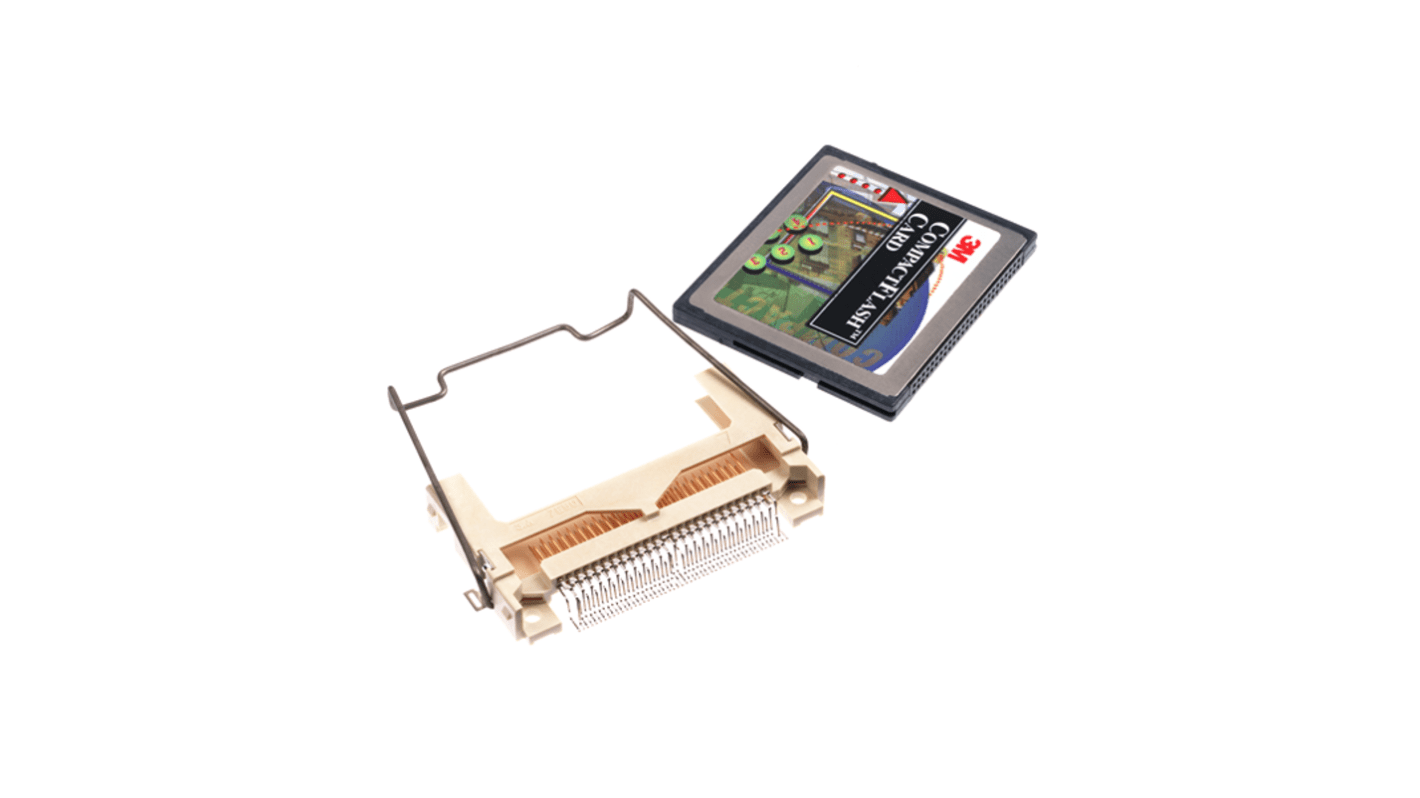

3M, 7E50 Series 50 Way Right Angle Compact Flash CF Card Connector, Solder
- RS Stock No.:
- 455-853
- Distrelec Article No.:
- 304-65-538
- Mfr. Part No.:
- N7E50-7516PG-20-WF
- Brand:
- 3M
Subtotal (1 pack of 600 units)*
£3,051.43
(exc. VAT)
£3,661.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £3,051.43 | £5.086 |
*price indicative
- RS Stock No.:
- 455-853
- Distrelec Article No.:
- 304-65-538
- Mfr. Part No.:
- N7E50-7516PG-20-WF
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | CF Card Connector | |
| Card Type | Compact Flash | |
| Gender | Male | |
| Number of Contacts | 50 | |
| Number of Rows | 1 | |
| Pitch | 0.635mm | |
| Orientation | Right Angle | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polyester | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL File No.: E68080, RoHS, CFA | |
| Series | 7E50 Series | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type CF Card Connector | ||
Card Type Compact Flash | ||
Gender Male | ||
Number of Contacts 50 | ||
Number of Rows 1 | ||
Pitch 0.635mm | ||
Orientation Right Angle | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polyester | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL File No.: E68080, RoHS, CFA | ||
Series 7E50 Series | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
The 3M 50 Position Card Connector is designed for CompactFlash Type I cards, featuring a surface-mount design, right-angle configuration, and gold-plated contacts.
Contact Finish Gold
Contact Finish Thickness Flash
