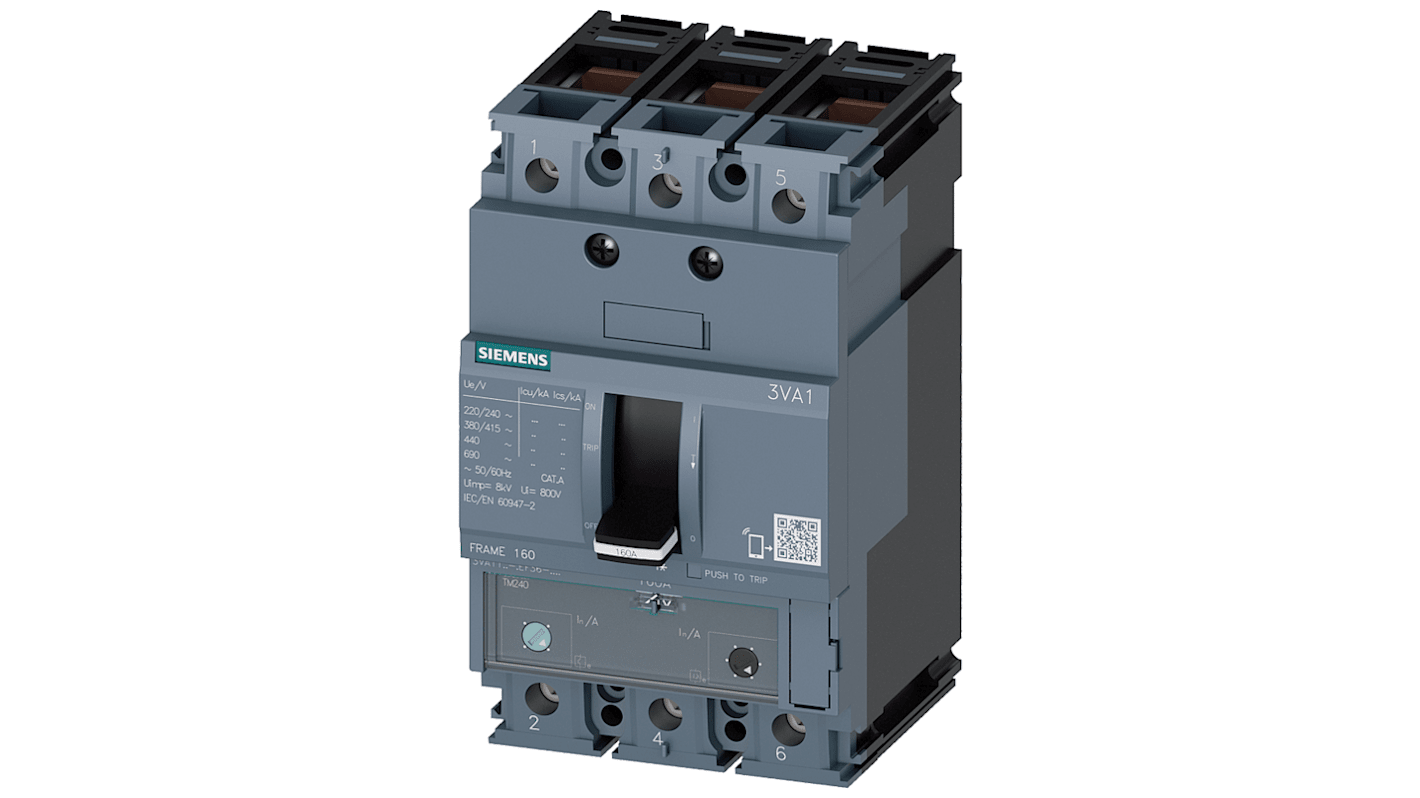

Siemens, SENTRON MCCB 3P 100A, Breaking Capacity 36 kA, Fixed Mount
- RS Stock No.:
- 874-4159
- Mfr. Part No.:
- 3VA1110-4EF36-0AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£263.97
(exc. VAT)
£316.76
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £263.97 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 874-4159
- Mfr. Part No.:
- 3VA1110-4EF36-0AA0
- Brand:
- Siemens
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Range | SENTRON | |
Series | 3VA | |
Number of Poles | 3 | |
Current Rating | 100A | |
Breaking Capacity at Maximum Voltage Rating | 36 kA | |
Rated AC Voltage | 690V | |
Rated DC Voltage | 500V | |
Mounting Style | Fixed | |
Length | 76.2mm | |
Width | 130mm | |
Depth | 88mm | |
Better World Claim | Extended product life, Saves energy | |
Better World Product | Yes | |
Circuit Breaker Type | MCCB | |
Tripping Mechanism | Thermal-Magnetic | |
Reset Actuator Type | Toggle Switch | |
Mounting Hole Diameter | 4.2mm | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Series 3VA | ||
Number of Poles 3 | ||
Current Rating 100A | ||
Breaking Capacity at Maximum Voltage Rating 36 kA | ||
Rated AC Voltage 690V | ||
Rated DC Voltage 500V | ||
Mounting Style Fixed | ||
Length 76.2mm | ||
Width 130mm | ||
Depth 88mm | ||
Better World Claim Extended product life, Saves energy | ||
Better World Product Yes | ||
Circuit Breaker Type MCCB | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Mounting Hole Diameter 4.2mm | ||
Break Time Instantaneous | ||
- COO (Country of Origin):
- CZ
Siemens 3VA Series MCCB, 100A, 36kA Breaking Capacity (at Maximum Voltage Rating) - 3VA1110-4EF36-0AA0
Features & Benefits
• Thermal-magnetic tripping mechanism provides reliable protection
• 36 kA breaking capacity is suitable for high-voltage applications
• Fixed mounting style facilitates straightforward installation and maintenance
• Appropriate for both commercial and industrial settings
• Functions effectively across various temperatures, ensuring versatility
Applications
• Ideal for scenarios requiring overload and short-circuit protection
• Employed in automation and machinery control panels
• Improves electrical safety in commercial properties
What is the maximum short-circuit current it can handle?
Is this suitable for DC operation?
Can it be installed in high-temperature environments?
What is the weight of this product?
How long is the mechanical service life?
