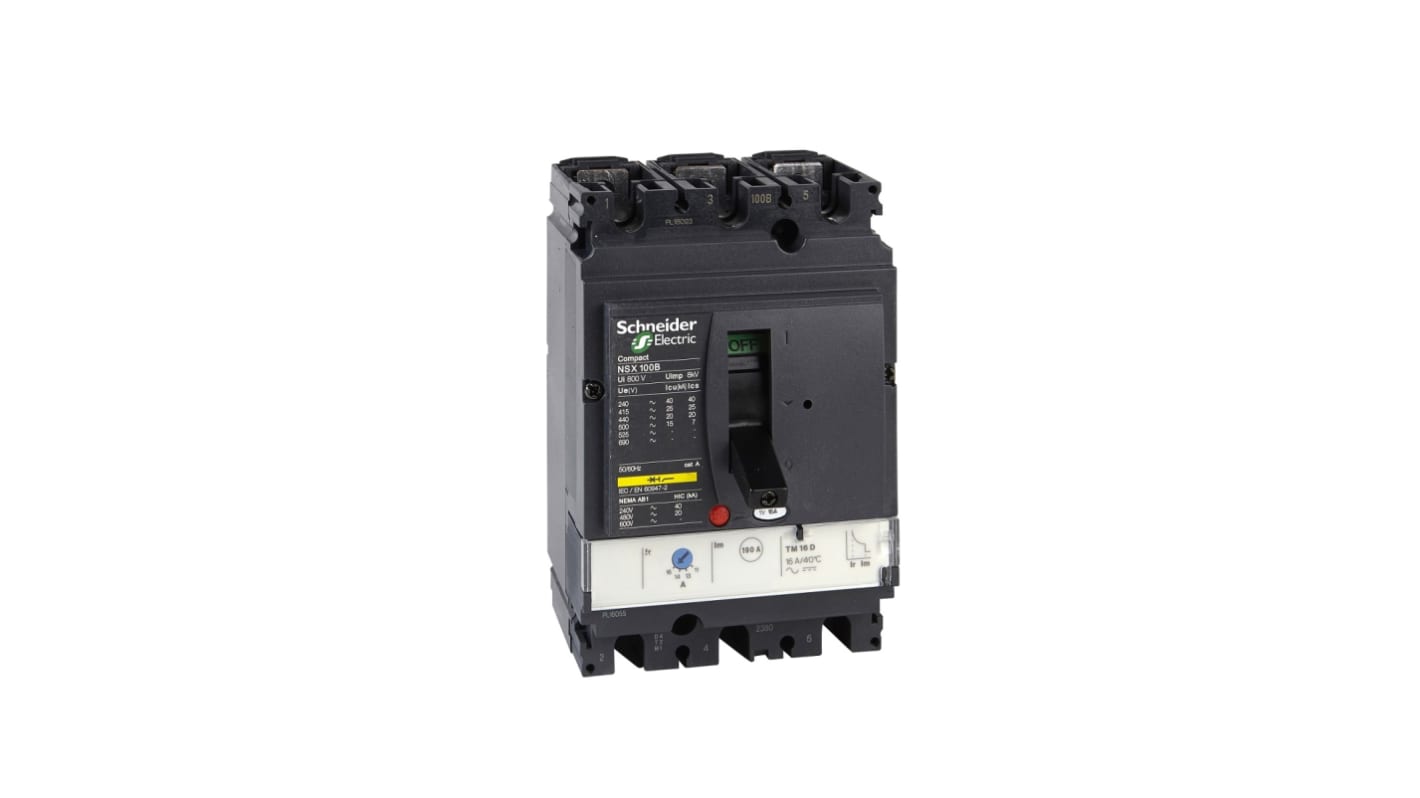

Schneider Electric, NSX Range MCCB 3P 100A, Breaking Capacity 85 kA, Fixed Mount

View all MCCBs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Schneider Electric, ComPacT New Generation Circuit breaker 3P 100A, Breaking Capacity 36 kA, Fixed Mount
RS Stock No.
254-6281

Each

£221.33

(exc. VAT)

£265.60

(inc. VAT)

RS Stock No.:
849-3964
Mfr. Part No.:
LV429632
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Range

NSX Range

Series

LV4

Number of Poles

3

Current Rating

100A

Breaking Capacity at Maximum Voltage Rating

85 kA

Rated AC Voltage

690V

Mounting Style

Fixed

Length

105mm

Width

161mm

Depth

86mm

Better World Product

Yes

Better World Verification

Green Premium

Tripping Mechanism

Thermal-Magnetic

Application

Distribution

RoHS Status: Exempt

COO (Country of Origin):
FR

Schneider Electric LV4 Series MCCB, 63A Current Rating, 3 Pole MCCB - LV429632


This is an MCCB designed for effective circuit protection within distribution applications. The device offers a current rating of 63A and operates at a rated voltage of 690V AC. Its dimensions of 105mm in length, 161mm in width, and 86mm in depth ensure it fits easily into standard electrical enclosures.

Features & Benefits


• Utilises a thermal-magnetic mechanism for reliable operation
• Offers short circuit protection to enhance device safety
• Suitable for isolation in compliance with EN/IEC standards
• Fixed mounting style simplifies installation processes
• High breaking capacity of up to 10kA under specified conditions
• Mechanical lifespan of 50,000 cycles ensures long-lasting performance

Applications


• Used in industrial environments for effective electrical distribution
• Ideal for integration into distribution panel systems
• Employed in requiring stringent short circuit protection
• Commonly installed in energy management systems

What current can this device handle effectively?


It operates at a rated current of 63A, designed to function smoothly at this level during regular use.

How does this provide protection against faults?


Integration of a thermal-magnetic trip unit helps detect both overload and short-circuit conditions, activating protection measures rapidly.

What are its environmental operational limits?


It can operate in ambient temperatures ranging from -25°C to 70°C, accommodating various industrial settings.

How does the mounting style benefit installation?


The fixed mounting style ensures structural stability, making the installation process straightforward and secure.

What is the importance of the breaking capacity?


A high breaking capacity of up to 10kA allows for effective interruption of fault currents, reducing the risk of equipment damage.
