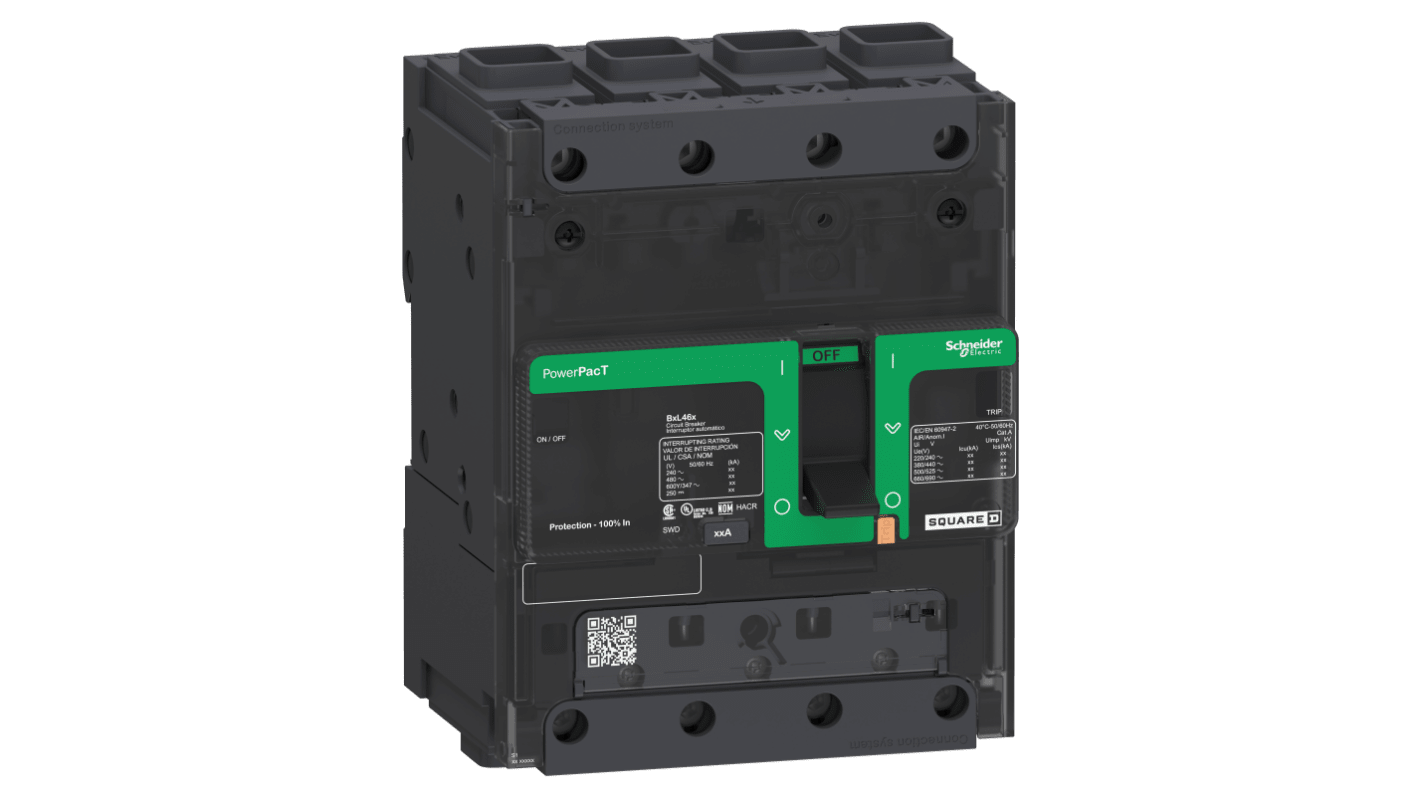

Schneider Electric, PowerPact, NSX100 Molded Case Circuit Breaker 4-Pole 50 A, Breaking Capacity 18 kA, Clip-on
- RS Stock No.:
- 288-7140
- Mfr. Part No.:
- BGF46050
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£351.05
(exc. VAT)
£421.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £351.05 |
*price indicative
- RS Stock No.:
- 288-7140
- Mfr. Part No.:
- BGF46050
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | PowerPact | |
| Series | NSX100 | |
| Number of Poles | 4 | |
| Current Rating | 50 A | |
| Breaking Capacity | 18kA | |
| Mount Type | Clip-on | |
| Height | 137mm | |
| Width | 108 mm | |
| Depth | 80mm | |
| Standards/Approvals | CENMX J-266NEMA AB1EN IEC 60947-5-1CSA C22.2 No 5UL 489GB 14048.2EN IEC 60947-2 | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range PowerPact | ||
Series NSX100 | ||
Number of Poles 4 | ||
Current Rating 50 A | ||
Breaking Capacity 18kA | ||
Mount Type Clip-on | ||
Height 137mm | ||
Width 108 mm | ||
Depth 80mm | ||
Standards/Approvals CENMX J-266NEMA AB1EN IEC 60947-5-1CSA C22.2 No 5UL 489GB 14048.2EN IEC 60947-2 | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- MX
The Schneider Electric Circuit breaker is a high quality 4-pole 50A device suitable for distribution applications. With various safety features and high breaking capacity, it ensures reliable performance in diverse electrical setups.
Thermal Magnetic trip unit technology
Suitable for HACR rated applications
Compact and lightweight design
Compliant with CE NEMA and UL
Environmentally friendly with RoHS compliance
PVC free materials for sustainable use
