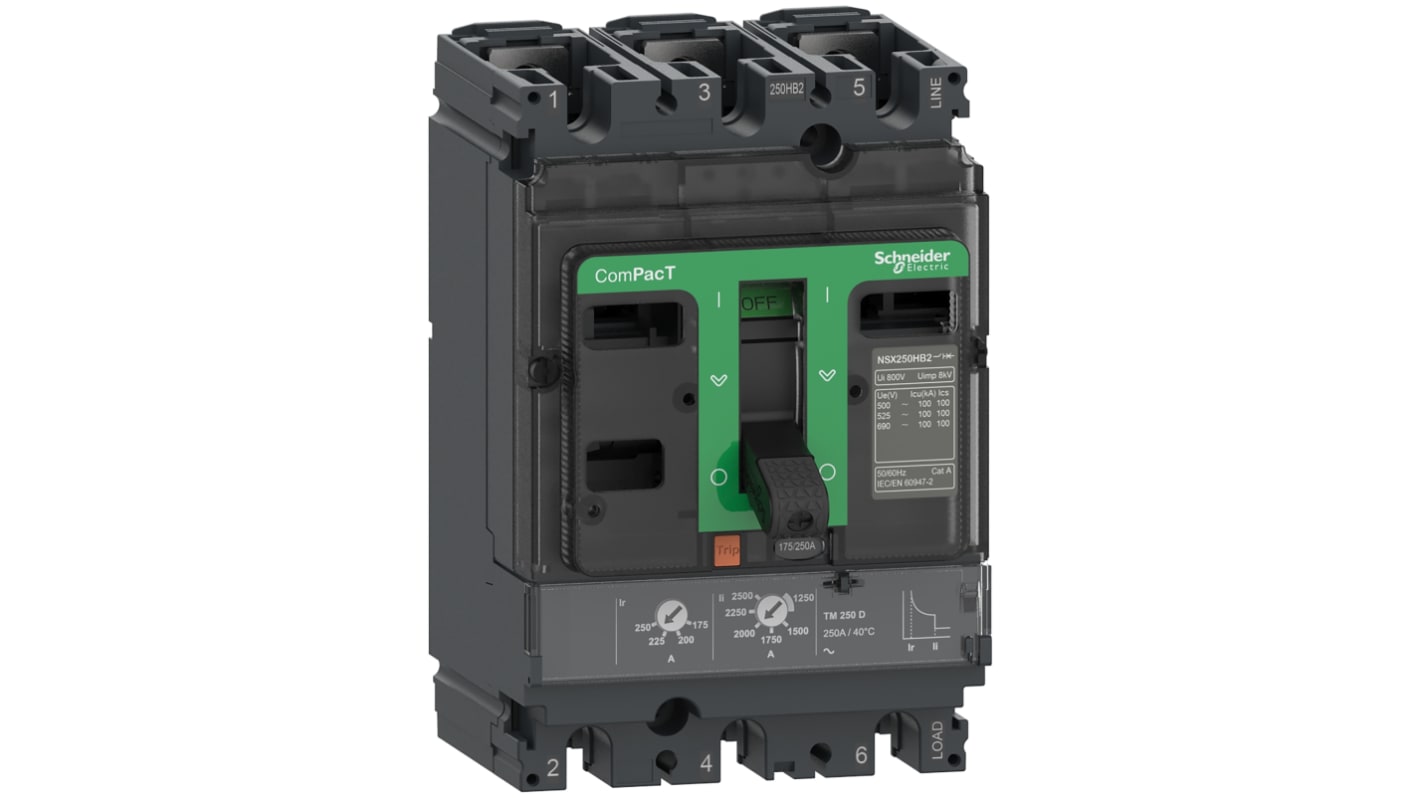

Schneider Electric, ComPacT New Generation Circuit breaker 3P 250A, Breaking Capacity 36 kA, Fixed Mount
- RS Stock No.:
- 254-6357
- Mfr. Part No.:
- C25F3TM250
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,452.16
(exc. VAT)
£1,742.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,452.16 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 254-6357
- Mfr. Part No.:
- C25F3TM250
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Range | ComPacT New Generation | |
Series | C25F | |
Number of Poles | 3 | |
Current Rating | 250A | |
Breaking Capacity at Maximum Voltage Rating | 36 kA | |
Rated AC Voltage | 690V | |
Mounting Style | Fixed | |
Width | 105mm | |
Depth | 86mm | |
Better World Verification | Green Premium | |
Better World Product | Yes | |
Tripping Mechanism | Thermal Magnetic | |
Application | Distribution | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Range ComPacT New Generation | ||
Series C25F | ||
Number of Poles 3 | ||
Current Rating 250A | ||
Breaking Capacity at Maximum Voltage Rating 36 kA | ||
Rated AC Voltage 690V | ||
Mounting Style Fixed | ||
Width 105mm | ||
Depth 86mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Tripping Mechanism Thermal Magnetic | ||
Application Distribution | ||
- COO (Country of Origin):
- CN
Schneider Electric C25F Series Circuit breaker, 3 Poles, 250A Current Rating - C25F3TM250
This circuit breaker is an essential component within electrical distribution systems, specifically designed to provide protection and control over electrical circuits. The compact design allows for easy installation in various environments, with dimensions of 105mm in width and 86mm in depth. With a current rating of 250A, this device offers thermal magnetic protection and conforms to stringent standards, ensuring safety and performance.
Features & Benefits
• High breaking capacity of 36kA for safety
• Fixed mounting style ensures stable installation
• 3-pole design provides circuit protection
• Thermal magnetic operation for dual protection functions
• Rated operational voltage of 690V enhances application versatility
• Mechanical durability of 20000 cycles ensures longevity |
• Fixed mounting style ensures stable installation
• 3-pole design provides circuit protection
• Thermal magnetic operation for dual protection functions
• Rated operational voltage of 690V enhances application versatility
• Mechanical durability of 20000 cycles ensures longevity |
Applications
• Used in electrical panels for load distribution
• Suitable for industrial machinery and automation systems
• Ideal for commercial building electrical systems
• Utilised in HVAC equipment for enhanced protection
• Applicable in renewable energy systems for safe operations |
• Suitable for industrial machinery and automation systems
• Ideal for commercial building electrical systems
• Utilised in HVAC equipment for enhanced protection
• Applicable in renewable energy systems for safe operations |
Can it handle multiple types of electrical loads?
Yes, it is suitable for various AC network types.
Will it provide isolation in case of faults?
Yes, it conforms to EN/IEC 60947-2 for isolation.
Is it adaptable for both horisontal and vertical mounting?
Yes, it can be installed in both orientations.
Can the long-time protection delay be adjusted?
Yes, it has an adjustable long-time protection delay range.
Is it designed for operation in extreme temperatures?
Yes, it operates effectively in temperatures from -25°C to 70°C.
